100T220 high powerful driver< back
- Specifications
- Feature
- Application
- Download
-

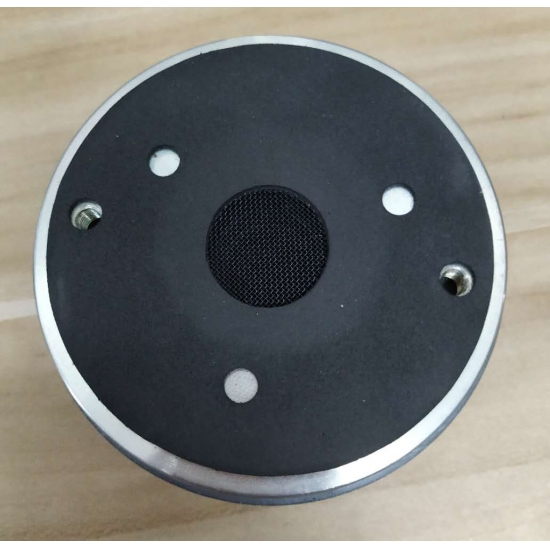

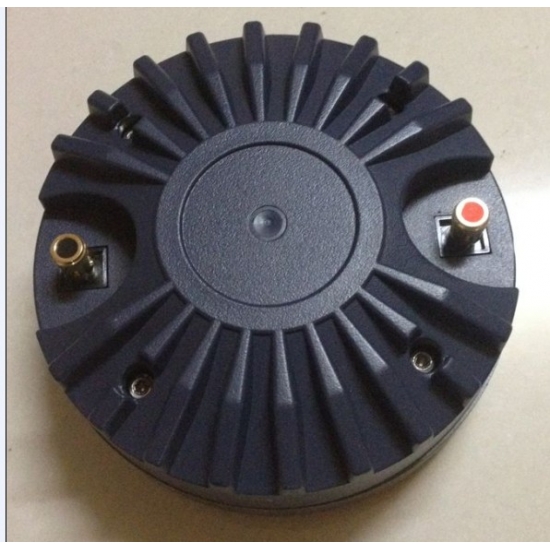

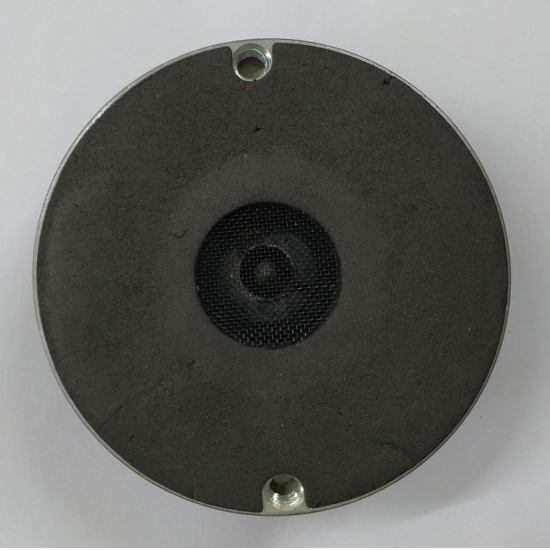

high quality compression driver
fuit for PA speaker and line array speaker
Model DE1000 75TN800 75TN801S 75TE820 44TN400 44TN350 44TE251 Inch 4" neo 3" neo 3" neo 3" ferrite 1.7" neo 1.7" neo 1.7" ferrite Rated power (AES) HF: 140W HF: 110W HF: 110W HF: 110W HF: 60W HF: 60W HF: 60W Program power (AES) HF: 280W HF: 220W HF: 220W HF: 220W HF: 120W HF: 120W HF: 120W Voice coil diameter 100mm (4 inch) 75mm (3 inch) 75mm (3 inch) 75mm (3 inch) 44mm (1.7 inch) 44mm (1.7 inch) 44mm (1.7 inch) Diaphragm material Titanium Titanium / Polyimide Titanium / Polyimide Titanium Titanium Titanium / Polyimide Polyimide Magnet material Neodymium ring Neodymium ring Neodymium ring Ceramic Neodymium ring Neodymium ring Ceramic Sensitivity/Nominal 109dB (±1dB) 108dB (±1dB) 108dB (±1dB) 107dB (±1dB) 106dB (±2dB) 106dB (±1dB) 108dB (±1dB) Standard impedance 8 OHM 8 OHM 8 OHM 8 OHM 8 OHM 8 OHM 8 OHM Throat diameter 38mm (1.5 in) 36mm (1.4 in) 36mm (1.4 in) 36mm (1.4 in) 25mm (1 in) 25mm (1 in) 25mm (1 in) Frequency range 0.5-20KHz 0.5-18kHz 0.5-18kHz 1-18kHz 1.2-18kHz 1.2-18kHz 1-18kHz Recommended crossover 1kHz 1.2kHz 1.2kHz 1kHz 1.5kHz 1.5kHz 1.6kHz Net weight / gross weight 3.4 kg 2.3kg / 3.5kg 2.3kg / 3.5kg 4kg / 4.6kg 0.8kg / 1kg 0.8kg / 1.2kg 2.1kg shipping box / mm 300*300*180 300*300*180 190*190*60 230*230*160 230*230*160 160*160*40
Related Tags : high ferrite woofer unit ferrite speaker neodymium powerful line array speaker
Previous :15inch high quality neodynium woofer
