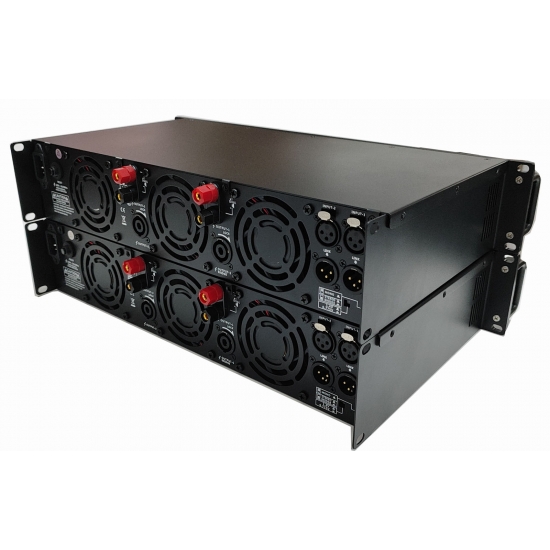

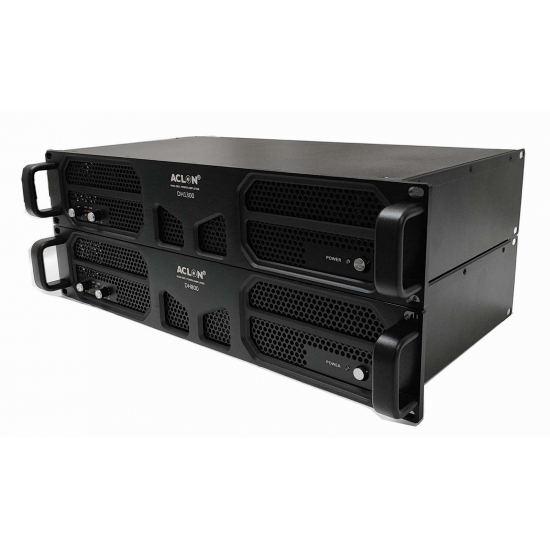

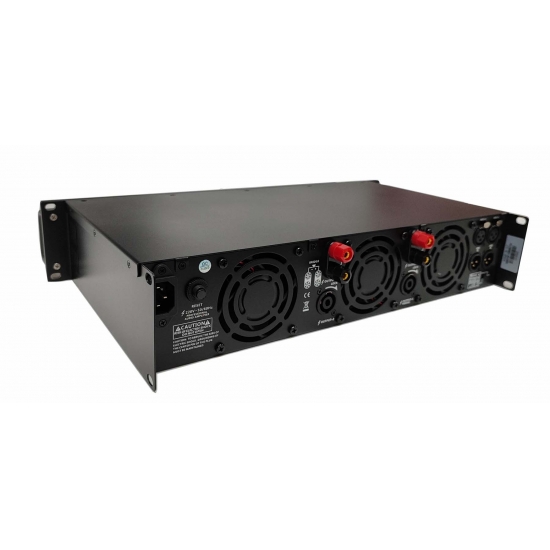

  • DH1300 1350W Two Channel Lightweight Switch Power Amplifier

    DH1300 is a professional two-channel lightweight switch power amplifier engineered for live sound reinforcement, touring productions, and fixed installation projects. Its compact design delivers high output while reducing rack weight and transportation costs.

    With efficient switching power technology and reliable protection circuits, the amplifier provides stable performance for full-range speakers, subwoofers, and line array systems in demanding professional applications.

    ACLON offers OEM and ODM manufacturing services, including custom branding, front panel design, logo printing, packaging, and technical customization for distributors and audio equipment brands worldwide.


    Model DH600 DH800 DH1000 DH1300 DH1500
    8ΩStereo Power(RMS) 2X 600W 2X 800W 2X 1000W 2X 1300W 2X 1500W
    4ΩStereo Power(RMS) 2X 900W 2X 1200W 2X 1500W 2X 2000W 2X 2200W
    8 OHM Bridge 1800W 2400W 3000W 4000W 4200W
    THD 20 Hz - 20 kHz for 1 W <0.04%
    Signal-to-Noise Ratio >105 dBA
    Channel separation  >75 dB
    Input Sensitivity 0.775V, 1.4 V
    Model Switch stereo,  parallel /mono
    Input Connectors (per channel) 3-pin XLR, electronically balanced
    Damping factor >200
    Output Connectors (per channel) NL4 -Speakon
    Class circuitry Class H  (new tech step circuitry)
    Tour Class Protection short circuit, open circuit, direct voltage, high temperature, radio-frequency, ultralow frequency
    Operating voltage 110V / 230V / 220V, 50/60Hz (factory configured)
    Input impedance (unbalanced) 20 k Ohm (10k Ohm)
    Dimensions (H×W×D) 2U: 88×488×330mm
    Net weight (kg) 8 8 8 8 8
    Gross weight (kg) 10.5 11 11 11 11


  • • 1350W high power output at 8Ω stereo

    • Two-channel lightweight switch power design

    • Compact 2U rack-mount chassis

    • High efficiency and low power consumption

    • Stable operation for touring and fixed installations

    • Built-in protection against short circuit, overload, overheat, over-voltage and under-voltage

    • OEM and ODM customization available

  • • Professional PA Systems

    • Live Concert Sound

    • Touring Audio Systems

    • Nightclubs and Bars

    • Churches and Auditoriums

    • Conference Venues

    • Rental Sound Companies

    • Fixed Installation Projects

  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • User Manual
    • OEM/ODM Catalogue

    Contact us to receive the latest technical documents and product information.
  • DH1300 1350W Two Channel Lightweight Switch Power Amplifier


    Professional OEM/ODM Audio Equipment Manufacturer


    Designed for touring sound, professional PA systems, and fixed installations with reliable performance and lightweight construction.

Related Tags : 1350W two channel power amplifier 2 channel professional amplifier lightweight switch amplifier

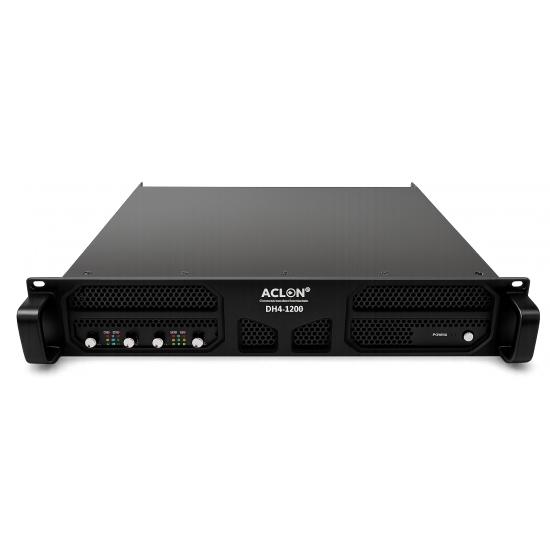

Previous :DH4-1200 1200W Four Channel Digital Switch Power Amplifier
