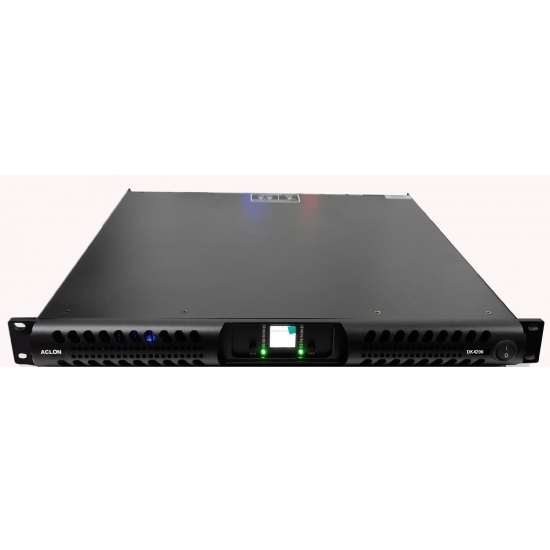

DK4200 16800W Two Channel Subwoofer Digital Amplifier
The DK4200 is a high-power two-channel digital amplifier specifically developed for professional subwoofer applications. It delivers exceptional low-frequency performance and reliable output for demanding touring and installation projects.
Its advanced digital amplifier architecture provides high efficiency, stable operation, and excellent power delivery for large-scale sound reinforcement systems, concerts, clubs, and rental companies.
ACLON offers OEM and ODM manufacturing services including custom logos, front panels, software configuration, packaging, and private-label production for professional audio brands worldwide.
Model 8Ω Stereo 4Ω Stereo 2Ω Stereo 8Ω Bridge 4Ω Bridge DK410 4×1000W 4×1600W 4×2200W 2×3200W 2×4400W DK416 4×1600W 4×2600W 4×3500W 2×5200W 2×7000W DK420 4×2000W 4×3600W 4×4500W 2×7200W 2×9000W DK430 4×3000W 4×5400W 4×6550W 2×9750W 2×13100W
DK2000 2 × 2000W 2 × 3200W 2 × 4240W 1 × 6400W 1 × 8000W DK3000 2 × 3000W 2 × 4800W 2 × 6350W 1 × 9600W 1 × 12000W DK3500 2 × 3500W 2 × 5600W 2 × 7400W 1 × 11200W 1 × 14000W DK4200 2 × 4200W 2 × 6720W 2 × 8890W 1 × 13440W 1 × 16800W Item Specification Amplifier Topology Class D Channels 4 Channels Power Supply Active PFC Switching Power Supply AC Input Voltage 100-240V AC ±10%, 50/60Hz Operating Voltage Range 90-270V AC Gain Settings 32dB / 35dB / 38dB / 41dB Frequency Response 20Hz-20kHz (±0.5dB) Signal-to-Noise Ratio >110dB (A-weighted) THD+N <0.05% Damping Factor >5000 Maximum Output Voltage 195V Maximum Output Current 85A Cooling System Intelligent Tunnel Cooling Input Connectors Balanced XLR Output Connectors SPEAKON Operating Modes Stereo / Bridge Operating Temperature 0°C to +45°C Dimensions (W × H × D) 483 × 44 × 470 mm Net Weight 12kg -
• 16800W high-power digital amplifier• Two-channel professional subwoofer design• Optimized for low-frequency applications• High-efficiency switching technology• Stable performance for continuous operation• Protection against overheating, overload, short circuit, and DC faults• OEM and ODM customization supported
-
• Large Subwoofer Systems
• Concert Sound Reinforcement
• Touring Audio Systems
• Stadium and Arena Installations
• Nightclubs and Music Venues
• Rental Sound Companies
• Professional PA Systems
• Outdoor Events
-
Download Available:
• Product Datasheet (PDF)• Technical Specifications• User Manual• OEM/ODM Product Catalogue
Please contact us to receive the latest documentation and technical information. -
DK4200 16800W Two Channel Subwoofer Digital Amplifier
Professional OEM/ODM Audio Equipment Manufacturer
Designed for high-performance subwoofer systems, touring applications, and large-scale sound reinforcement with reliable power output and efficient digital technology.
