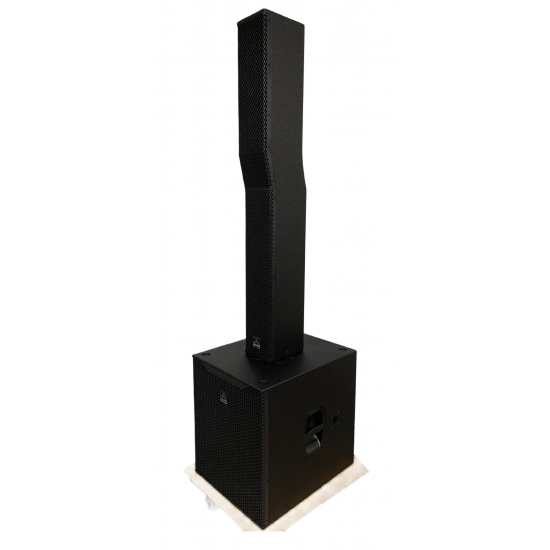

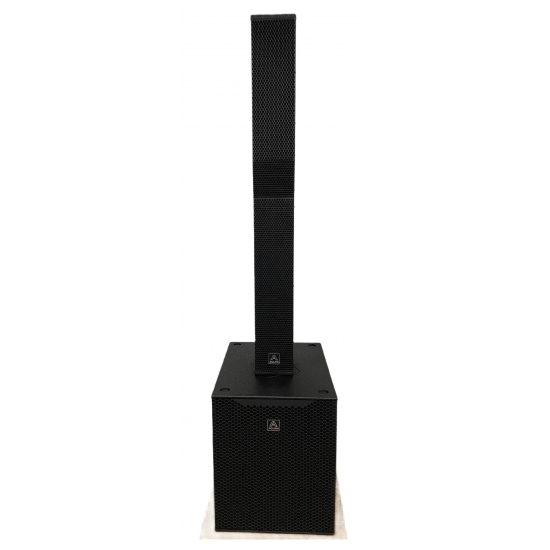

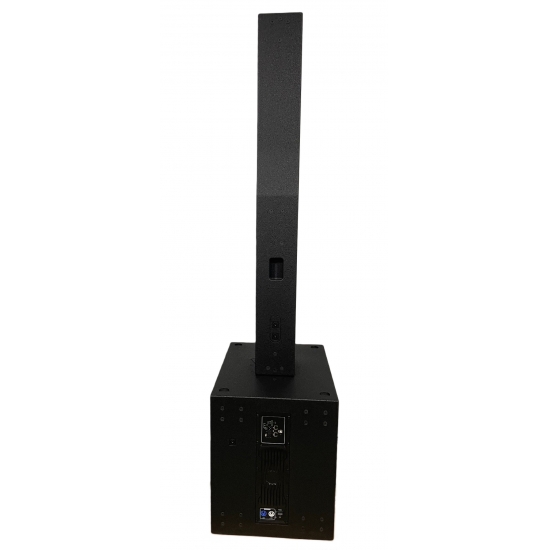

CL66 6×6 Inch Column Array Speaker
The CL66 is a professional column array speaker designed to deliver clear vocals, balanced sound coverage, and elegant appearance for commercial and professional audio applications.
Featuring six high-performance 6-inch drivers in a slim column enclosure, the CL66 provides excellent speech intelligibility and wide horizontal coverage while maintaining a compact footprint.
The system is suitable for churches, conference venues, hotels, banquet halls, wedding events, corporate presentations, and fixed installation projects where both sound quality and aesthetics are important.
ACLON provides OEM and ODM manufacturing services including private labeling, cabinet color customization, logo printing, packaging design, and complete professional audio solutions for global distributors and brands.

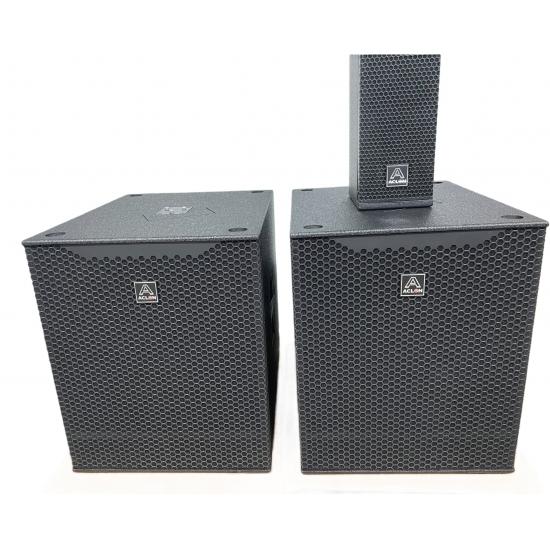

Parameter CL65 CL66 CL618S CL618SA System Type Passive Column Array Passive Column Array Passive Subwoofer Active Subwoofer LF Drivers 4 × 6" Ferrite 6 × 6" Ferrite 1 × 18" Ferrite 1 × 18" Ferrite HF Driver 1 × 1.7" Neodymium 2 × 1.7" Neodymium — — RMS Power 650W 1000W 800W 800W Program Power 1300W 2000W 1600W 1600W Max SPL 136dB 137dB 139dB 139dB Frequency Response 80Hz – 20kHz 80Hz – 20kHz 40Hz – 250Hz 40Hz – 250Hz Nominal Impedance 4Ω 4Ω 8Ω 4Ω Input Connectors 2 × NL4 2 × NL4 2 × NL4 2 × NL4 & XLR link Dimensions (H × W × D) 995 × 330 × 262 mm 1450 × 230 × 172 mm 630 × 500 × 600 mm 630 × 500 × 600 mm Net Weight 18 kg 28 kg 39 kg 42 kg
Related Products
• CL618SA 18 Inch Active Subwoofer
• CO15 Coaxial Monitor Speaker
• SM15 Full Range Loudspeaker
• RS6 Mini Line Array Speaker
• VX12A Active Line Array SpeakerAvailable in passive or active system configurations for different installation and rental applications.
-
• Six 6-inch high-performance drivers• Slim column array speaker design• Excellent speech intelligibility• Wide and even sound coverage• Compact and elegant appearance• Suitable for portable and installed systems• OEM and ODM customization available
-
• Churches and Worship Spaces• Conference Rooms• Hotels and Banquet Halls• Wedding Events• Corporate Presentations• Restaurants and Retail Spaces• Portable PA Systems• Fixed Installation Projects
-
Download Available:
• Product Datasheet (PDF)• Technical Specifications• User Manual• OEM/ODM Product Catalogue
Please contact us for the latest documentation and customization information. -
CL66 6×6 Inch Column Array Speaker
Professional OEM/ODM Column Speaker Manufacturer
Designed for churches, hotels, conference venues, weddings, and commercial audio applications with clear sound reproduction and elegant design.
Related Tags : 6 inch column speaker portable column PA system OEM column speaker manufacturer
