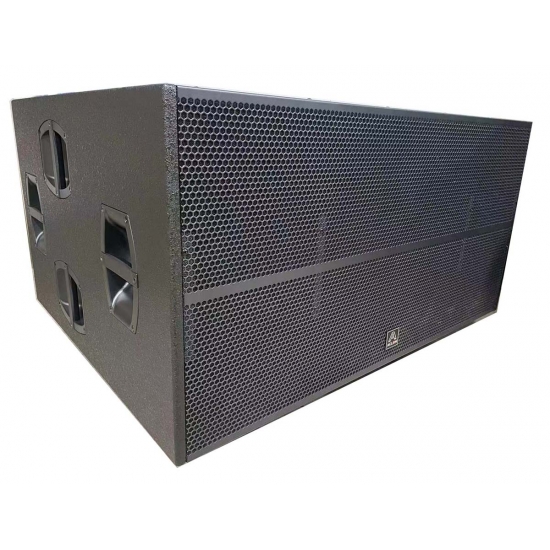

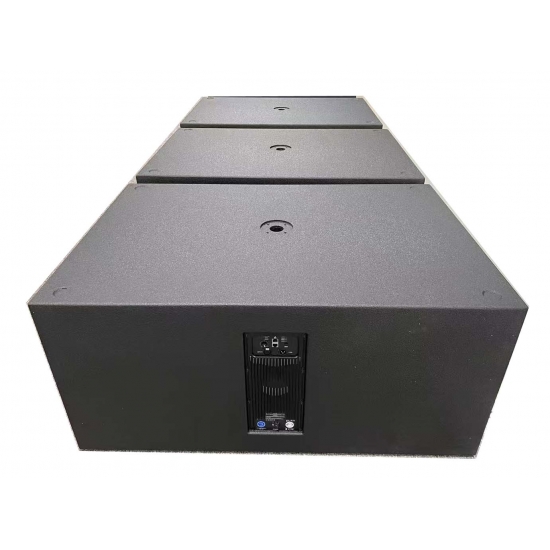

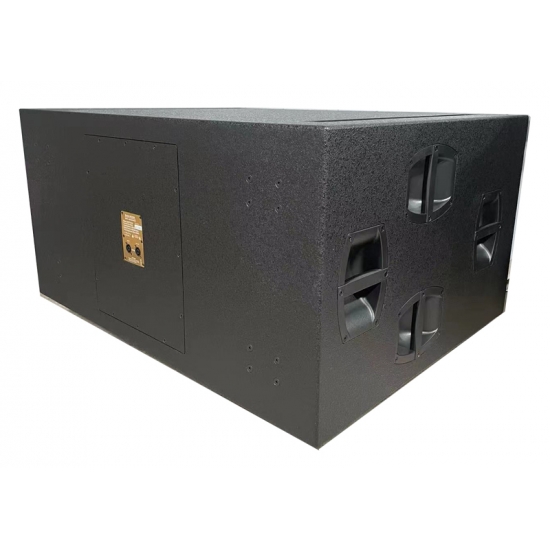

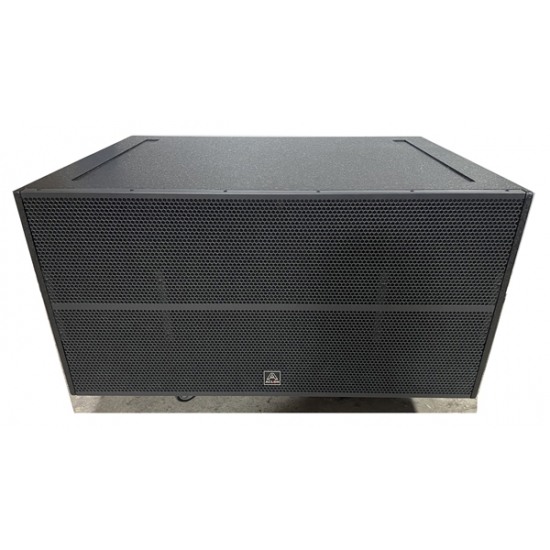

HD228S Dual 18-Inch Neodymium Touring Subwoofer
High-Output Professional Subwoofer for Touring and PA Systems
The ACLON HD228S is a high-output dual 18-inch neodymium touring subwoofer designed for professional PA systems, live sound reinforcement and demanding touring applications. Equipped with two 18-inch neodymium low-frequency drivers, the HD228S combines powerful bass performance with a lighter enclosure configuration for professional sound systems where output capability and system mobility are both important.
With 2500W RMS power, 5000W peak power and up to 139 dB maximum SPL, the HD228S delivers high-output low-frequency reinforcement for concerts, festivals, rental systems and large-scale events. Its 30 Hz–250 Hz frequency response provides deep and controlled bass reproduction, while the 160 Hz crossover point allows flexible integration with professional line array and point-source loudspeaker systems.
The neodymium driver configuration helps reduce system weight compared with conventional ferrite designs. With a net weight of 115 kg, the HD228S is suitable for professional touring and rental applications where transport and system handling are important considerations.
Key Features
2 × 18-inch neodymium LF drivers for high-output low-frequency reproduction
2500W RMS / 5000W peak power for professional PA applications
Up to 139 dB maximum SPL for large-scale sound reinforcement
30 Hz–250 Hz frequency response for deep and powerful bass
160 Hz crossover point for flexible system integration
4 Ω input impedance for professional amplifier matching
Neodymium driver configuration for reduced system weight
115 kg net weight for a high-output dual 18-inch touring subwoofer
Rugged professional cabinet design for touring and event applications
Technical Specifications
Parameter HD228S LF Woofer Unit 2 × 18" Neodymium RMS Power 2500 W Peak Power 5000 W Max. Peak SPL 139 dB Frequency Response (±3 dB) 30 Hz–250 Hz Crossover Point 160 Hz Input Impedance 4 Ω Dimensions (W × H × D) 709 × 1109 × 700 mm Net Weight 115 kg
Typical Applications
The HD228S is designed for:
Touring PA systems
Live concerts and festivals
Outdoor events and road shows
Professional PA rental companies
Large-format sound reinforcement
Churches and worship venues
Theaters and performance venues
Clubs and entertainment venues
Line array and point-source PA systems
Professional audio system projects
Professional Audio OEM/ODM Support
ACLON provides professional audio OEM/ODM manufacturing for loudspeakers, subwoofers and complete PA system products. The HD228S can be supplied for professional audio brands, distributors, rental companies and system integrators requiring a high-output dual 18-inch subwoofer platform.
Depending on project requirements and production quantities, customization can include cabinet finish, grille, logo, model designation, packaging and other product details.
The HD228S can be integrated into touring PA systems, line array systems, rental fleets and large-scale sound reinforcement projects, providing a high-output and relatively lightweight dual 18-inch subwoofer solution.
-
Key Features
2 × 18-inch neodymium LF drivers for high-output low-frequency reproduction
2500W RMS / 5000W peak power for professional PA applications
Up to 139 dB maximum SPL for large-scale sound reinforcement
30 Hz–250 Hz frequency response for deep and powerful bass
160 Hz crossover point for flexible system integration
4 Ω input impedance for professional amplifier matching
Neodymium driver configuration for reduced system weight
115 kg net weight for a high-output dual 18-inch touring subwoofer
Rugged professional cabinet design for touring and event applications
