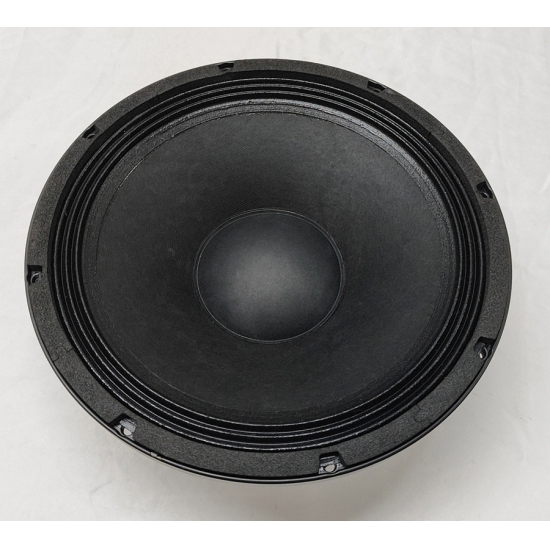

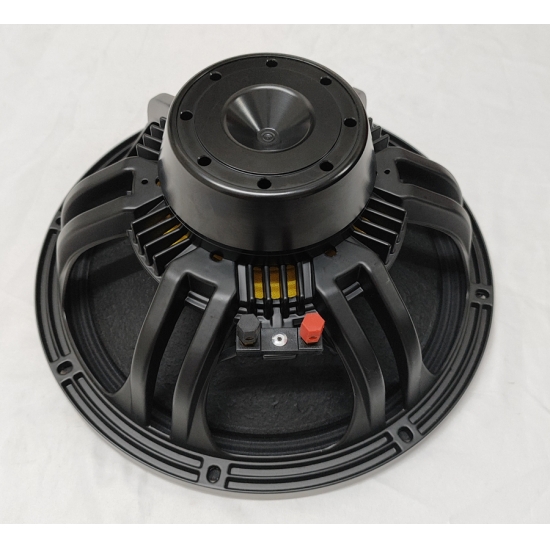

15 Inch High Quality Neodymium Woofer (15SN76)

This 15-inch neodymium woofer is a professional loudspeaker driver designed for high-performance PA systems, including line array speakers, subwoofers, and full range speaker cabinets.

With a lightweight neodymium magnetic structure and high power handling capability, it delivers strong low-frequency response, high sensitivity, and reliable performance for professional audio applications.

It is suitable for use in touring systems, fixed installations, rental audio systems, and OEM speaker cabinet manufacturing.

ACLON provides OEM and ODM manufacturing services including custom impedance, power handling, voice coil configuration, magnet structure, and basket design for global speaker brands and system integrators.

Parameter	Value
Nominal Diameter	15" (393 mm)
Rated Power (AES)	500 W
Program Power	1000 W
Nominal Impedance	8 Ω
Sensitivity (1W/1m)	99.5 dB
Frequency Range	40 Hz – 2 kHz
Voice Coil Diameter	3" (76 mm)
Magnet Type	Neodymium
Basket Material	Aluminum
Resonance Frequency (Fs)	37 Hz
Xmax	±7 mm
Moving Mass (Mms)	96 g
Equivalent Volume (Vas)	195 L
Electrical Resistance (Re)	5.3 Ω
Inductance (Le)	1.5 mH
Overall Diameter	393 mm
Bolt Circle Diameter	374 mm
Cutout Diameter	354 mm
Depth	171 mm
Net Weight	4.7 kg
Carton box (mm)	425425224

Available in 12 inch, 15 inch, and 18 inch versions for different PA system requirements.

• 15-inch professional neodymium woofer

• High power handling capacity

• Strong low-frequency performance

• Lightweight neodymium magnet design

• Suitable for line array and subwoofer systems

• High sensitivity and low distortion

• OEM and ODM customization available
• Line Array Speaker Systems

• Subwoofer Cabinets

• Full Range PA Speakers

• Touring Sound Systems

• Fixed Installation Audio Systems

• Rental Audio Companies

• OEM Speaker Manufacturing
Download Available:

• Product Datasheet (PDF)

• Technical Specifications

• Thiele/Small Parameters Sheet

• OEM/ODM Product Catalogue

Please contact us to receive detailed technical documentation and customization support.
