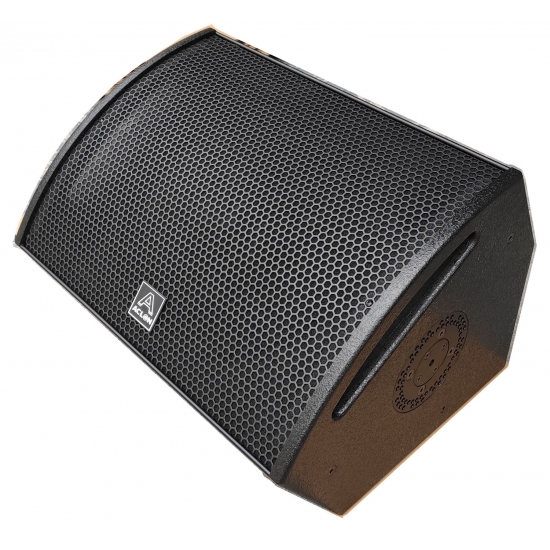

  • CO15 15 Inch Coaxial Full Range Speaker



    The CO15 is a professional 15-inch coaxial full range loudspeaker designed for accurate sound reproduction and high-performance stage monitoring applications. Its coaxial driver design ensures point-source sound, delivering excellent phase coherence and clear vocal performance.

    With a robust plywood enclosure and high-quality compression driver integrated into the coaxial system, the CO15 is suitable for live performances, churches, theaters, clubs, and fixed installation sound systems.

    ACLON provides OEM and ODM manufacturing services including private labeling, logo customization, cabinet finishing, grille design, packaging, and complete professional audio solutions for global distributors and brands.


    KEY FEATURES
    ✔ Professional coaxial stage monitor design
    ✔ 15" LF + 3" HF coaxial configuration
    ✔ Axi-symmetric 80° coverage for uniform sound field
    ✔ High output performance up to 138 dB peak SPL
    ✔ Compact bass-reflex enclosure design
    ✔ Flexible installation (floor / pole / wall / flown)
    ✔ Optimized for vocal clarity and stage monitoring
    ✔ Reliable passive system for professional applications

    Model CO12 CO15
    Type Coaxial stage monitor Coaxial stage monitor
    LF Driver 1 × 12" 1 × 15"
    HF Driver 1 × 3" compression driver 1 × 3" compression driver
    Coverage 80° axi-symmetric 80° axi-symmetric
    Power (Rated / Program) 500W / 1000W 600W / 1200W
    Peak SPL 138 dB 138 dB
    Frequency Response 61 Hz – 19 kHz 61 Hz – 19 kHz
    Crossover 1.9 kHz (passive) 1.9 kHz (passive)
    Impedance 8 Ω 8 Ω
    Input Connector 2 × XLR (Input / Link) 2 × XLR (Input / Link)
    Dimensions (W×H×D mm) 400 X 545 X 380 440 × 585 × 400
    Net Weight 28 kg 33 kg


    Related Products:

    • CO12
    • CO10
    • SM15
    • PS15
    • Line Array
  • • 15-inch coaxial full range design
    • Point-source acoustic performance
    • High clarity vocal and music reproduction
    • Suitable for stage monitoring and FOH use
    • Premium plywood cabinet construction
    • Wide frequency response with smooth coverage
    • OEM and ODM customization available
  • • Stage Monitor Systems
    • Live Sound Reinforcement
    • Churches and Worship Spaces
    • Clubs and Entertainment Venues
    • Theaters and Auditoriums
    • Rental Audio Companies
    • Professional PA Systems
    • Fixed Installation Projects
  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • User Manual
    • OEM/ODM Product Catalogue

    Please contact us to receive the latest documentation and customization options.
  • CO15 15 Inch Coaxial Full Range Speaker

    Professional OEM/ODM Coaxial Loudspeaker Manufacturer

    Designed for stage monitoring, live sound reinforcement, churches, clubs, and professional PA applications with precise point-source sound and reliable performance.
