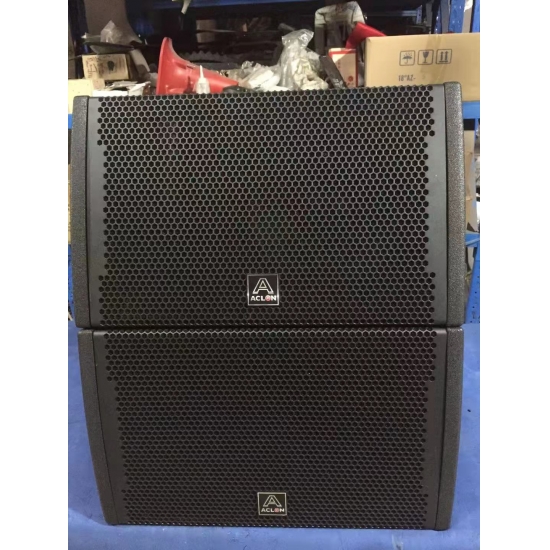

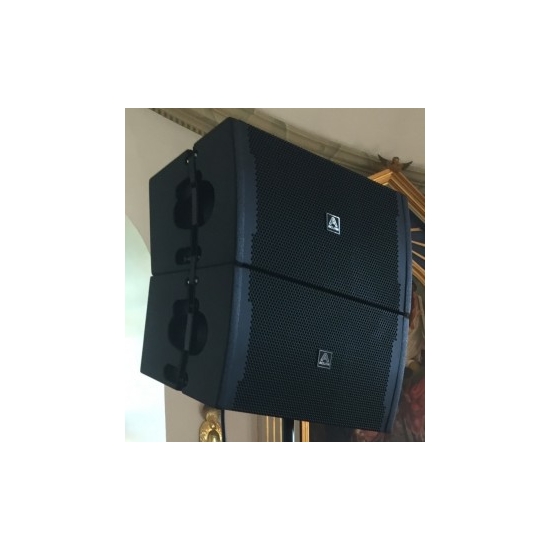

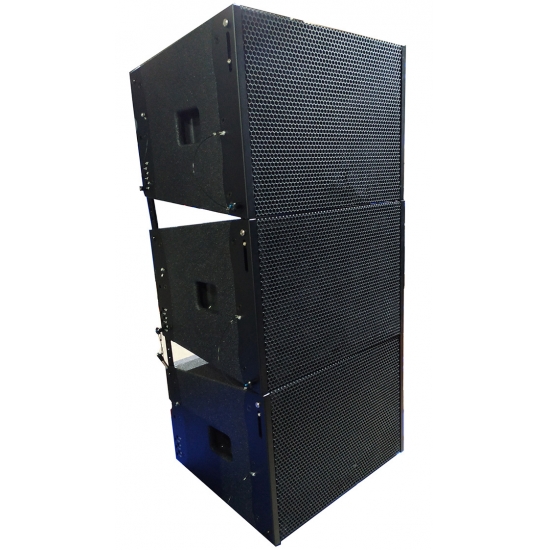

VX12LA 12Inch 400W compact line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • VXSeries Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VT, the VX Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers.

    VX Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning ACL sound in an attractive, easy to handle and affordable package.

    VX line array feature:

    ***3pcs drivers + 1pc 12 woofer + wave guide horn

    ***Plywood cabinet + safety hardware (pins, U-button, fly bar etc)

    ***Aluminum back panel

    ***Coverage angle: H100 degree * 14 degree

    ***Frequency: 70Hz-19KHz

    ***Mounting method: 35MM pole, tripod, fly bar


    Model VX12 VX18S VX8 VX15S
    LF woofer unit 1x12"  1x18" ferrite 1x8"  1x15" ferrite
    HF drivers 1X3" / 2 x1.4" /
    Frequency Range(-10dB) 57Hz-20 KHz 31Hz-230Hz 70Hz-20KHz 35Hz-250Hz
    Frequency respones (-3dB) 75Hz-20KHz 35Hz-200Hz 87Hz-19 KHz 40Hz-250Hz
    Coverage Angle H100°× 15° / H100°× 15° /
    Rated power / Program 600W/1200W 800W/1600W 400W/800W 600W/1200W
    Peak power 1800W 2400W 1200W 1800W
    Nominal MAX /Peak SPL 137dB SPL 131dB SPL 128dB SPL peak 127dB SPL
    Crossover 1.9 KHz 150HZ 2.0 KHz  150HZ
    Dimensions(W×DxH) 595×375×350mm  597×749×508mm 230*419*267 496*418*597mm
    Net Weight 26kg 42kg 14kg 30kg

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
