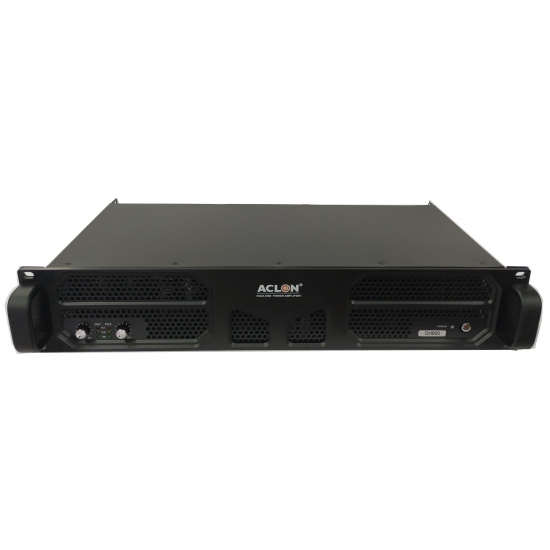

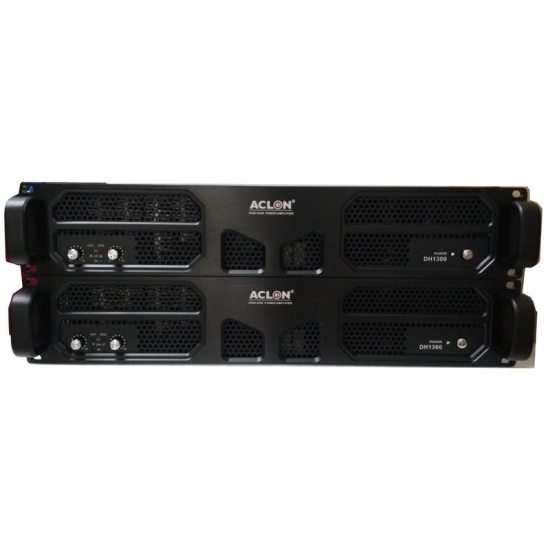

DH1300: 1350W two channel lightweight switch amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • DH1300 switch amplifier:

    DH series SMPS amplifier is small size, lightweight, with amazing power performances.

    It can be configured in any amplifying systems, large dynamic power requirements, reach high reliability and efficiency

    Whether permanently installation and touring is your first choice.


    Brief:

    8ohm stereo: 1300W

    Channel: two channel

    Rack: 2U rack

    Panel: aluminum elegant panel

    Circuit: class D

    Fans: 3pcs speedy fans

    Transistor: 6 Pair USA-ON NJW0302/0281G

    Big Capacitor: 3300uF/220v 4pc

    Audio IC (USA HIFI IC)USA-MC33078

    Net weight: 9KG

    Recommend speaker: PS15, VT4888, VT215



    Protection:

    Short circuit protection function.
    Overload protection function.
    Overvoltage protection.
    Under-voltage protection
    Overheat protection.



    Feature:

    1. Unique closed-loop location design, which very good to support audio features.

    2. LLC resonance oscillation bridge technology, which greatly improve the output power.

    3. Customized capacitor better to support the audio features.

    4. Built-in EMI filter. Famous brand FET.

    5. Ultra-low standby power consumption.

    6. High output efficiency.

    Model DH400 DH600 DH800 DH1000 DH1300 DH1500
    Output Power(20-20kHz, 1W with 1 kHz ) 2 Channel
    8ΩStereo Power(RMS) 2X 400W 2X 600W 2X 800W 2X 1000W 2X 1300W 2X 1500W
    4ΩStereo Power(RMS) 2X 800W 2X 1200W 2X 1600W 2X 2000W 2X 2600W 2X 3000W
    8OHM Bridge 1200W 2000W 2400W 3000W 4200W 4900W
    THD 20 Hz - 20 kHz for 1 W <0.04%
    Signal-to-Noise Ratio >105 dBA
    Damping factor >500
    Channel separation (Cross talk) at 1 kHz >75 dB
    Input Sensitivity 0.775V, 1.4 V
    Model Switch stereo,  parallel /mono

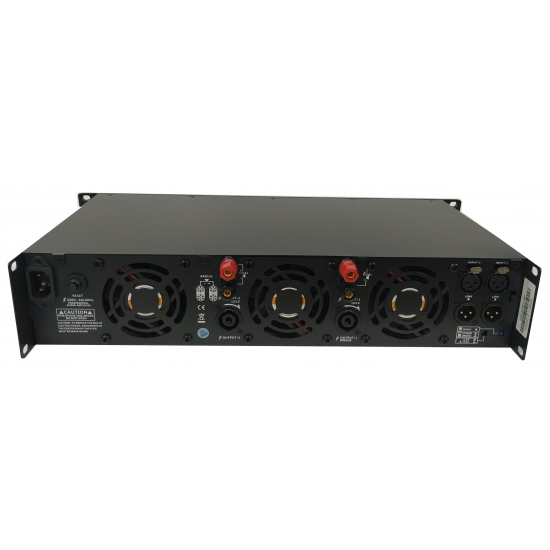

    Input Connectors (per channel) 3-pin XLR, electronically balanced
    Output Connectors (per channel) NL4 -Speakon
    Class circuitry Class D  (new tech 2 to 3 step circuitry)
    full-bridge type power tech New Full-bridge type power supply technology
    Cooling Front-to rear airflow, temperature controlled speed. of 3pcs
    Tour Class Protection short circuit, open circuit, direct voltage, high temperature, radio-frequency, ultralow frequency
    Operating voltage 110V / 230V / 220V, 50/60Hz (factory configured)
    Input impedance (unbalanced) 20 k Ohm (10k Ohm)
    Dimensions (H×W×D) 2U: 88×488×330mm
    Packing dimension 150×620×530mm
    Power transistor (NJW0302/0281G) 2Pair  3Pair  4Pair  6Pair  6Pair  6Pair
    Audio IC (USA HIFI  IC) USA-MC33078 USA-MC33078 USA-MC33078 USA-MC33078 USA-MC33078 USA-MC33078
    Net weight (kg) 9 9 9 9 9 9
    Gross weight (kg) 10 10 12 12 12 12
  • DH1300 switch amplifier:

    DH series SMPS amplifier is small size, lightweight, with amazing power performances.

    It can be configured in any amplifying systems, large dynamic power requirements, reach high reliability and efficiency

    Whether permanently installation and touring is your first choice.



    Brief:

    8ohm stereo: 1300W

    Channel: two channel

    Rack: 2U rack

    Panel: aluminum elegant panel

    Circuit: class D

    Fans: 3pcs speedy fans

    Transistor: 6 Pair USA-ON NJW0302/0281G

    Big Capacitor: 3300uF/220v 4pc

    Audio IC (USA HIFI IC)USA-MC33078

    Net weight: 9KG

    Recommend speaker: PS15, VT4888, VT215



    Protection:

    Short circuit protection function.
    Overload protection function.
    Overvoltage protection.
    Under-voltage protection
    Overheat protection.



    Feature:

    1. Unique closed-loop location design, which very good to support audio features.

    2. LLC resonance oscillation bridge technology, which greatly improve the output power.

    3. Customized capacitor better to support the audio features.

    4. Built-in EMI filter. Famous brand FET.

    5. Ultra-low standby power consumption.

    6. High output efficiency.

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
