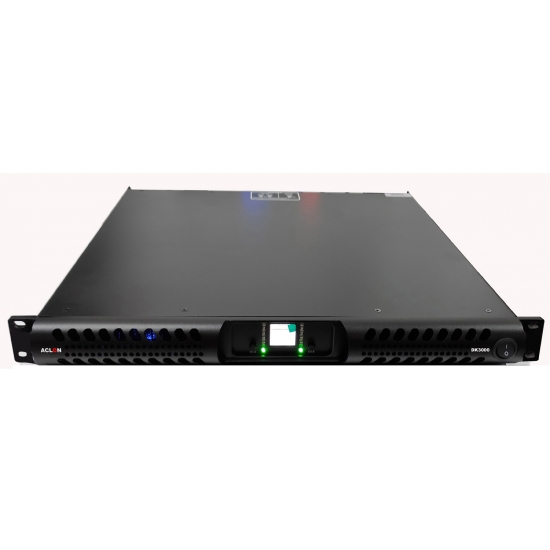

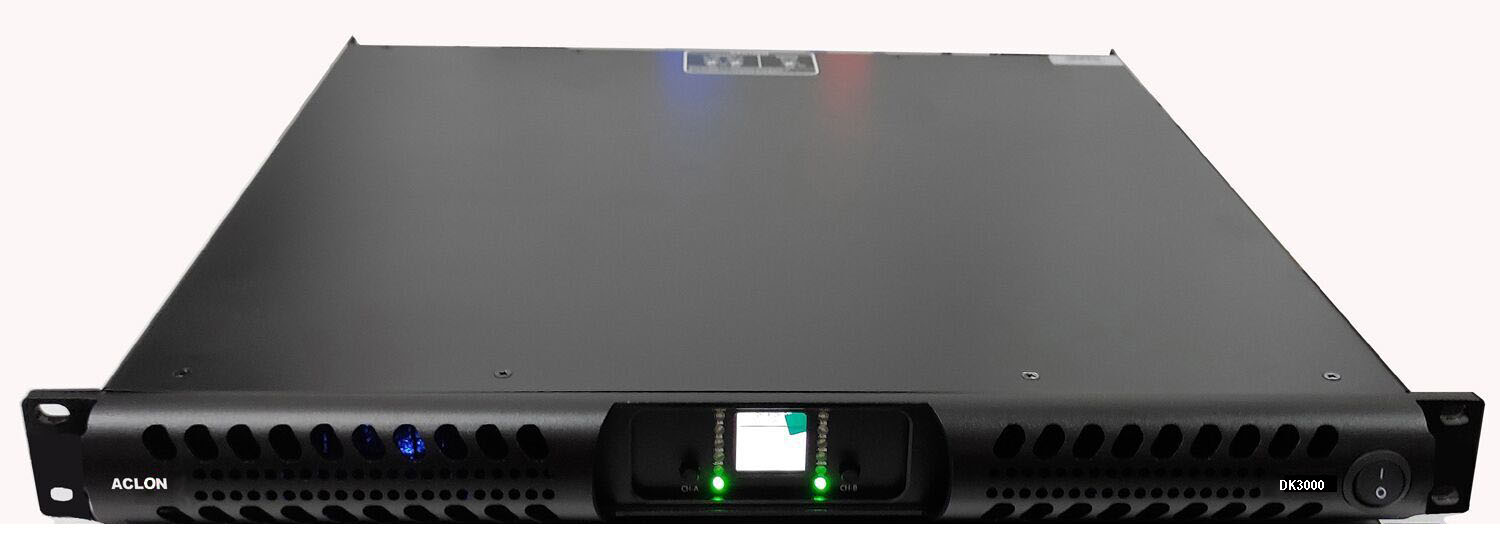

DK3000 2X6350W digital amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature

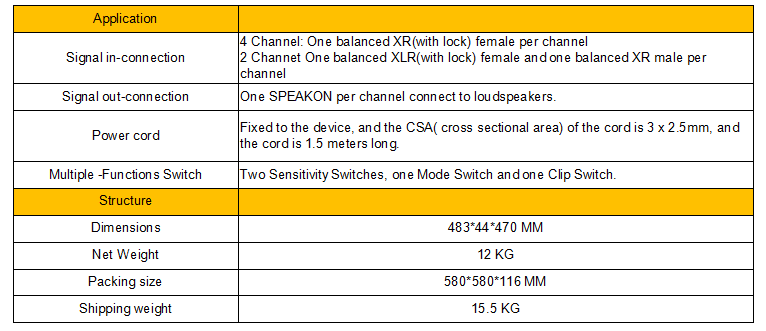

  • Application
  • Download
  • Print
  • DK3000 is high-ended professional digital power amplifier. excellent working with subwoofer - Deep sound for subwoofer, powerful, high power, very stable / very reliable.

    2X3000W / 8OHM

    2X4800W / 4 OHM

    2X6350W / 2OHM

    net weight: 12KG

    Imported materials + high efficiency cooling system + advanced D circuit technology insure amplifier work stable for long work.

    Power supply: 90V-270V

    Work stable at 2 ohm stereo

    General regulating switch mode power supply with PFC

    Attractive aluminium panel

    Front LCD screen

    HI-FI Class produces unique sound quality

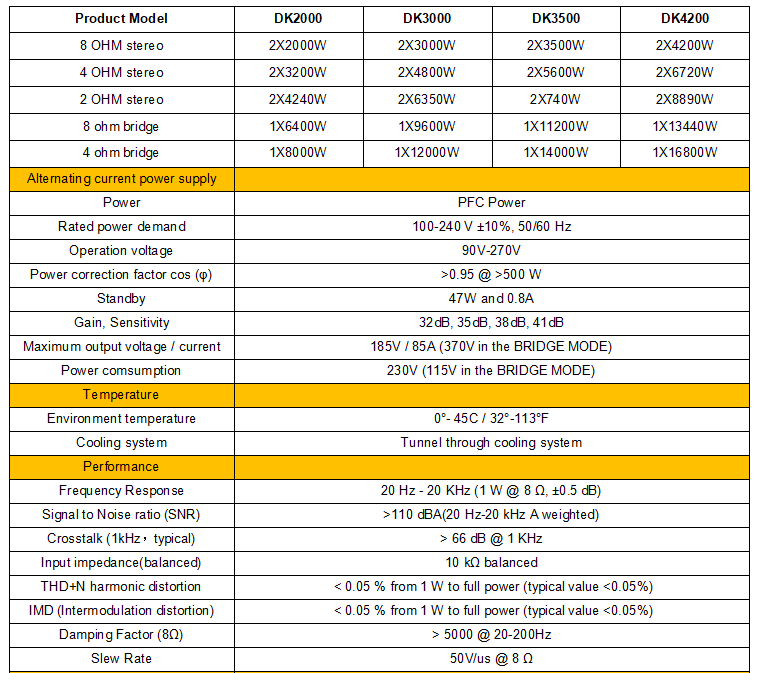

    Product Model DK3000
    8 OHM stereo 2x3000W
    4 OHM stereo 2x4800W
    2 OHM stereo 2x6350W
    8 ohm bridge 2x9600W
    4 ohm bridge 2x12000W
    Maximum RMS voltage swing 185V / 85A (peak)
    voltage gain(dB) 42.0
    Slew Rate 50V/us
    Input Sensitivity 1Vrms
    THD+N 0.05%
    IMD-SMPTE 0.05%
    DIM30  (10% rated powertypical) 0.05%
    Crosstalk (1kHztypical) -70
    Frequency Response 0-2
    Input impedance(balanced) 20K
    Damping Factor (100Hz8Ω) ≥500
    Signal to Noise ratio ≥105

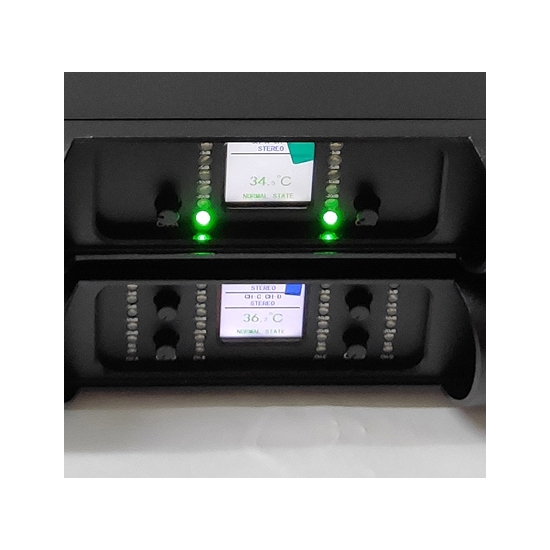

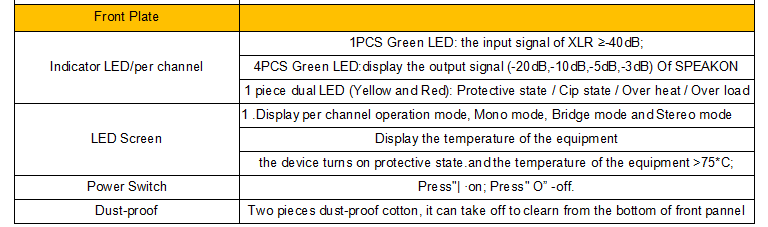

    LCD  Display Display operative  mode, Display temperature,Green means working normally,Yellow indicates overheating warning
    amplifier output DC protection, High frequency protection, Harmonic protection
    over temperature protection, overload protection
    Power supply AC:90v-270V(50-60Hz)
    Dimensions(WxDxH,mm) 483*460*44
    Net Weight (KG) 12kg

    Key Features

    1. Advanced switching mode power supply technology worldwide enables high performance and compact size.

    2. Power factor correction technology (PFC), the realization of very low power consumption and very wide power operating range, power factor up to 0.99, the power range of 90v-270v.

    3. General regulating switch mode power supply with PFC.

    4. Full bridge switching power supply topology, strong current conversion ability, more stable, more reliable.

    5. Power short circuit protection,EMC electromagnetic compatibility

    * Temperature warning: when the temperature reaches 70℃,the LCD screen will give warning, the yellow temperature lamp will be on, the output power will be compressed according to the temperature variable, until the overheating warning is removed, so that the power amplifier will not appear after the overheating protection without sound phenomenon

    * Thermal protection: the maximum normal operating temperature of output level and power supply is 75℃

    * Fixed frequency switch mode output level, to achieve quality of sound accuracy, strong bass, clear and fine treble, music detail performance incisively and vividly

    * HI-FI Class produces unique sound quality
