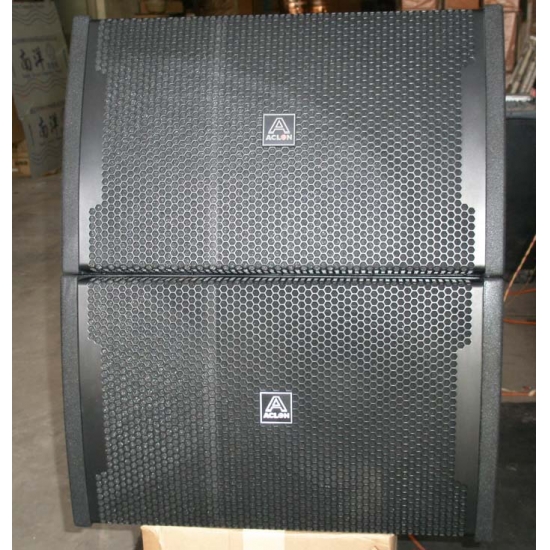

VXSeries Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VT, the VX Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers.
VX Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning ACL sound in an attractive, easy to handle and affordable package.
VX line array feature:
***3pcs drivers + 1pc 12” woofer + wave guide horn
***Plywood cabinet + safety hardware (pins, U-button, fly bar etc)
***Aluminum back panel
***Coverage angle: H100 degree * 14 degree
***Frequency: 70Hz-19KHz
***Mounting method: 35MM pole, tripod, fly bar

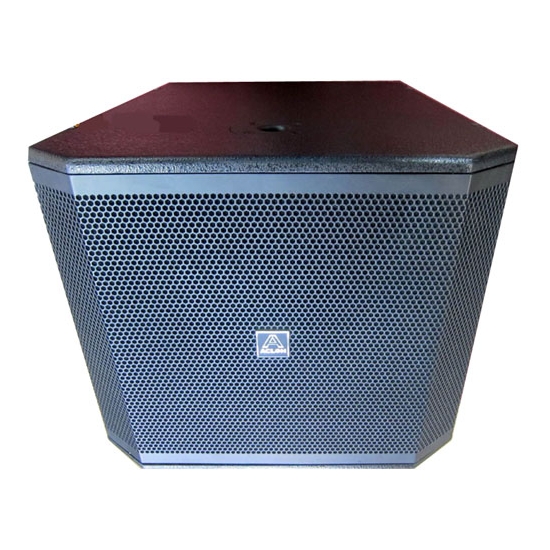

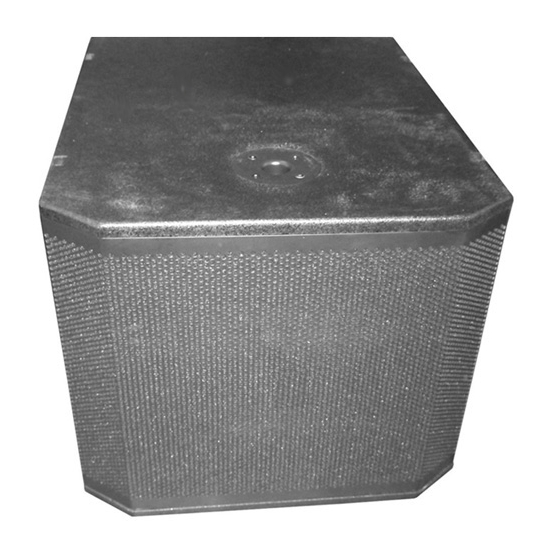

Model VX 12LA VX 118S System Components Type 12" Two way Line array system 18" Subwoofer system Driver Unit Low Freq. 1x12 IN（350mm）ferrite magnet 1x18 IN（458mm) ferrite magnet compression driver 3x1.4 IN（34mm) compression driver / Frequency Range(-10dB) 55Hz-19.5 KHz 31Hz-230Hz Frequency respones (-3dB) 70Hz-19 KHz 35Hz-200Hz Coverage Angle H100°× 14° / Harmonic distortion ≦0.05% ≦0.10% Impedance 8 ohms 8 ohms Rated power / Program/Peak Passive:400W/800W/1600W 450W/900W/1800W System Maximum SPL³ 133dB SPL peak 130dB SPL peak
LF:130dB,HF:137dB / System Sensitivity(1w@1m) 101dB SPL 99dB SPL LF:99dB,HF:137dB / Connection 2×NL 4MP Speakon 2×NL 4MP Speakon Crossover 1.3 KHz (Bi-amp) / Suspension Fly bar, tripod, pole Enclosure finish Baltic Birch 18 mm 11-ply Plywood finished with textured Polyurethane Cabinet Finish Black DuraFlex finish Grill Perforated Power coated,black,16-gauge perforated steel Dimensions(W×DxH) 595×375×350mm 597×749×508mm Net Weight 22kg 38kg Gross Weight 25kg 41kg Recommend combo 8pcs VX12LA + 4pcs VX118S -
VXSeries Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VT, the VX Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers.
VX Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning ACL sound in an attractive, easy to handle and affordable package.
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
Power amplifier and line array speaker manufacturer center
-
power amplifier and line array speaker manufacturer center
Related Tags : 12 inch 400W speaker indoor black color line array speaker compact lightweight line array speaker
