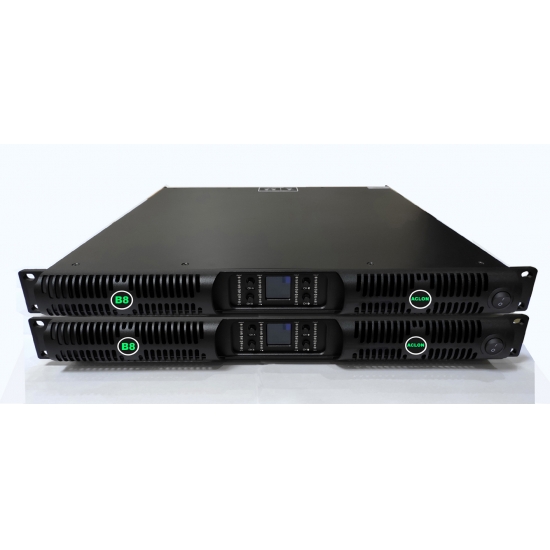

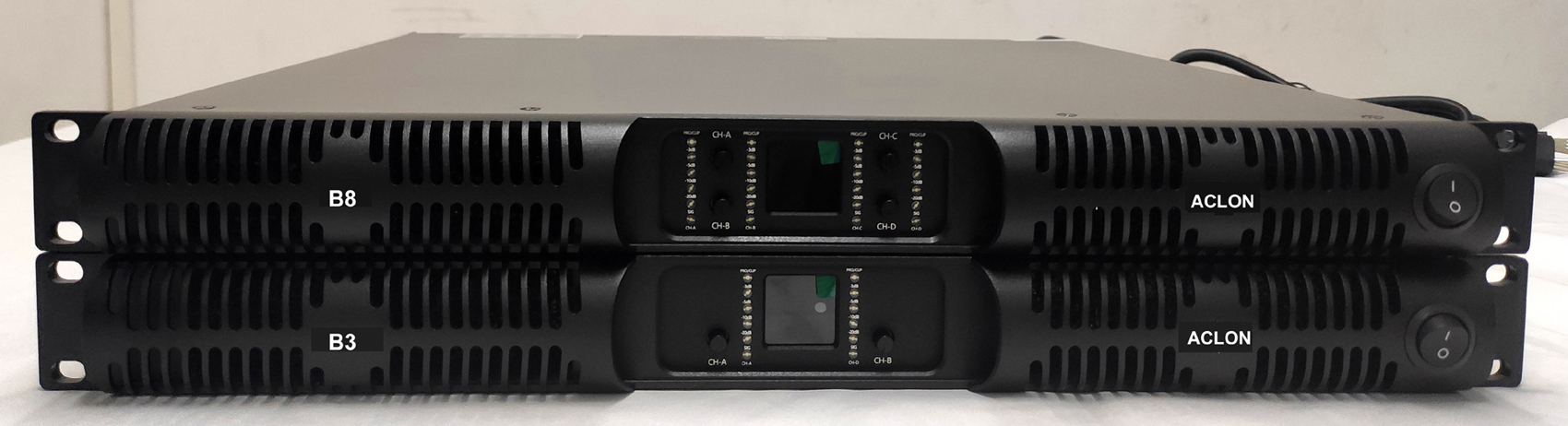

B8 18000W 1U four channel digital amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • B8 is high-ended professional digital power amplifier. adopted imported raw materials such as transistor, capacitor, IC etc.

    This amplifier have many advantage function, for example: front panel have LCD screen; PFC function; green audio power; power supply 80V-270V etc.

    It is one of the most powerful and most advanced technologically power amplifier on audio market.

    B8 is the best sound-rich voice, clear, very low noise, very low distortion, powerful, very high reliable / stable / lightweight, They are suit for full range high quality speaker.

    4X4500W / 2OHM

    net weight: 12KG

    Imported materials + high efficiency cooling system + advanced D circuit technology insure amplifier work stable for long work.

    Power supply: 90V-270V

    Work stable at 2 ohm stereo

    General regulating switch mode power supply with PFC

    Attractive aluminium panel

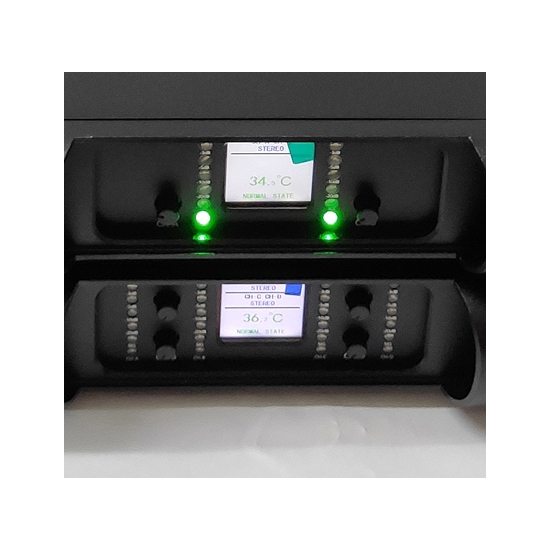

    Front LCD screen

    HI-FI Class produces unique sound quality

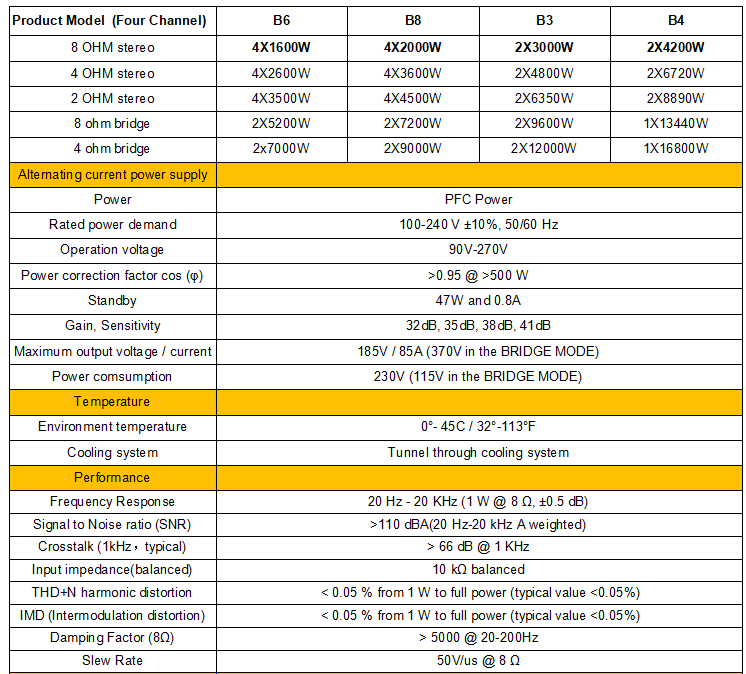

    Product Model

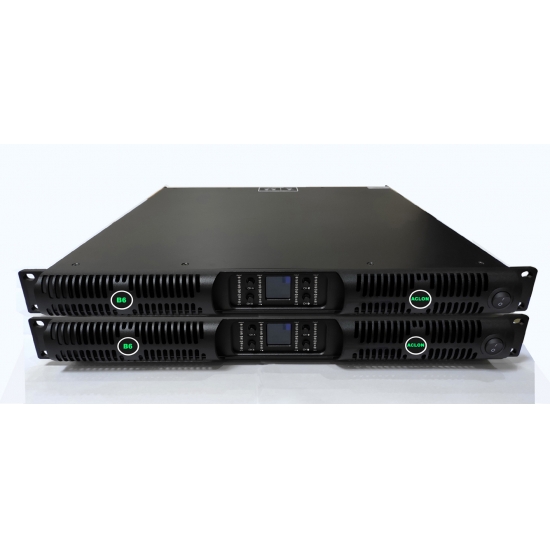

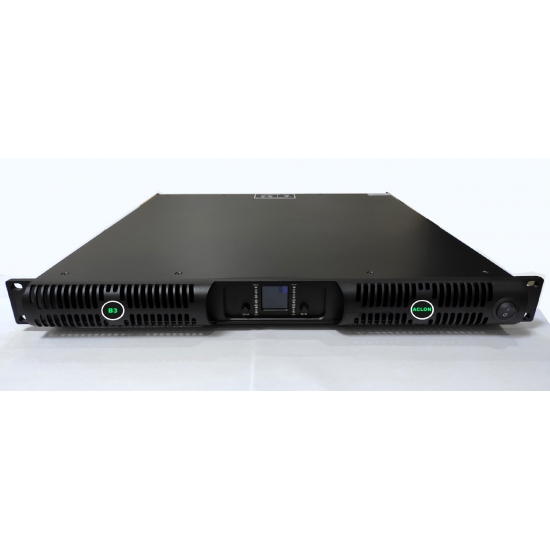

    B8 B6 B3
    8 OHM stereo 4X2000W 4x1600W 2x3000W
    4 OHM stereo 4X3600W 4x2600W 2x4800W
    2 OHM stereo 4X4500W 4x3500W 2x6350W
    8 ohm bridge 2X7200W 2x5200W 2x9600W
    4 ohm bridge 2X9000W 2x7000W 2x12000W
    Maximum RMS voltage swing 195V / 85A (peak) 185V / 85A (peak) 185V / 85A (peak)
    voltage gain(dB) 42.0  42.0  42.0
    Slew Rate 50V/us 50V/us 50V/us
    Input Sensitivity 1Vrms 1Vrms 1Vrms
    THD+N 0.05% 0.05% 0.05%
    IMD-SMPTE 0.05% 0.05% 0.05%
    DIM30  (10% rated powertypical) 0.05% 0.05% 0.05%
    Crosstalk (1kHztypical) -70 -70 -70
    Frequency Response 0-2 0-2 0-2
    Input impedance(balanced) 20K 20K 20K
    Damping Factor (100Hz8Ω) ≥500 ≥500 ≥500
    Signal to Noise ratio ≥105 ≥105 ≥105
    Protection 12 Protections such as: amplifier output DC protection, High frequency protection, Harmonic protection, over temperature protection, overload protection
    Power supply AC:80V-280V(50-60Hz)
    Dimensions(WxDxH,mm) 483*460*44
    Net Weight (KG) 12 12 12

    Key Features

    1. Advanced switching mode power supply technology worldwide enables high performance and compact size.

    2. Power factor correction technology (PFC), the realization of very low power consumption and very wide power operating range, power factor up to 0.99, the power range of 90v-270v.

    3. General regulating switch mode power supply with PFC.

    4. Full bridge switching power supply topology, strong current conversion ability, more stable, more reliable.

    5. Power short circuit protection,EMC electromagnetic compatibility

    * Temperature warning: when the temperature reaches 70℃,the LCD screen will give warning, the yellow temperature lamp will be on, the output power will be compressed according to the temperature variable, until the overheating warning is removed, so that the power amplifier will not appear after the overheating protection without sound phenomenon

    * Thermal protection: the maximum normal operating temperature of output level and power supply is 75℃

    * Fixed frequency switch mode output level, to achieve quality of sound accuracy, strong bass, clear and fine treble, music detail performance incisively and vividly

    * HI-FI Class produces unique sound quality

  • . Professional monitor, Meeting Rooms, Square, Activities etc.
    . Indoor applications and small places expand sound systems.
    . The night club,KTV. shake slow bar etc. sound  reinforcement systems.
    . auditorium. Human voice, background music sound systems.
    . Small Installations system and Live sound reinforcement.
