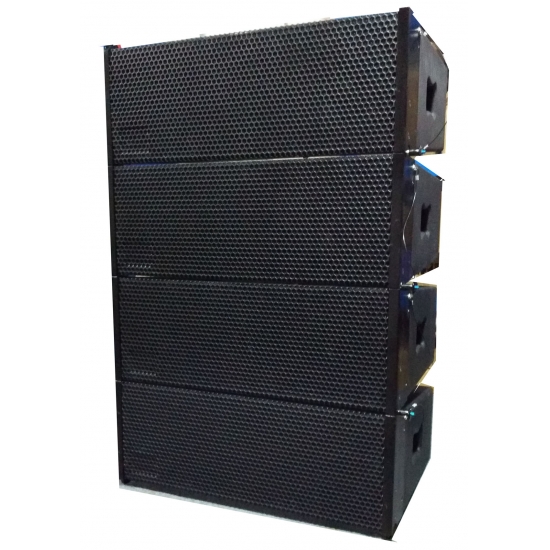

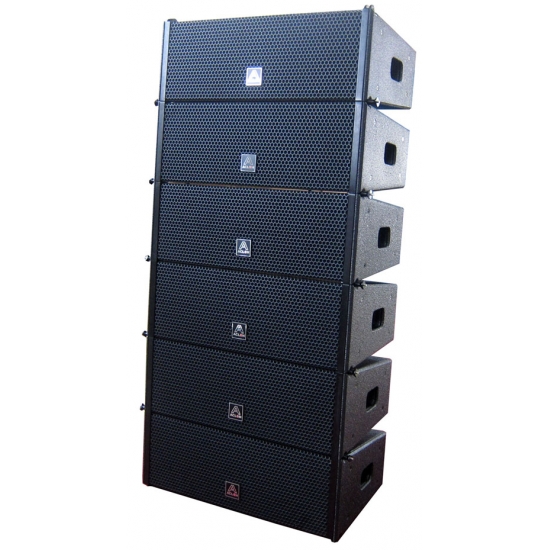

RS6 mini line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <
    Model RS 6 RS150
    System Components Type 6" Two way Line array speaker  15" Subwoofer speaker
    Driver Unit  Low Freq. 2X 6.5 IN160mmferrite magnet 1x15 IN380mm) ferrite magnet
    compression driver  1.7 IN44mm) compression driver /
    Frequency Range(-10dB) 65Hz-19 KHz 35Hz-220Hz
    Frequency response (-3dB) 70Hz-18 KHz 35Hz-200Hz
    Coverage Angle H90°× 14° Switch able /
    Harmonic distortion 0.05% 0.10%
    Impedance ( Passive) RS6=16  ohms (4pcs RS6=4 ohms) 8 ohms
    Rated power /Program/Peak Passive:250W/500W/1000W 400W/750W/1500W
    LF Rated power  LF:200W/400W/800W 800-1500W
    HF Rated power HF:50W/100W/200W /
    System Maximum SPL 120dB SPL peak(passive) 118dB SPL peak

    LF:105dB,HF:127dB /
    System Sensitivity(1w@1m) 97dB SPL(passive mode) 98dB SPL
    LF:97dB,HF:125dB /

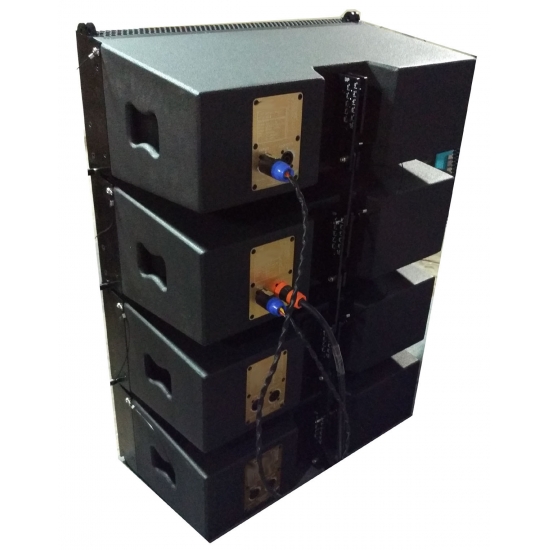

    Connection 2×NL 4MP Speakon  2×NL 4MP Speakon,
    Crossover 2.3 KHz (Passive) /
    Suspension/Mounting Suspension requires optional RS line-array frame kit/10 eyebolt
    Enclosure finish Baltic Birch 15 mm 11-ply Plywood finished with textured Polyurethane
    Cabinet Finish Black DuraFlex finish
    Grill Perforated Power coated,black,16-gauge perforated steel
    Dimensions(H×DxW) 245×322×595mm  525×540×595mm
    Net Weight 14kg 35kg
    Gross Weight 16kg 38kg
    Recommend combo 16pcs RS6 + 4 pcs RS150

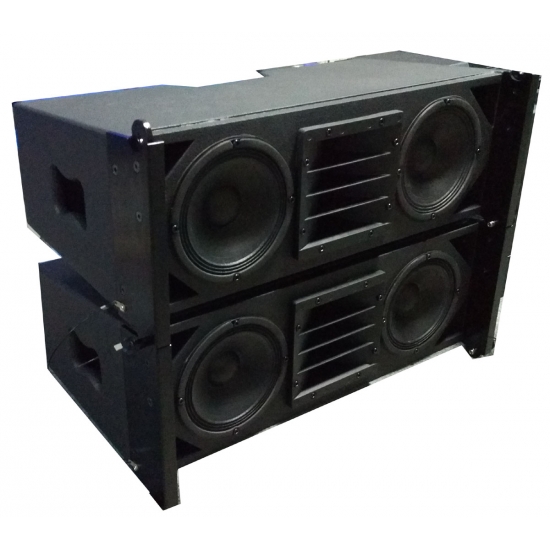

  • RS6 component:

    2x6.5 woofer+1x1.7 driver

    Program 800W

    Frequency response: 70Hz-18KHz

    Coverage angle: H90*14 degree switch able

    Max SPL: 120dB

    Xover: 2.3KHz

    Net weight: 14KG

    Multipurpose: stack on the ground or hanging in the air

    All necessary hanging hardware is included, just plug and play



  • Application:

    church

    wedding

    multipurpose room

    auditorium

    club

    disco

    party

    etc
