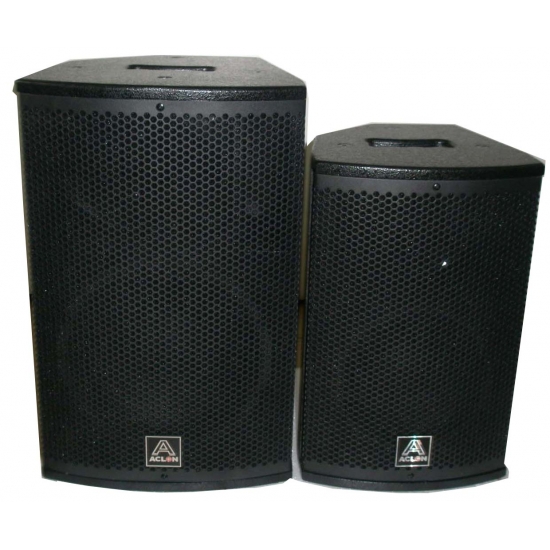

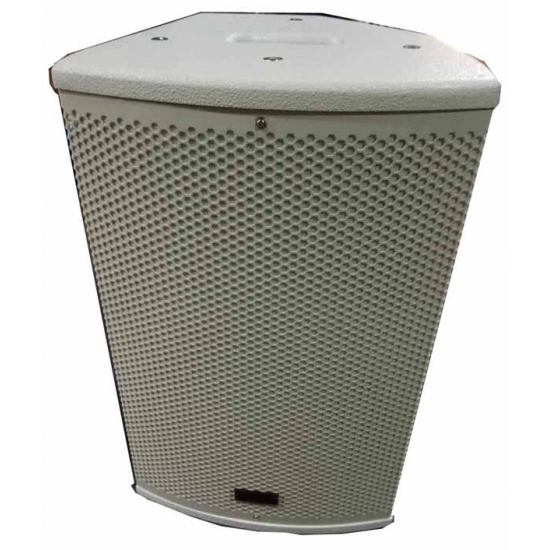

SM Series is an extended range of passive speaker systems with plywood cabinet offering the renowned ACLON sound and a high-level performance in a reliable and affordable package.
from 8" to 21" suit for indoor and outdoor events, Applied to church, KTV, Museum, conference room, theater, club etc.
Products Model: SM 8 SM 10 SM 12 SM 15 LF woofer unit 1 x 8" (φ50mm) 1 x 10" (φ65mm) 1 x 12" (φ75mm) 1 x 15" (φ75mm) HF drivers 1 x 1.4"(35mm) 1 x 1.4" 1 x 1.7" 1 x 3" Horn & Exit throat Size 1"(25mm)throat 1" 1" 1.5"(38mm) Dispersion Angle (H * V) 80° X 50° 80° X 50° 80° X 50° 80° X 50° RMS / Program 200W 300W 400W 500W Peak power 400W /600W 600W /900W 800W /1200W 1000W 1500W Nominal MAX /Peak SPL 127 dB 127dB 129dB 129dB Frequency Response( ±3dB) 45Hz - 20KHz 45Hz - 20KHz 42Hz - 20KHz 40Hz - 20KHz Crossover point 2.2 KHz 2.1 KHz 2.0 KHz 1.9 KHz Input Connector 8 Ohms 8 Ohms 8 Ohms 8 Ohms Dimension W*D*H (mm) 299×435×269 351×505×316 390×595×358 465×695×456 Net Weight (1pcs) 13 kg 17 kg 22kg 33kg -
-
. Mid or Larger clubs, disco bars hotel and restaurants
. Stadium Sports and mid. large exhibition spaces.
. Theater places performance expand sound systems.
. Audio & video presentations sound systems.
. Fixed Installations system and Live sound reinforcement -
