LQ10 Dual 10 Inch 800W compact line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • LQ Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VT, the lLQ Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers.

    LQ Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning ACL sound in an attractive, easy to handle and affordable package.


    LQ line array feature:

    1.Birch plywood 18mm, weather-resistant, scratch-resistant;

    2.Wave guide horn, dispersion Angle: H80°x 14°Vertical splay Angle

    3.B&C drivers, powerful & perfect sound.

    4.Compact & multipurpose enclosed. It can hang in the air or stack on the ground.

    5.Normal impedance: 16ohm

    6.Hardware is included, just plug and play

    7.Net weight: 28KG



                 LQ series passive Line array speaker
    Title  Specification
    Products Model:    LQ10   LQ10-N   LQ18B

    LF driver unit Inch(aluminium frame)

     Voice Coil Dia

     2 x 10" (φ65mm), ferrite   2 x 10" (φ65mm), Neodymium

     1 x 18" (φ100mm)

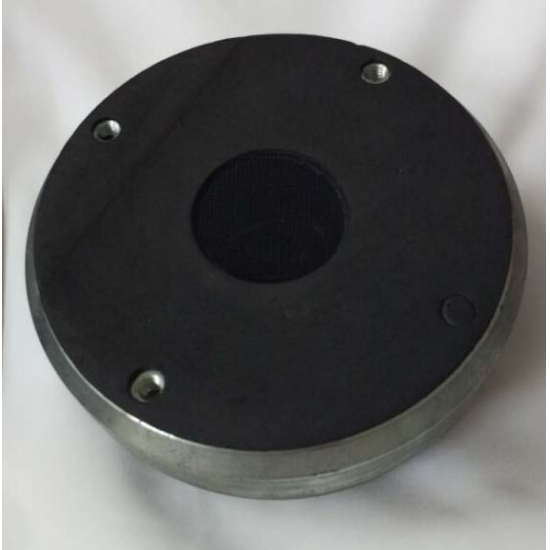

    HF-Compression drivers (Titanium )   1 x 2.5"(65mm), ferrite   1 x 3"(75mm) Neodymium    /

    Directivity Dispersion patented loaded Horn.

    Exit throat Size

     1.4"(36mm)throat   1.5"(38mm)throat   /
    Dispersion Angle (H * V)

     H80°x 14°Vertical splay Angle Varie

    s with array size configuration

     /
    System Performance Section
    RMS(Continuous/Program)  700W /1400W    800W /1600W    750W/1500W
    LF Rated power /RMS  600W   700W   750W
    HF Rated power /RMS  100W   100W
    Nominal Impedance LF  LF 8ohm   LF 8ohm   8 Ohm
                                    HF  HF 8ohm   HF 8ohm
    System Sensitivity  135dB   135dB  103dB



    Max SPL  139dB    139dB     129dB



    Frequency Response( ±3dB)  82Hz - 19KHz    82Hz - 19KHz    /
    Usable Range at-6dB  73Hz - 20KHz    73Hz - 20KHz    /
    Crossover Frequency point  1.6 KHz  Passive   1.6 KHz  Passive   /
    PASSIVE Nominal Impedance  16 Ohm   8 Ohm
    Appearance Section
    Input  Connector Passive  2*NL4 Speakon ( Input Pin±1=±1LF ,  Pin±2= ±2HF)   2 *NL4 Speakon Input Pin±1=±1LF,Pin±2= N/C
    Outlook  Colours  Black
    Protective Grille  Perforated steel grille
    Appearance   Textured Polyurethane painted finished
    Enclosure material  Baltic Birch 15&18 mm Multi-laminate Plywood finished
    Rigging -Flyings  Handle  2 integrated cabinet handle
                   Suspension (Top frame)  Suspension requires optional LQ line-array Top frame kit , hardware & Pin
    Dimensions Section
    Dimension  W*D*H (mm)  580x410x310   580x410x310   580x670x490
    Shipping Dimensions (mm)  660*480*380   660*480*380   660x750 x 570
    Net Weight   (1pcs)  28kg   24kg   50kg (110lbs)
    Shipping Weight (1pcs)  31kg   28kg   55kg (121lbs)
    Recommend combo Systems:

    Right side: 8pcs full range LQ10 + 2pcs sub LQ18B + 2 pcs top frame.

    Left side:    8pcs full range LQ10  + 2pcs sub  LQ18B + 2 pcs top frame

  • LQ Series Line Arrays lead the industry in large venue sound reinforcement. While intended for smaller venues than VT, the lLQ Series Constant Curvature Line Arrays are designed and built to the same high standards and uses the same advanced, concert-proven drivers.

    LQ Series speakers deliver extraordinary power handling, clarity, flexibility and, of course, stunning ACL sound in an attractive, easy to handle and affordable package.

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
