MA500W elegant two channel power amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

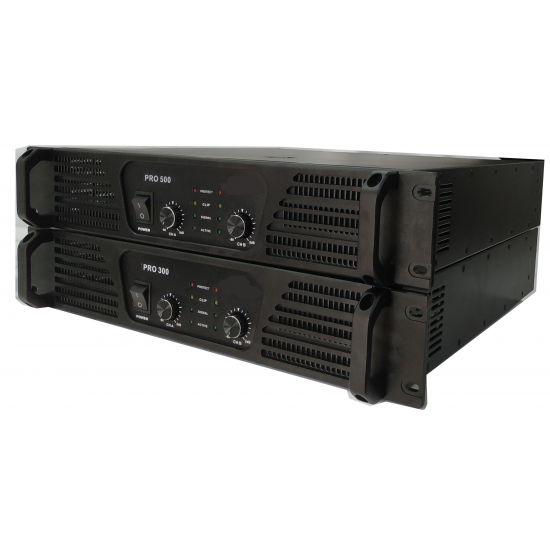

  • MA series transformer power amplifier

    Select imported high quality raw materials (transistor, capacitor, IC etc),

    make each unit amplifier at long work are very stable and high output run speaker.

    It can drive 4pcs speaker.

    Monthly output more than 1000pcs Failure rate less than 0.3%.



    MA series amplifier have a complete and high speed protection system in case of

    overheating, overloading, DC output etc.

    It has very clear and clean sound and high damping factor.



    It can be widely used in fixed-venue and touring performance such as:

    church, bar, nightclub, theater, auditorium, museum, muti-functional hall, wedding etc.


    MA feature:

    1. Class H circuit, latest in advanced technology

    2. 2U rack

    3. Aluminum panel, elegant

    4. Warranty: 3 years



    Product Model: MA300 MA500  MA600  MA800 MA1000 MA1200
    8ohm  stereo 2x300 W 2x500W 2x600W 2x800W 2x1000W 2x1200W
    4ohm  stereo 2x450 W 2x750 W 2x900 W 2x1200 W 2x1500 W 2x1800 W
    2ohm  stereo 2x560 W 2x900 W 2x1200 W 2x1500 W 2x1900 W 2x2200 W
    8ohm  bridge 900W 1500 W 1800 W 2400 W 3000W 3600W
    4ohm  bridge 1100W 1800W 2400W 3000W 3800 W 4500 W
    Frequency response 20 Hz-20 KHz    (±0.5dB)
    Sensitivity  0.775V、1.0V、1.44V(± 5%)
    Mode switch Stereo、Bridge、Parallel
    Input impedance(ohm) 20K ohm balanced, 10K ohm unbalanced
    Slew  rate ≥40 V/us
    Total harmonic distortion ≤0.05%
    Damping factor ≥400  ≥600
    Protection DC protect.Current inrush protect、 turn-on/off transient, Short circuit protect、High temperature protect etc
    Crossover    by pass: 20 Hz-22 KHz   (-3 dB),  High Pass:50 Hz-22 KHz ,  Low Pass:20 Hz-120 Hz
    Output Circuitry  Class AB and class H
    Power supply 110V/60Hz,   230V/50Hz ( factory configured )
    Dimension (W×D×H)    2U: 483x450x88mm
    Net   Weight  (kg) 18 20 20 24 26 27.5
    Gross Weight (kg) 21 23 23 27 29 31

  • Feature:

    1. Elegant aluminum panel

    2. 2U rack, class H circuit

    3. Have crossover can adjust high/low pass

    4. Grounding switch, filter switch, sensitivity switch, adjustable crossover

    5. Complete protection system

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
