SH 4x800W elegant two channel power amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

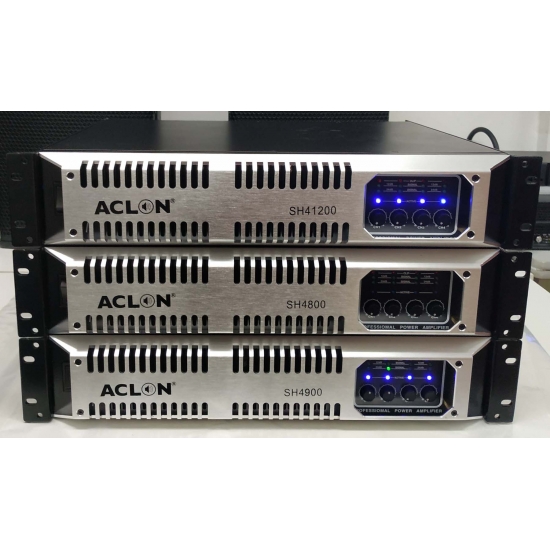

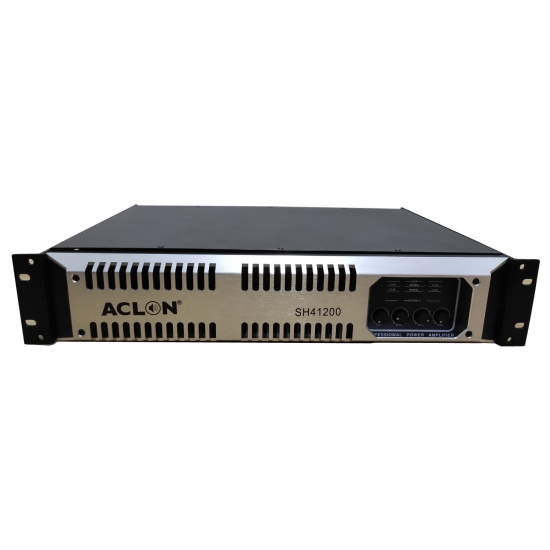

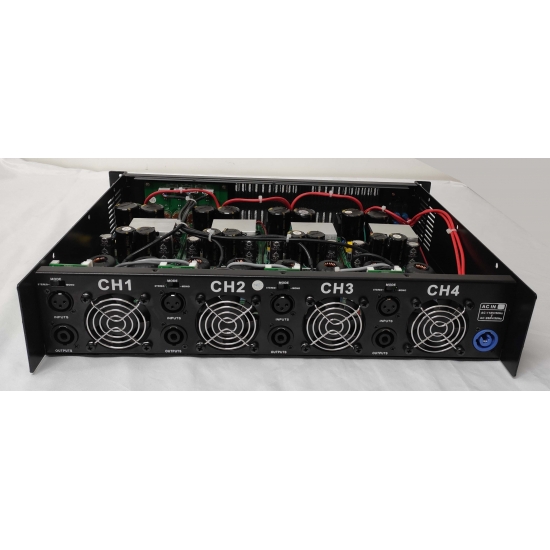

  • SH series Professional high powerful 4CH & 2CH amplifier

    with stability, reliability and outstanding performance.



    SH series amplifier have a complete and high speed protection system in case of overheating,

    overloading, DC output etc. It has very clear and clean sound and high damping factor.

    Small in size and light in weight. ACLON amplifier are easy to haul around.



    It can be widely used in fixed-venue and touring performance such as:

    church, nightclub, theater, auditorium, stadium, live concert, road show etc.



    Feature:

    1. Class D circuit with excellent stability and reliability.

    2. Net weight 7KG easy to move and installation.

    3. All is 2U-Rack

    4. Aluminum elegant panel

    5. Comprehensive protection system: DC, overload protection etc

    6. Very suitable for mobile show.

    7. Reasonable design makes you feel relaxed in the process of using.

    8. Highly cost effective.

    Model SH4500 SH4800 SH4900 SH41200 SH41600 SH1200 SH1600 SH800 SH500
    Channel 4 channel 2 channel
    8ΩStereo Power 4X600W 4X800W 4X800W 4X1200W 4X1600W 2X1200W 2X1600W 2X800W 2X600W
    4ΩStereo Power 4X900W 4X1250W 4X1250W 4X1800W 4X2000W 2X1800W 2X2000W 2X1250W 2X900W
    8ΩBridged Power / / / / / / / / /
    FrequencyResponse 20Hz-20kHz.(+/- 0.5dB) 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω) <0.04%    20Hz-20kHz.(8Ω)
    Signal-to-Noise Ratio >105 dB >105 dB
    Damping factor >1200 >1200
    Cross talk at1 kHz >70 dB >70 dB
    Input Connectors 3-pin XLR, electronically balanced 3-pin XLR, electronically balanced
    Output Connectors Speakon  Speakon
    Class circuitry Class D Class D
    Tour Class Protection DC, short circuit, over load, clip limit, over heat, DC, short circuit, over load, clip limit, over heat,
    Operating voltage 110V; 230V or customize 110V; 230V or customize
    Input impedance  Balance/20K     Unbalance /10K Balance/20K     Unbalance /10K
    Dimensions (H×W×D) 2U: 88×485×355mm 2U: 88×485×355mm
    Packing dimension 565x140x560mm 565x140x560mm
    Net weight (kg)  10KG 7KG



    Our advantages:
    1. Imported USA component, USA technology.
    2. Fast production lead time;
    3. High quality and competitive price;
    4. Professional factory. Workers are working with rich experience and good workmanship.
    5. Product sound and performance it can compare with international famous brand.
  • Feature:

    1. Elegant aluminum panel

    2. 2U rack, class H circuit

    3. Have crossover can adjust high/low pass

    4. Grounding switch, filter switch, sensitivity switch, adjustable crossover

    5. Complete protection system

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
