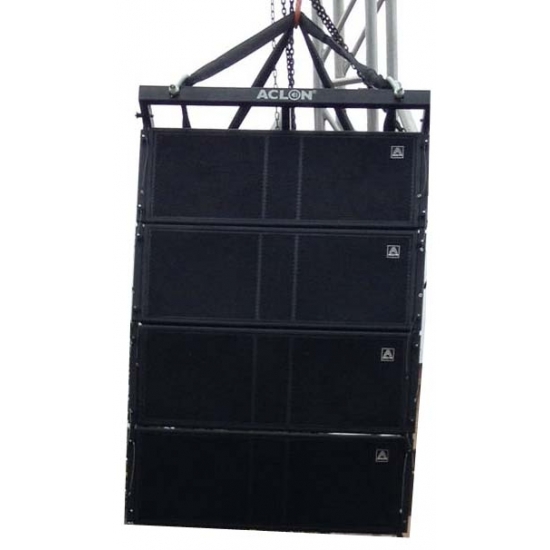

ACLON VT4-15 is a 3-way dual 15” line array speaker, It build in customized neodymium woofer & driver imported from USA. USA technology.
We have enhance woofer sensitivity, watt and sound, even if without subwoofer, the top speaker also play very strong low frequency.
VT48-15 has the most distinguished features are More powerful, more compact, lightweight, far projection distance, high sensitivity, strong penetration, and reliable running.
VT48-15 is designed for sports stadiums, road show, live concert etc indoor & outdoor performance venues.
VT48-15 is advanced technology and innovation representative.
VT4-15 -----3 Way Line Array System
System: Line array loudspeaker system
Frequency response (3dB):50Hz~18 KHz

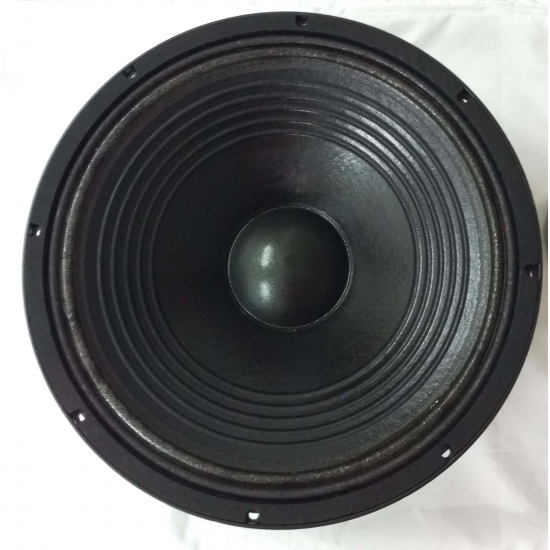

LF driver: 2X15” neodymium woofer
MF driver: 4X8” neodymium mid woofer
HF driver: 2X3” neodymium driverNominal Impedance:
LF 8ohms
MF 8ohm
HF 16ohm
Maximum SPL: 145dB
RMS power: 1700W
LF 1000W
MF 500W
HF 200W
Peak power: 5100WLF 3000W
MF 1500W
HF 600W
Dimensions (W x D x H):387x580x1261 mm
Connectors: 2xSpeakon connectors (NL8)
Enclosure material: 18mm plywood
Finish: Textured black paint
Grille: Black perforated steel
Suspension system: Proprietary rigging system
-
Feature:
1. Birch plywood 18mm, weather-resistant, scratch-resistant;
2. Wave guide horn, dispersion Angle: H90°x Vertical splay Angle
3. Imported drivers, powerful & perfect sound.

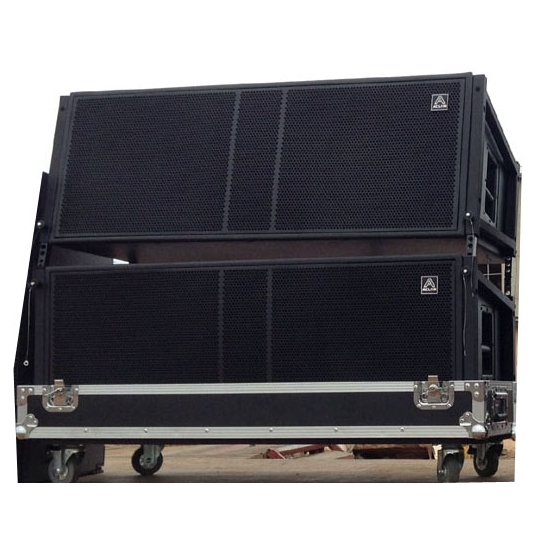

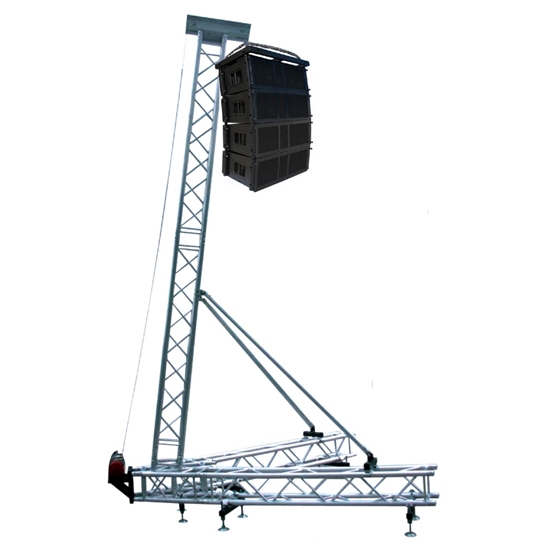

4. Large & multipurpose enclosed. It can hang in the air or stack on the ground.
5. Black or white color
6. Normal impedance: 8ohm
7. Hardware is included, just plug and play
8. Net weight: 65KG
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
Power amplifier and line array speaker
-
amplifier and speaker
