SM15 15 Inch 500W Full Range Loudspeaker White | OEM Professional Speaker Manufacturer< back

zoom in zoom out

Specifications
Feature
Application
Download
Print

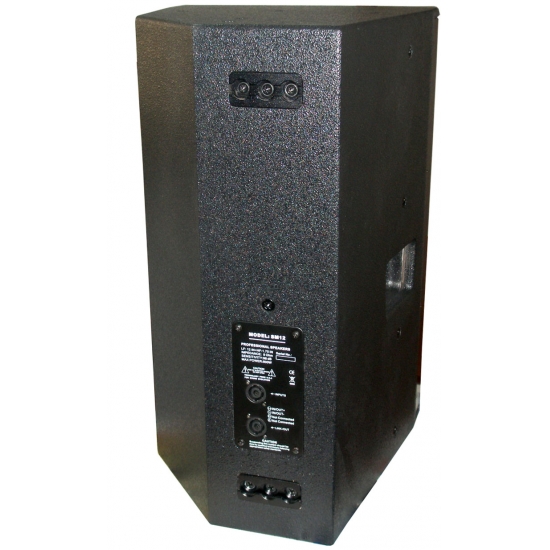

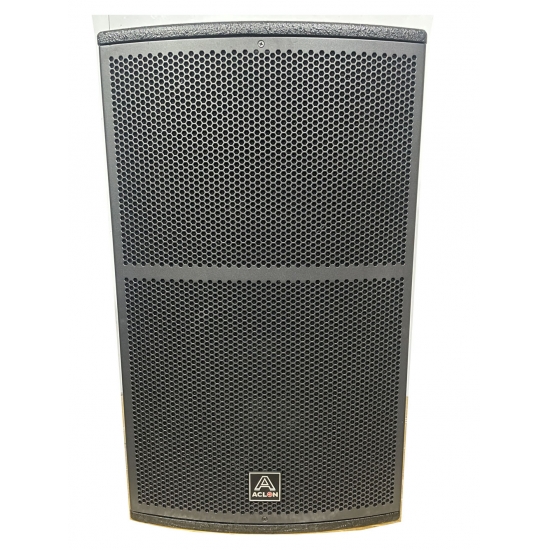

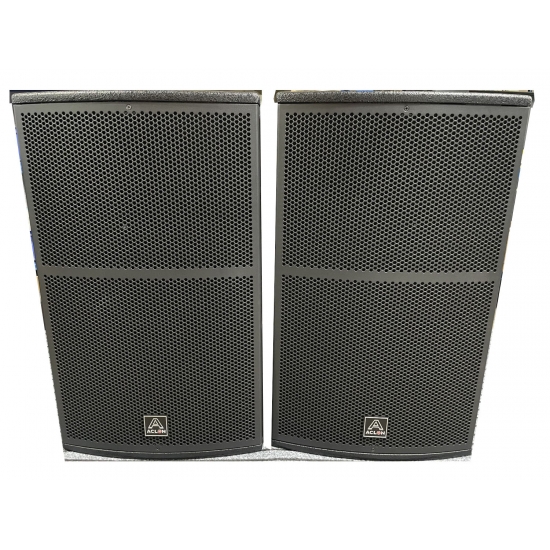

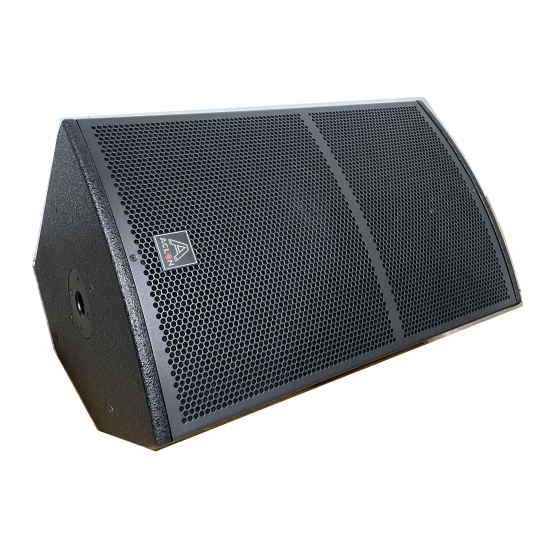

SM15 15 Inch 500W Full Range Loudspeaker

The SM15 is a professional 15-inch passive full range loudspeaker engineered for clear vocals, balanced sound reproduction, and dependable performance in commercial and live sound applications.

Built with a premium plywood enclosure and high-quality drivers, the SM15 delivers powerful output and reliable operation for churches, conference venues, clubs, theaters, hotels, and fixed installation projects.

ACLON provides OEM and ODM manufacturing services including private label production, logo printing, cabinet color customization, packaging design, and complete professional audio solutions for distributors worldwide.

Model	SM10	SM12	SM15	SM18S	SM218S	SM221S
Type	Full-range	Full-range	Full-range	Subwoofer	Subwoofer	Subwoofer
LF Driver	1×10"	1×12"	1×15"	1×18"	2×18"	2×21"
HF Driver	1×1.4"	1×1.7"	1×3"	—	—	—
Coverage	80°×50°	80°×50°	80°×50°	—	—	—
Power (RMS/Prog)	300/600W	400/800W	500/1000W	900/1800W	2000/4000W	3600/7000W
Peak SPL	127 dB	132 dB	133 dB	139 dB	139 dB	148 dB
Freq Response	45–20kHz	42–20kHz	40–20kHz	25–250Hz	25–250Hz	23–250Hz
Crossover	2.1kHz	2.0kHz	1.9kHz	160Hz	160Hz	180Hz
Impedance	8Ω	8Ω	8Ω	8Ω	4Ω	4Ω
Weight	17kg	22kg	33kg	43kg	64kg	106kg

• 15-inch high-performance low-frequency driver

• 500W RMS passive full range speaker

• 2-way professional loudspeaker design

• Durable plywood cabinet construction

• Wide 80° × 50° sound coverage

• Suitable for fixed installations and mobile PA

• OEM and ODM customization available
• Churches and Houses of Worship

• Conference Rooms

• Hotels and Banquet Halls

• Theaters

• Clubs and Entertainment Venues

• Live Sound Reinforcement

• Rental Audio Companies

• Professional PA Systems
Download Available:

• Product Datasheet (PDF)

• Technical Specifications

• User Manual

• OEM/ODM Product Catalogue

Please contact us to receive the latest documentation and customization information.
SM15 15 Inch 500W Full Range Loudspeaker

Professional OEM/ODM Loudspeaker Manufacturer

Designed for churches, conference halls, clubs, hotels, theaters, and professional PA applications with reliable performance and durable plywood construction.
