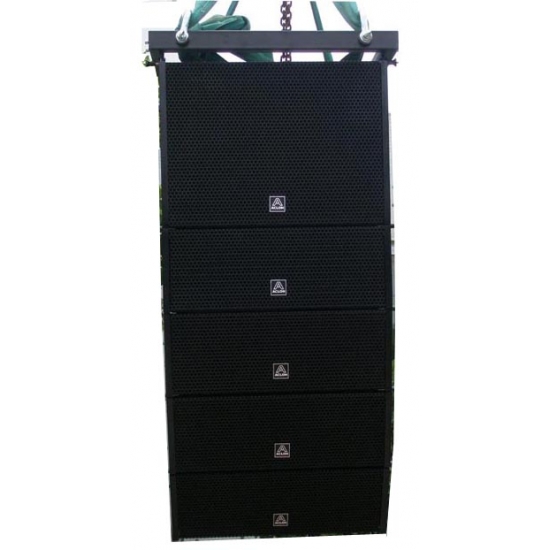

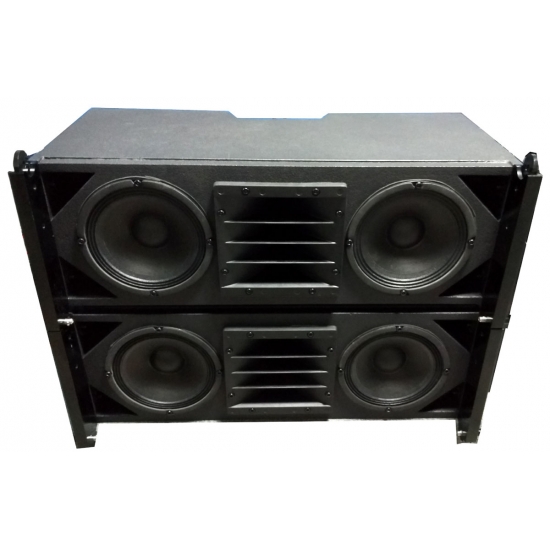

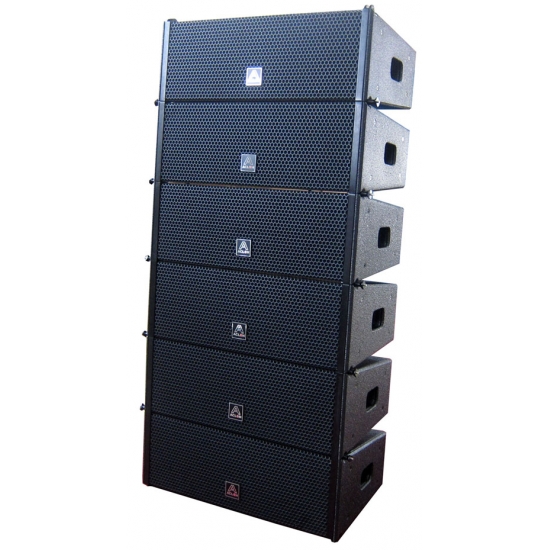

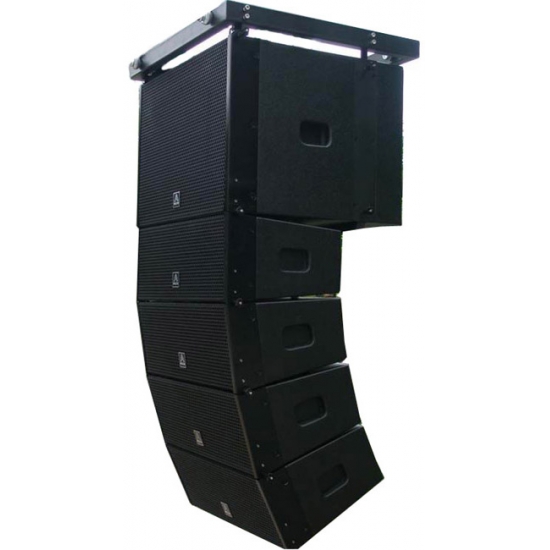

RS600 is dual 6inch mini active line array speaker. build in DSP module, high reliability, work stable.
RS6 inside use customized drivers. Silvery and smooth sound, MINI cabinet.
Application church, wedding, club, conference, party, coffee shop, DJ, PA etc small to middle size event.
Model RS 6A RS150A LF woofer unit 2X 6.5 IN（160mm） 1x15 IN（380mm) HF drivers 1.7 IN（44mm) / Frequency Range(-10dB) 65Hz-19 KHz 35Hz-220Hz Frequency respones (-3dB) 70Hz-18 KHz 35Hz-200Hz Coverage Angle H90°× 14° Switch able / Rated power / Program 350W/700W 500W/ 1000W Peak power 1050W 1500W Nominal MAX /Peak SPL 125dB SPL 129dB Crossover 2.3 KHz (Passive) 150HZ Nominal Impedance 4 Ohms Input output inside amps 2* XLR- INPUT /LINK LED indicators Active / Signal / Clip / Protect RS-485 / Network RS-485 / Network, USB Connector to Coumputer,For DSP function operation Protections DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect Power amplifier Circuitry Class D Dimensions(W×DxH) 245×322×595mm 525×540×595mm Net Weight 18kg 39kg
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
Related Tags : dual 6inch active line array speaker DSP active line array speaker neodymium active outdoor line array speaker
