LAT212A Dual 12 Inch 1000W Active Line Array Speaker | DSP Powered OEM Manufacturer< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

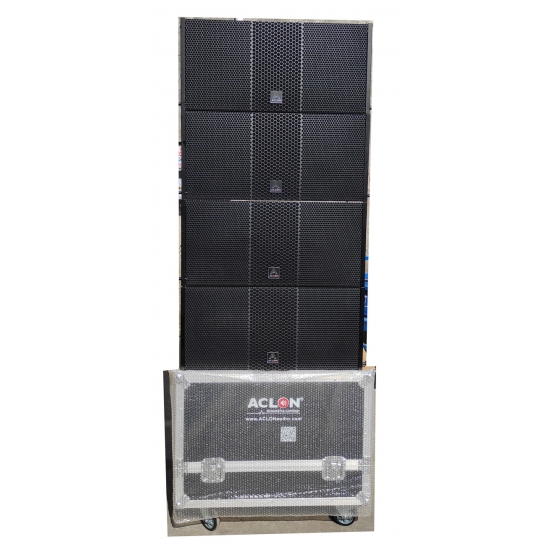

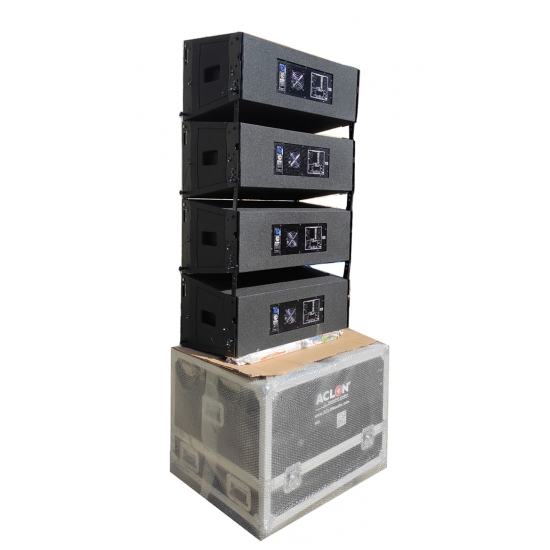

  • LAT212A Dual 12 Inch 1000W Active Line Array Speaker

    The LAT212A is a professional active line array speaker system equipped with a built-in DSP-controlled Class D amplifier module. It is designed for high-output performance in large-scale live sound reinforcement environments.

    Featuring dual 12-inch low-frequency drivers and a precision high-frequency compression driver, the system delivers powerful bass response, clear vocal projection, and excellent long-distance coverage.

    The integrated DSP amplifier provides optimized tuning, protection functions, and stable performance, making it ideal for touring companies, rental systems, stadium installations, and professional PA applications.

    ACLON offers OEM and ODM services including custom branding, DSP tuning, cabinet finishing, rigging customization, packaging design, and complete professional audio system solutions.



    Products Model:    LAT208A   LAT210A   LAT212A   LAT118SA   LAT218SA
    LF driver unit Inch  2 x 8"   2 x 10"   2 x 12"    1 x 18"    2 x 18"
    HF drivers  1 x 1.7"   1 x 3"   1 x 3"    /   /
    Dispersion Angle (H * V)  H90°x 7°   H90°x 7°   H90°x 7°   /   /
    RMS / Program  700W /1400W    800W /1600W    1000W /2000W    800W/1600W   2000W/3000W
    Peak power  2100W   2400W   3000W   2400W   6000W
    Nominal MAX /Peak SPL  138dB   142dB   145dB   139dB    139dB
    Frequency Response( ±3dB)  45Hz - 20KHz   42Hz - 20KHz    42Hz - 20KHz    25Hz - 220Hz    35Hz - 220Hz
    Crossover Frequency point  2.0 KHz    1.9  KHz    1.9  KHz    150 Hz    150 Hz
    Nominal Impedance  4 Ohms
    Input  output inside amps  2* XLR- INPUT /LINK
    LED indicators   Active / Signal / Clip  / Protect
    RS-485 / Network  RS-485 / Network, USB  Connector to Coumputer,For DSP function operation
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry    Class D
    Dimension (mm)  610*340*280   735*390*335   916*460*380   610*520*500   916*610*500
    Net Weight   (1pcs)  27kg     35 kg     40kg     49kg    64kg

  • • Dual 12-inch active line array design
    • Built-in 1000W DSP Class D amplifier
    • High SPL output for large venues
    • Professional touring and installation use
    • Integrated DSP processing and protection system
    • Fast deployment and system integration
    • OEM and ODM customization available

  • • Concert Sound Reinforcement

    • Touring Audio Systems

    • Stadiums and Arenas

    • Music Festivals

    • Churches and Worship Spaces

    • Rental Audio Companies

    • Large Venues and Events

    • Fixed Installations

  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • DSP Control Guide
    • OEM/ODM Product Catalogue

    Please contact us to receive updated documentation and customization options.
  • LAT212A Dual 12 Inch 1000W Active Line Array Speaker

    Professional OEM/ODM Line Array Manufacturer

    Designed for concerts, touring systems, stadiums, and large-scale professional sound reinforcement with built-in DSP amplification and high output performance.
