LAM208A Dual 8 Inch 700W Active Line Array Speaker | DSP Powered OEM Manufacturer< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

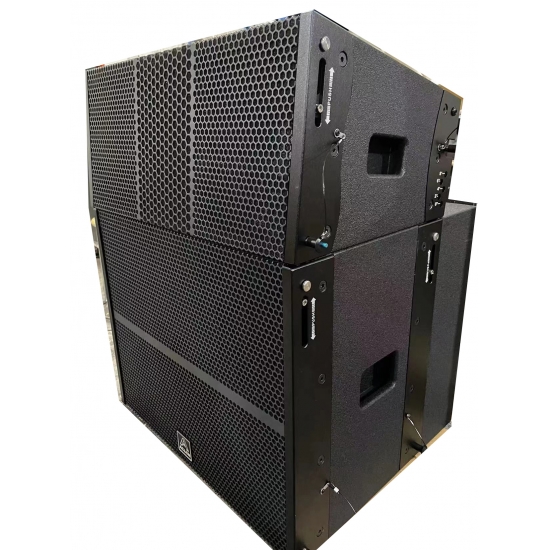

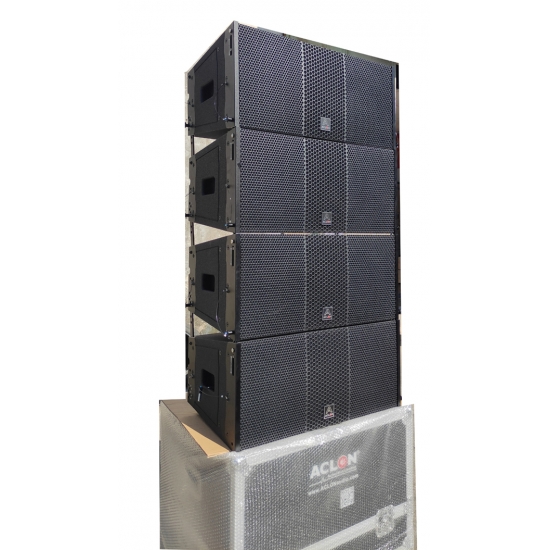

  • LAM208A Dual 8 Inch 700W Active Line Array Speaker

    The LAM208A is a professional active line array speaker system featuring a built-in DSP-controlled Class D amplifier module. It is designed for high-performance sound reinforcement in touring, installation, and live event applications.

    With dual 8-inch low-frequency drivers and a precision-engineered high-frequency compression driver, the system delivers clear vocals, strong mid-low impact, and stable high SPL output.

    The integrated DSP amplifier ensures optimized frequency response, protection functions, and easy system setup, making it ideal for rental companies and fixed installation projects.

    ACLON provides OEM and ODM manufacturing services including custom branding, DSP tuning, cabinet finishing, packaging design, and full professional audio system solutions.



    Model LAM208A LAM210A LAM212A
    LF Configuration 2 × 8" ferrite 2 × 10" ferrite 2 × 12" ferrite
    HF Driver 3" compression driver 3" compression driver 3" compression driver
    Dispersion (H × V) 90° × 7° 90° × 7° 90° × 7°
    Power (RMS / Program) 700W / 1400W 800W / 1600W 1000W / 2000W
    Peak SPL 138 dB 142 dB 145 dB
    Crossover Frequency 2.0 kHz 1.9 kHz 1.9 kHz
    Frequency Response 45 Hz – 20 kHz
    Impedance 4 Ω
    Amplifier Type Class D DSP-powered amplifier (built-in)
    Input / Link 2 × XLR (Input / Link)
    Control Interface RS-485 / USB DSP control
    Protection Thermal / DC / Short circuit / Overload / Soft start
    Dimensions (W×H×D mm) 610 × 340 × 280 716 × 450 × 310 916 × 460 × 380
    Net Weight 27 kg 35 kg 40 kg



    Passive and active versions available for different system requirements.









  • • Dual 8-inch active line array design
    • Built-in DSP Class D amplifier module
    • 700W high-efficiency output power
    • Professional touring and installation use
    • Integrated protection system (thermal, overload, short circuit)
    • Fast setup and system integration
    • OEM and ODM customization available

  • • Live Concerts

    • Touring Sound Systems

    • Churches and Worship Spaces

    • Stadiums and Arenas

    • Conference Events

    • Rental Audio Companies

    • Medium to Large Venues

    • Fixed Installations

  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • DSP Control Guide
    • OEM/ODM Product Catalogue

    Please contact us to receive updated documentation and customization options.
  • LAM208A Dual 8 Inch 700W Active Line Array Speaker

    Professional OEM/ODM Line Array Manufacturer

    Designed for touring systems, live concerts, churches, and professional sound reinforcement with built-in DSP power amplification and stable performance.
