LAM210A Dual 10 Inch 800W Active Line Array Speaker | DSP Powered OEM Manufacturer< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

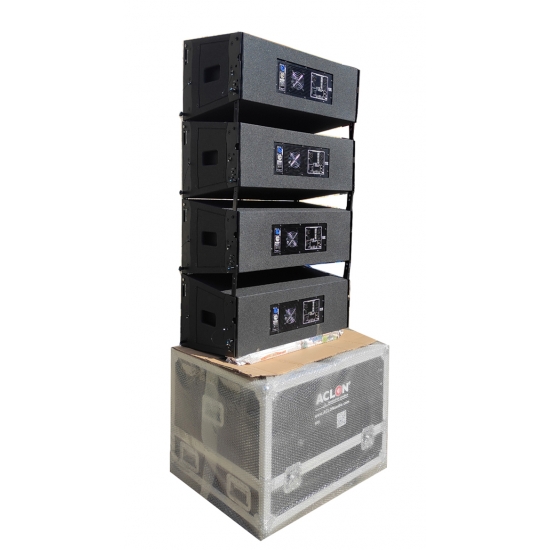

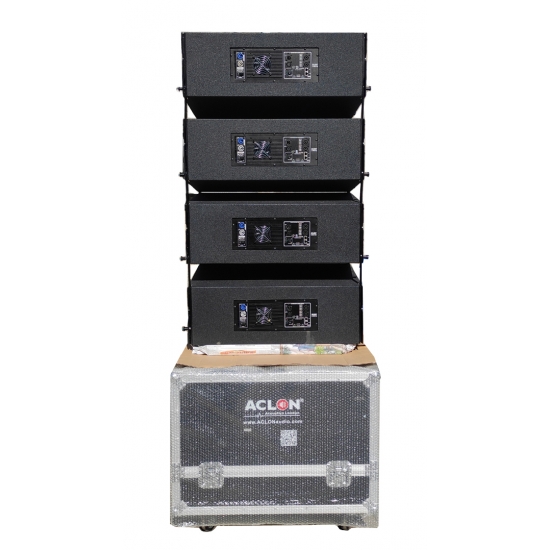

  • LAM210A Dual 10 Inch 800W Active Line Array Speaker

    The LAM210A is a professional active line array speaker system equipped with a built-in DSP-controlled Class D amplifier module. It delivers powerful output, precise sound control, and stable performance for demanding live sound reinforcement applications.

    With dual 10-inch low-frequency drivers and a high-performance compression driver, the LAM210A provides excellent vocal clarity, strong mid-low impact, and wide coverage for medium to large venues.

    This active design reduces the need for external amplifiers and processing, making system setup faster and more efficient for touring companies, rental systems, and fixed installations.

    ACLON provides OEM and ODM manufacturing services including custom branding, DSP tuning, cabinet finishing, packaging design, and full professional audio system solutions.




    Model LAM208A LAM210A LAM212A
    LF Configuration 2 × 8" ferrite 2 × 10" ferrite 2 × 12" ferrite
    HF Driver 3" compression driver 3" compression driver 3" compression driver
    Dispersion (H × V) 90° × 7° 90° × 7° 90° × 7°
    Power (RMS / Program) 700W / 1400W 800W / 1600W 1000W / 2000W
    Peak SPL 138 dB 142 dB 145 dB
    Crossover Frequency 2.0 kHz 1.9 kHz 1.9 kHz
    Frequency Response 45 Hz – 20 kHz
    Impedance 4 Ω
    Amplifier Type Class D DSP-powered amplifier (built-in)
    Input / Link 2 × XLR (Input / Link)
    Control Interface RS-485 / USB DSP control
    Protection Thermal / DC / Short circuit / Overload / Soft start
    Dimensions (W×H×D mm) 610 × 340 × 280 716 × 450 × 310 916 × 460 × 380
    Net Weight 27 kg 35 kg 40 kg



    Active and passive versions are available for different project requirements

  • • Dual 10-inch active line array design

    • Built-in DSP Class D amplifier module

    • 800W high-efficiency power output

    • Professional touring and installation use

    • Integrated protection system (overload, thermal, short circuit)

    • Fast setup with reduced external equipment

    • OEM and ODM customization available

  • • Live Concerts

    • Touring Sound Systems

    • Churches and Worship Spaces

    • Stadiums and Arenas

    • Conferences and Events

    • Rental Audio Companies

    • Fixed Installations

    • Medium to Large Venues

  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • DSP Control Guide
    • OEM/ODM Product Catalogue

    Please contact us for the latest documentation and customization options.
