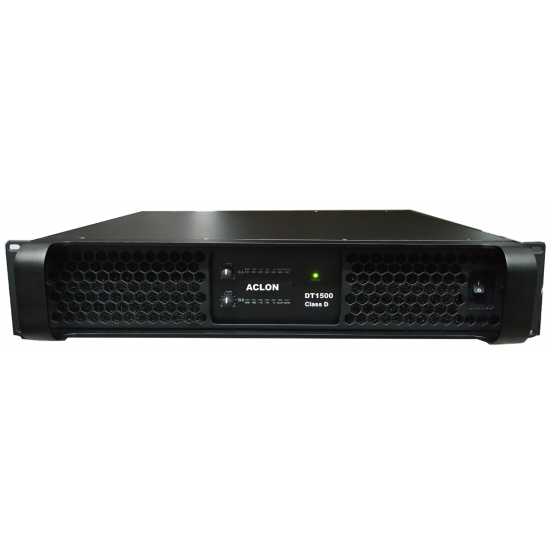

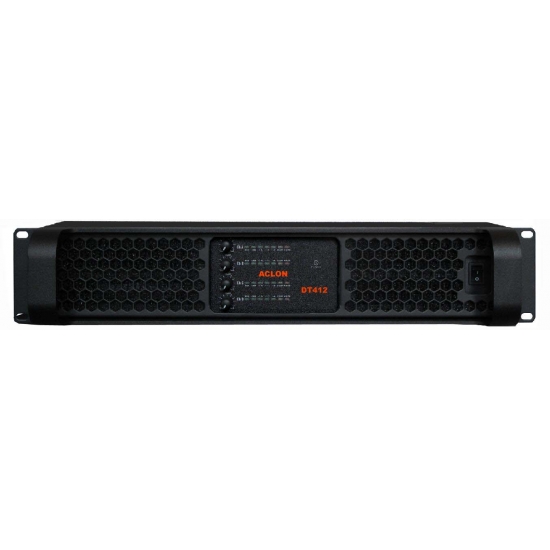

DT series digital amplifier have 2channel and 4channel for you choose. from 600W to 2100W.
it have a complete and high speed protection system in case of overheating, overloading, DC output etc.
It has very clear and clean sound and high damping factor. Small in size and light in weight. ACLON amplifier are easy to haul around.
It can be widely used in fixed-venue and touring performance such as church, bar, nightclub, theater, auditorium, museum, muti-functional hall, wedding etc.
Model DT600 DT900 DT1200 DT1500 DT1800 DT2100 Output Power
2 Channel 2 Channel 2 Channel 2 Channel 2 Channel 2 Channel 8ΩStereo Power(RMS) 2X600W 2X900 2X1250W 2X1500W 2X1800W 2X2100W 4ΩStereo Power(RMS) 2X1200W 2X1800W 2X2500W 2X3000W 2X3600W 2X4200W THD 20 Hz - 20 kHz for 1 W <0.1% Signal-to-Noise Ratio >112 dBA Damping factor >1000 Channel separation (Cross talk) at 1 kHz >70 dB Input Sensitivity 0.77V, 1.44V Input Connectors (per channel) 3-pin XLR, electronically balanced Output Connectors (per channel) Speakon Class circuitry Class D Cooling Front-to rear airflow, temperature controlled speed. Tour Class Protection short circuit, open circuit, direct voltage, high temperature, radio-frequency, ultralow frequency Operating voltage 110V / 230V / 220V, 50/60Hz Input impedance (unbalanced) 20 k Ohm (10k Ohm) Dimensions (H×W×D) 2U: 88×488×438mm Packing dimension 150×590×500mm Net weight (kg) 10 11 12 12 12 12 Gross weight (kg) 14.5 14.5 14.5 14.5 14.5 14.5
