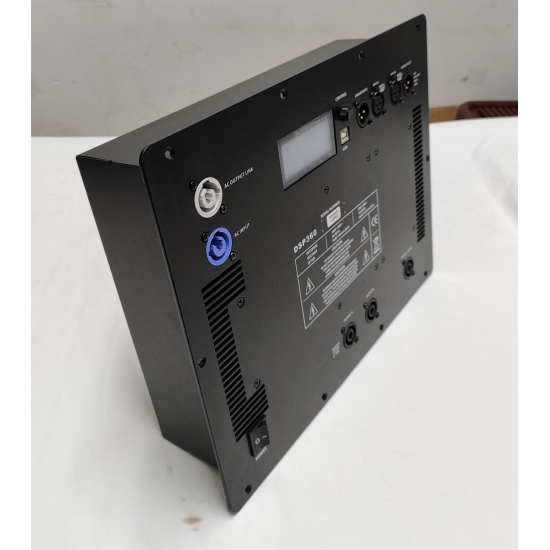

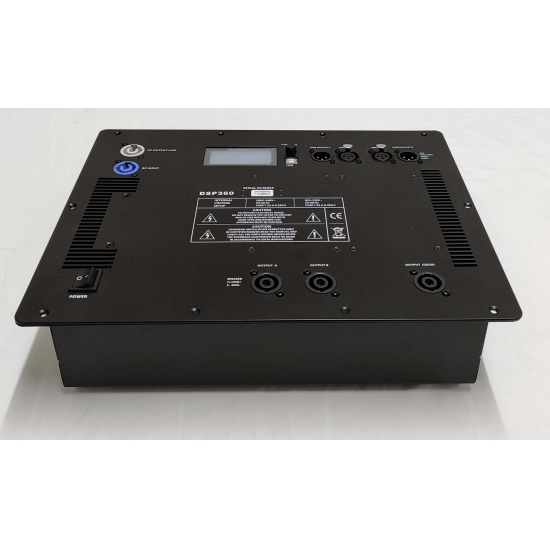

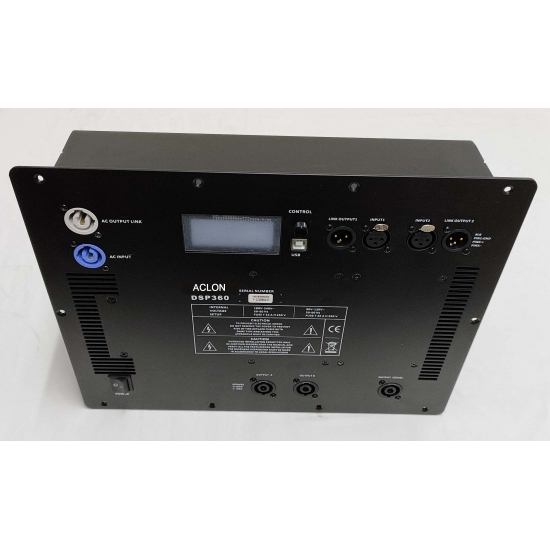

DSP SERIES – Advanced DSP Stereo Amplifier Modules
The DSP Series is a range of high-performance DSP-integrated Class D amplifier modules designed for professional active loudspeaker systems and OEM applications.
Featuring dynamic power supply control technology and adaptive impedance control, combined with advanced DSP processing, the series delivers high output power, superior efficiency, and refined audio performance.
Optimized for 2.1 systems and 3-way loudspeaker designs, the DSP Series provides flexible routing, precise system tuning, and stable operation for modern professional audio applications.
KEY FEATURES
✔ Integrated DSP Stereo Amplifier Platform
✔ Dynamic Power Supply Control Technology
✔ Adaptive Impedance Control Circuit
✔ High-Efficiency Class D Design
✔ Built-in DSP Processing System
✔ PC Software Control (USB Interface)
✔ Optimized for 2.1 / 3-Way Systems
✔ High Power Density OEM Module
✔ Low Distortion, High Clarity Sound
✔ Professional Audio Integration Ready
TECHNICAL DATA
Parameter DSP340 DSP360 DSP380 Amplifier Topology Class D Class D Class D DSP Control Built-in DSP (USB PC Software) Built-in DSP Built-in DSP Configuration 2 Inputs / 2 Outputs 2 Inputs / 2 Outputs 2 Inputs / 2 Outputs Output Power (8Ω) 2 × 450W + 900W 2 × 600W + 1200W 2 × 800W + 1200W Output Power (4Ω) 2 × 720W + 1440W 2 × 960W + 1920W 2 × 1280W + 1920W Frequency Response 20Hz – 20kHz (±0.5dB @1W) Same Same THD+N <0.09% <0.09% <0.09% Signal-to-Noise Ratio >115dB (A-weighted) >115dB >115dB Slew Rate 50V/μs 50V/μs 50V/μs Damping Factor >500 @100Hz >500 >500 Input Sensitivity 1.2V / +4dBu 1.2V 1.2V Gain 35dB 35dB 35dB Input Impedance 10kΩ Balanced 10kΩ 10kΩ Protection DC / Short / Overload / Clip / Thermal Same Same Power Supply AC 110–240V ±10%, 50/60Hz Same Same Dimensions (W × H × D) 360 × 280 × 85 mm 360 × 280 × 85 mm 360 × 280 × 85 mm Net Weight 6.6 kg 6.6 kg 6.6 kg
PROTECTION SYSTEM
✔ DC Protection
✔ Short-Circuit Protection
✔ Overload Protection
✔ Clip Limiter
✔ Thermal Protection
-
KEY FEATURES
✔ Integrated DSP Stereo Amplifier Platform
✔ Dynamic Power Supply Control Technology
✔ Adaptive Impedance Control Circuit
✔ High-Efficiency Class D Design
✔ Built-in DSP Processing System
✔ PC Software Control (USB Interface)
✔ Optimized for 2.1 / 3-Way Systems
✔ High Power Density OEM Module
✔ Low Distortion, High Clarity Sound
✔ Professional Audio Integration Ready -
APPLICATIONS
- Active 2.1 Speaker Systems
- 3-Way Active Loudspeakers
- Portable PA Systems
- Installed Sound Systems
- OEM Speaker Solutions
- DSP4500 amplifier module software
