Model: DK46
Amplifier Class: Class D Digital Power Amplifier
Channel Count: 4 Channel Input and Output
Output Power at 8 Ohms: 4 x 650W RMS Continuous
Chassis Height: Standard 1U Rack Mount Space
Power Supply Type: Advanced Switching Power Supply SMPS
Frequency Response: 20Hz to 20kHz plus and minus 0.5dB
Signal to Noise Ratio SNR: More than 105dB
Total Harmonic Distortion THD: Less than 0.1 percent
Cooling System: Intelligent temperature controlled forced air cooling fans

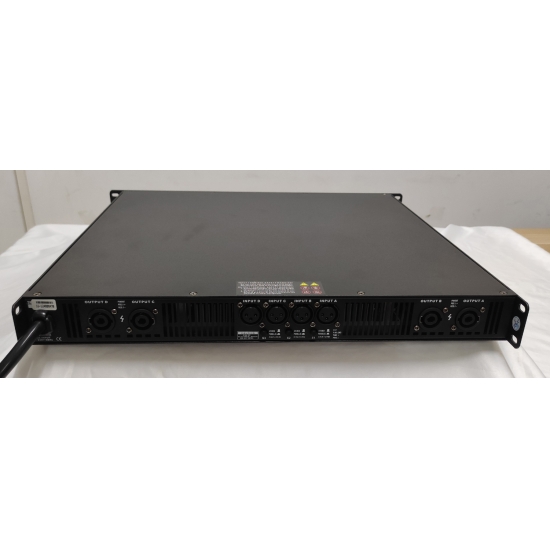

Input Connectors: Balanced XLR female connectors
Output Connectors: Professional Speakon connectors
-

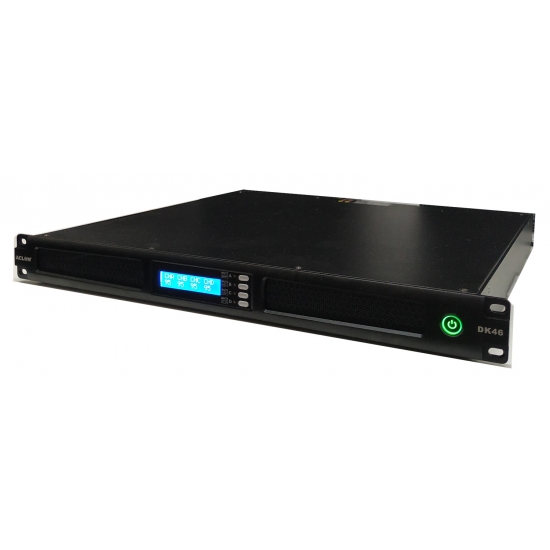

The ACLON DK46 is a high-performance 1U rack-mountable, 4-channel Class D digital power amplifier engineered for continuous professional operation and high-volume OEM tailoring.
High-Efficiency Class D Topography: Delivers maximum power output while minimizing heat dissipation and reducing electricity consumption.
Ultra-Compact 1U Design: Saves critical rack space for mobile touring flight cases and crowded installation environments.
Advanced Switching Power Supply SMPS: Ensures absolute voltage stability and robust low-end performance even under fluctuating power grids.
4-Channel Flexible Routing: Independently configures and drives multiple line array zones, subwoofer configurations, or multi-room stage monitor networks.
Comprehensive Circuit Protection: Features advanced intelligent defense against short circuits, over-current, thermal overload, DC output offset, and VHF signals to protect expensive connected speaker systems.
Premium B2B Manufacturing Quality: Built for long-term reliability and sustainable hardware execution, strictly avoiding low-cost market competition to safeguard your brand reputation.
-
Global OEM and ODM Partnerships: Fully customizable chassis front-panels, specific power tailoring, and private-label branding for European and American professional audio brands.
Professional Audio Wholesalers and Distributors: High-volume manufacturing capacity with stable quality control to support sustainable brand building.
Sound System Integrators and Installers: Ideal high-density channel solution for fixed installations in theaters, stadiums, night clubs, auditoriums, and houses of worship.
-
Please click Contact Now or send an inquiry to our sales product managers to download the following official documentation for the DK46 Amplifier:
ACLON DK46 Official Technical Datasheet PDF
Professional Digital Power Amplifier B2B Price List
ACLON OEM and ODM Hardware Customization Guide
Complete Line Array and Amplifier Matching Selection Catalog
- Click the print option in your web browser or request the high-resolution printable PDF technical datasheet directly from our sales managers.
