18SN100 18 Inch High Power Professional Subwoofer Speaker | OEM PA Subwoofer Manufacturer< back

zoom in zoom out

Specifications
Feature
Application
Download
Print

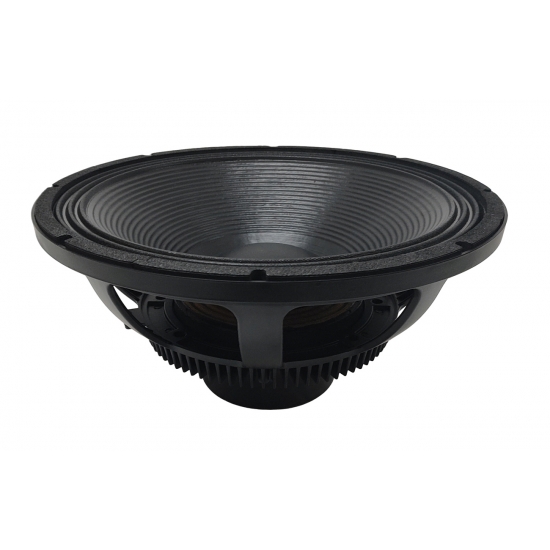

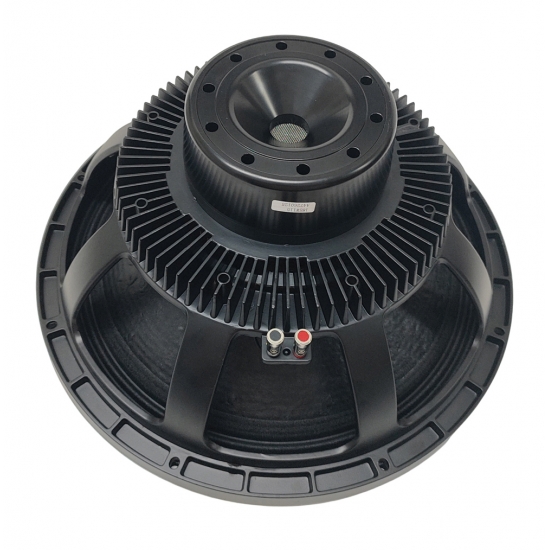

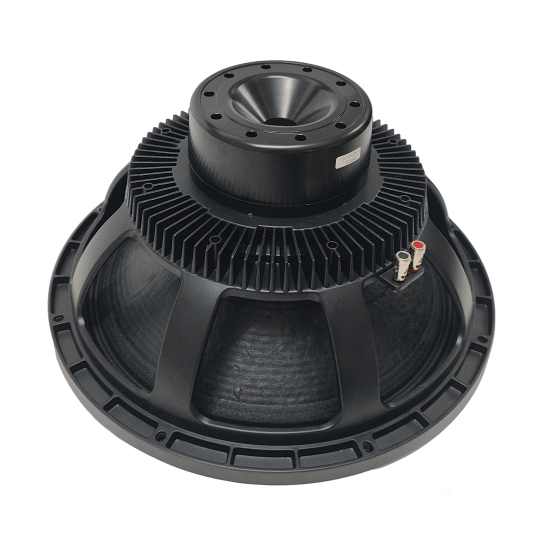

18 Inch High Power Professional Subwoofer Speaker

This 18-inch high power subwoofer is designed for professional low-frequency reinforcement in PA systems. It delivers deep, powerful bass response with high SPL capability, making it ideal for concerts, clubs, churches, and touring sound systems.

The robust cabinet structure and high-efficiency woofer design ensure stable performance under high power conditions, suitable for demanding professional audio environments.

ACLON provides OEM and ODM manufacturing services including custom tuning, cabinet design, logo printing, grille options, and complete subwoofer system solutions for global audio brands and distributors.

Parameter	Value
Nominal Diameter	18" (460 mm)
Rated Power (AES)	1500 W
Program Power	3000 W
Nominal Impedance	8 Ω
Sensitivity (1W/1m)	98 dB
Frequency Range	35 Hz – 1 kHz
Voice Coil Diameter	4" (100 mm)
Magnet Type	Neodymium
Basket Material	Aluminum
Resonance Frequency (Fs)	31 Hz
Xmax	±9 mm
Moving Mass (Mms)	211 g
Equivalent Volume (Vas)	252 L
Electrical Resistance (Re)	5.1 Ω
Inductance (Le)	1.7 mH
Overall Diameter	460 mm
Bolt Circle Diameter	440 mm
Cutout Diameter	422 mm
Depth	209 mm
Net Weight	9.0 kg
Carton box (mm)	500495275

Available in single 18-inch and dual 18-inch configurations for different system requirements.

SM15 / PK15 → Full Range

CO15A → Monitor

RS6 / LAT → Line Array

18 Subwoofer → Low Frequency Core

• 18-inch high power woofer design

• Deep and powerful low-frequency output

• High SPL performance for large venues

• Durable plywood cabinet construction

• Suitable for touring and installation systems

• Low distortion bass reproduction

• OEM and ODM customization available
• Concert Sound Systems

• Nightclubs and Entertainment Venues

• Churches and Worship Spaces

• Touring PA Systems

• Festivals and Outdoor Events

• Rental Audio Companies

• Fixed Installation Systems

• Professional Subwoofer Arrays
Download Available:

• Product Datasheet (PDF)

• Technical Specifications

• User Manual

• OEM/ODM Product Catalogue

Please contact us to receive updated documentation and customization options.
18 Inch High Power Professional Subwoofer Speaker

Professional OEM/ODM Subwoofer Manufacturer

Designed for deep bass reinforcement in concerts, clubs, churches, and professional PA systems with high SPL output and reliable performance.
