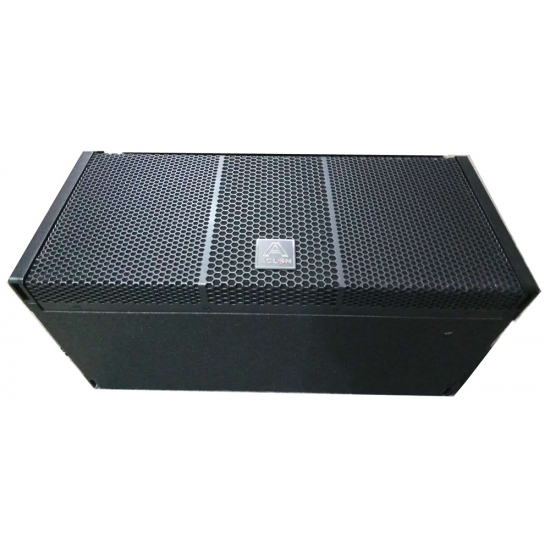

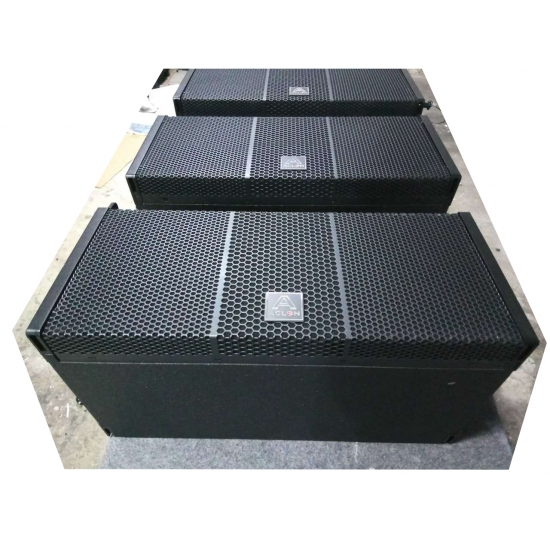

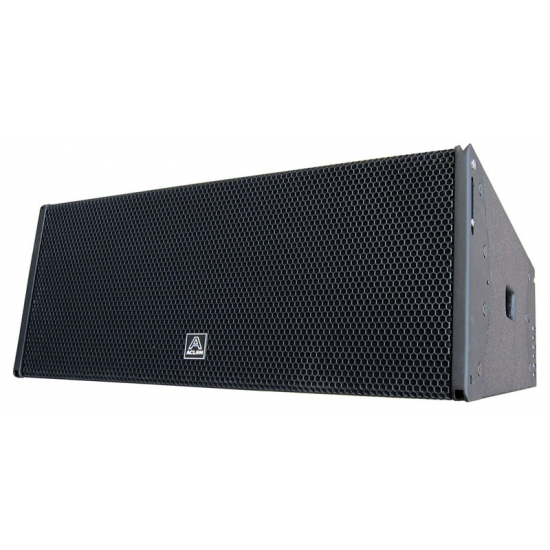

LAT210A dual 10inch 800W active top line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <
    Title  Specification
    System Type    TWO way full range Powered line array system   Bass line array
    Products Model:    LAT208A   LAT210A   LAT212A   LAT118SA   LAT215SA   LAT218SA

    LF driver unit Inch(aluminium)

    Voice Coil Dia, ferrite

     2 x 8"   2 x 10"   2 x 12"    1 x 18" (φ100mm)    2 x 15" (φ100mm)    2 x 18" (φ100mm)

    HF-Compression drivers


     1 x 1.7"(44mm)    1 x 3"(75mm)    /   /   /

    Directivity Dispersion

    patented loaded Horn.

    Exit throat Size

     1"(25mm)throat   1.5"(38mm)throat   /   /   /
    Dispersion Angle (H * V)  H90°x 7°Vertical splay Angle Varies with array size configuration   /   /   /
    System Performance Section
    RMS(Program)  700W /1400W    800W /1600W    1000W /2000W    600W/1200W   1000W/2000W   1200W/2400W
    LF Rated power /RMS  600 W   700W   900W   600W   1000W   1200W
    HF Rated power /RMS  60 W   80W   100W   /   /   /
    Nominal Impedance LF  LF 4 Ohm   LF 4 Ohm   LF 4 Ohm   8 or 4ohm   8 Ohm parallel   8 Ohm parallel
                               HF  HF 8ohm   HF 8ohm   HF 8 ohm   /   /   /
    LF Sensitivity (SPL )Nominal1w/1m  LF  96dB    LF  98dB    LF  98dB    LF  98dB    LF  99dB    LF  99dB
    HF Sensitivity (SPL )Nominal  HF108dB   HF109dB   HF110dB   /   /   /
    LF Nominal Peak SPL  at 1m  LF 118dB    LF 125dB    LF 127dB    LF 128dB    LF 129dB    LF 129dB
    HF Nominal Peak SPL  HF126dB   HF132dB   HF134dB   /   /   /
    Frequency Response( ±3dB)  85Hz - 19KHz   82Hz - 19KHz    64Hz - 19KHz    55Hz - 220Hz
    Usable Range at-6dB  75Hz - 20KHz    73Hz - 20KHz    58Hz - 20KHz    50Hz - 250Hz
    Crossover Frequency point  1.9  KHz  Passive   150 Hz
    PASSIVE Nominal Impedance  4 Ohms
    Harmonic distortion  ≦0.05%
    Appearance Section

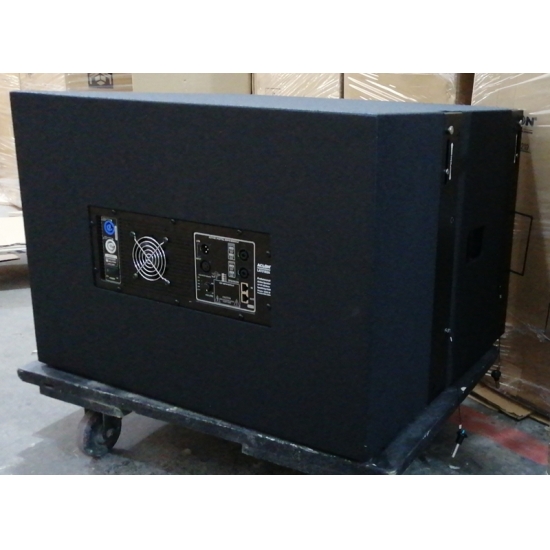

    Input  output inside amps  2* XLR- INPUT /LINK
     2* XLR- INPUT /LINK
    LED indicators /Master volume   Power / Clip  / Master volume
    Outlook  Colours  Black
    Protective Grille  Perforated steel grille
    Appearance   Textured Polyurethane painted finished
    Enclosure material  Baltic Birch 15&18 mm Multi-laminate Plywood finished
    Rigging -Flyings  Handle  2 integrated cabinet handle

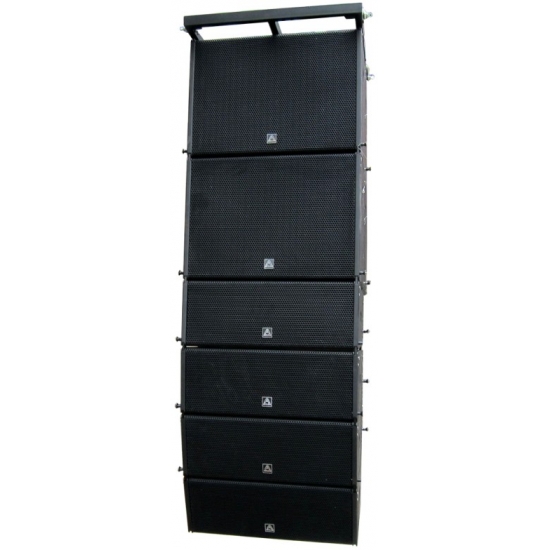

        Suspension (Top frame)  Suspension requires optional LAT line-array Top frame kit , hardware & Pin
    Dimensions Section
    Dimension  W*D*H (mm)  640x335x245   800x445x300   920x570x 370   640x 540x 505   920 x800 x 480    920 x800 x 580
    Shipping Dimensions (mm)  730x430x340   900x540x400   1020x660x 470   740x 640x 650   1020x900 x 580   1020x900 x 680
    Net Weight   (1pcs)  25kg    40 kg     67kg     51kg    70kg   80kg
    Shipping Weight (1pcs)  25 kg    42 kg    70kg    54 kg   75kg   85kg

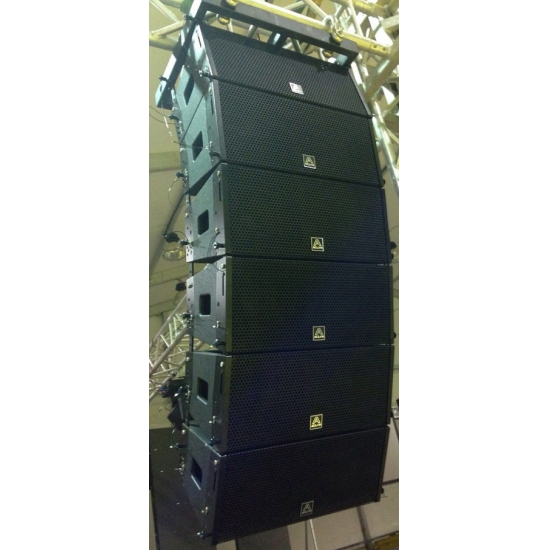

    Recommend Systems:

     Right side: 8pcs full range + 2pcs sub + 1pcs top frame.

     Left side:    8pcs full range + 2pcs sub + 1pcs top frame

  • LAT210A is Dual 10" 800W full range active line array

    HF: 1X1.7" 44mm neodymium driver

    LF: 2X10" aluminum frame woofer

    Sensitivity: 109dB

    Program/peak: 1600W/2400W

    Crossover Frequency point: 1.7 KHz Passive

    Nominal Impedance: 4OHM

    Net weight: 40KG

    Amplifier: DSP amplifier, network control

    Color: black and white

    KEY  FEATURES:
    > Ultra-compact two-way powered line array system was designed to match the demands for easy setup and transportation combined with the perfect sonic results in variety of venue sizes.
    > Clarity, impact and precision for live music, whether they be mobile or fixed installed, these performace provide users with dynamic sonic sound and unparalleled convenience.
    > Dual 8 .10. 12 inch, Two-way higher efficiency -in a powerful, weather-resistant,multipurpose enclosure, powder coated steel grill.
    > High Power capability with dynamic protection -rated at 600-1200watts (IEC)with power protection circuitry to prevent overloads.
    > Perfect coupling and predictable coverage to suit many audience geometries -(90° x 1° to10°),deliver accurately focused sound.

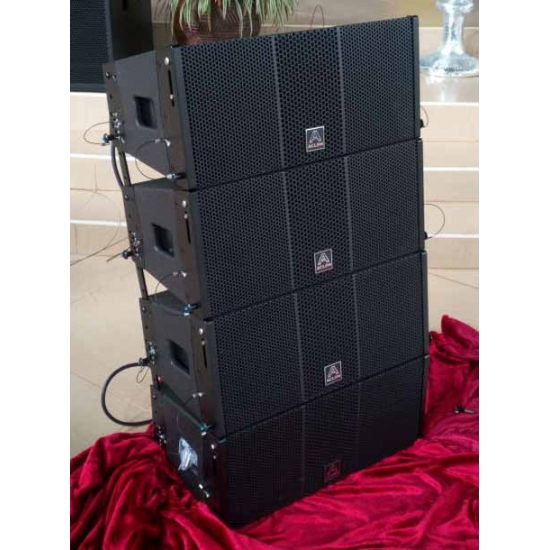

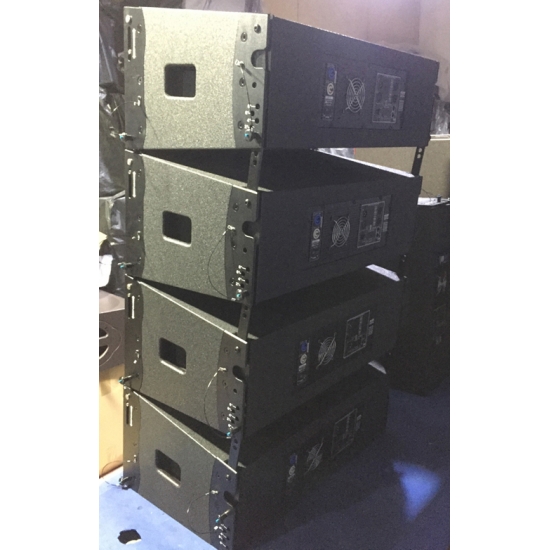

    > Ergonomic, fast and captive rigging system,XLR and Speakon Connectors - for quick, secure audio input setup.  > Powered or Passive an opt input signal way,Plug and play package, quick set-up and easy stacking and flying rigging.

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
