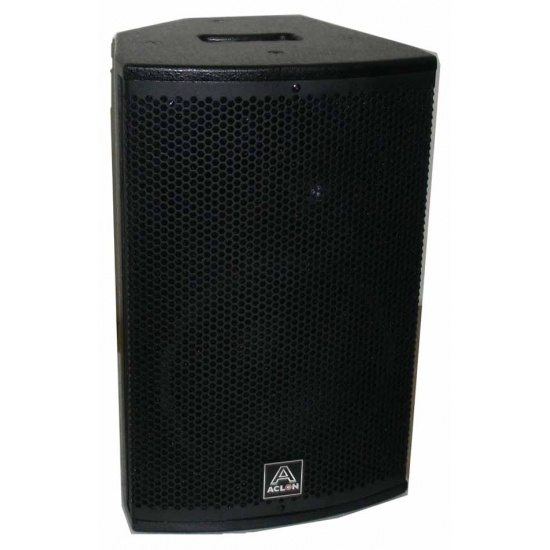

SM12A 12" 400W active full range loudspeaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <
    Title  Specification

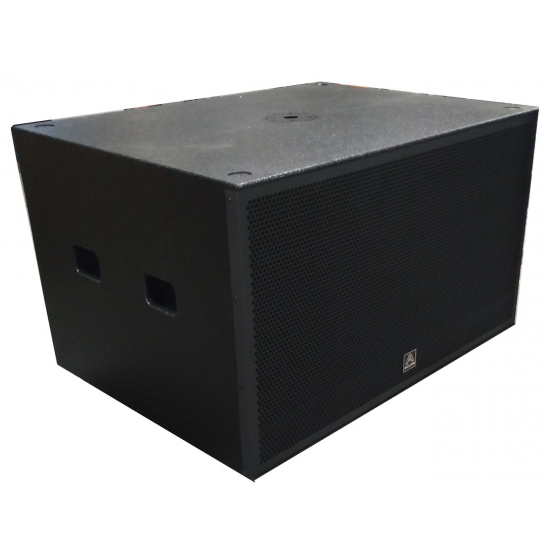

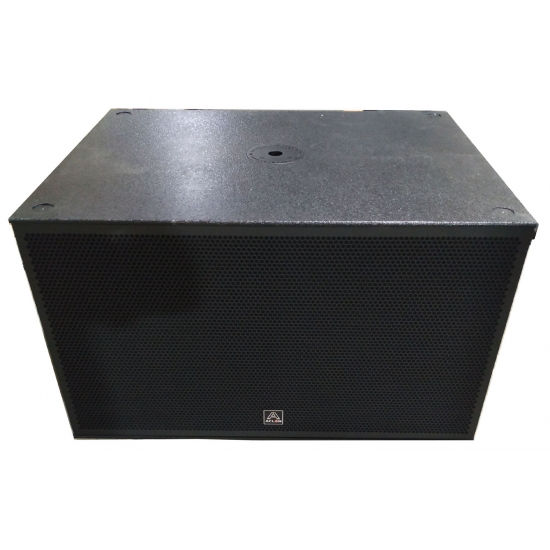

    System Type    2 way full range active speaker system   Subwoofer active
    Products Model:    SM 10A   SM 12A   SM 15A   SM 18SA   SM 218SA

    LF driver unit Inch(aluminium) Voice Coil Diameter

     1 x 10" (φ65mm)    1 x 12" (φ75mm)   1 x 15" (φ75mm)    1 x 18" (φ100mm)

     2 x 18"


    Magnet type size  ferrite,φ156 mm   ferrite,φ170mm   ferrite ,φ190mm   ferrite,φ220mm

      ferrite ,


    HF-Compression drivers  1 x 1.4"(35mm titanium )   1 x 1.7"(44mm titanium )   1 x 3" (72mm titanium)    /   /

    Constant Directivity

    Dispersion Horn.

    Exit throat Size

     1"(25mm)throat   1"(25mm)throat   1.5"(38mm)throat   /   /
    Dispersion(H * V)  80° * 50° Rotatable Horn, 4 Positions   /   /
    System Performance Section
    Rated Power(RMS)  300W   400W   500W   600W   1200W
    Programe Power/Peak Power  600W /900W   800W /1200W   1000W 1500W   1200W /2100W   2400W /3600W

    Sensitivity (SPL 1m-1W)Nominal

     99 dB    99 dB    101dB    99 dB    104dB
    Sensitivity (SPL1m-1W)Wideband  97dB    98dB    98dB

    Nominal Peak SPL @ 1m RMS  121 to 126dB   121 to 126dB    123 to128dB   129 to 135dB   132 to 139dB
    Frequency Response( ±3dB)  65Hz - 19.5KHz    61Hz - 19.5KHz    56Hz - 19.5KHz    42Hz - 250Hz   41Hz - 250Hz
    Usable Range at-6dB  58Hz - 20.5KHz    55Hz - 20.5KHz   50Hz - 20.5 KHz   40Hz - 280 Hz   38Hz - 290Hz
    Crossover Frequency point  2.1  KHz  Passive   2.0  KHz  Passive   1.9  KHz  Passive   120Hz   80-150Hz
    Nominal Impedance  8 Ohms   8 Ohms   8 Ohms   8 Ohms   4 Ohms
    Harmonic distortion  ≦0.05%
    Appearance Section

    Input  output Connector terminals

     2 *NL4MP  Speakon, ( Input Pin±1=±1 ,  Pin±2= ±2 Link&Out  )
    Outlook  Colours  Black or White for choosen
    Protective Grille  Perforated steel grille
    Appearance   Textured Polyurethane painted finished
    Enclosure material  Baltic Birch 15&18 mm Plywood finished
    Rigging -Flyings  Handle  2 integral to cabinet handle, subwoofer have 4 pocket handle
                  Fittings Installation  12x M8 threaded insert , standard spacing
                  Stand fittings  Built in Stand Fitting, 35mm (1"3/8) mounting pole socket

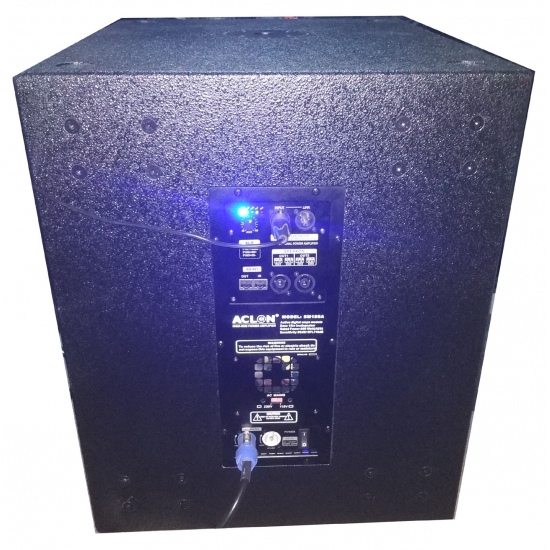

    Power amplifier Section Inside have Digital  amplifier modul class D with  DSP  function
    RMS /(at 4ohm )  300W   400W   500 W   600 W   1200W
    Input  signal-impedance  Balanced  20K  /Unbalanced  10K
    Input signal connector   XLR  input  / Jack 6.3
    Output signal connector  XLR signal output
    TCP/ IP  Connector  TCP/IP  Connector to Coumputer,For DSP function operation
    Power supply(Input power) Select 110/220-230V,50/60Hz
    Mains Input power connection Powercon   (or  Standard IEC connector)
    Power Switch  (Fuse) ON / OFF     (200-250V T3.15-5A)
    Powered Processor Section
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry   Class D & AB
    LED indicators   Power /Red .Clip-Red.
    volume switch Min to Max  Master volume
    DSP FUNCTION  DSP function operation
    Inside Connect terminals  inside 2*LF+2 *HF, ( LF output Pin±1=±1 ,  HF output Pin±2= ±2  )
    Dimensions Section
    Dimension  W*H*D (mm)  351×505×316   390×595×358   465×695×456   570×830×695   570×1310×805
    Dimension  W*H*D (inch)  13.8*19.9*12.48   15.4*23.5*14.1   18.3*27.4*17.95   22.4x32.7x27.4   22.45x51.57x31.7
    Shipping Dimensions (mm)  420 x 580x 380   470x670x440   540x770x530   650x910x775   650 x 1390x880
    Net Weight   (1pcs)  17 kg  (37.4lbs)    22kg  (48.4 lbs)   33kg  (72.6 lbs)    56kg  (123 lbs)   93 kg (204lbs)
    Shipping Weight (1pcs)  19 kg (41.8 lbs)   25 kg (55 lbs)   36 kg (79 lbs)   59 kg (129 lbs)   97 kg (213lbs)
  • KEY  FEATURES:
    > Ultra-compact two-way ACTIVE(POWERED) system and Bass, Attractive and professional appearance.
    > 10.12.15 inch, 2-way higher efficiency - in a lightweight, multipurpose system, acoustically transparent steel grille
    > High Power capability with dynamic protection -rated at 200-1000 watts with power protection circuitry to prevent overloads.

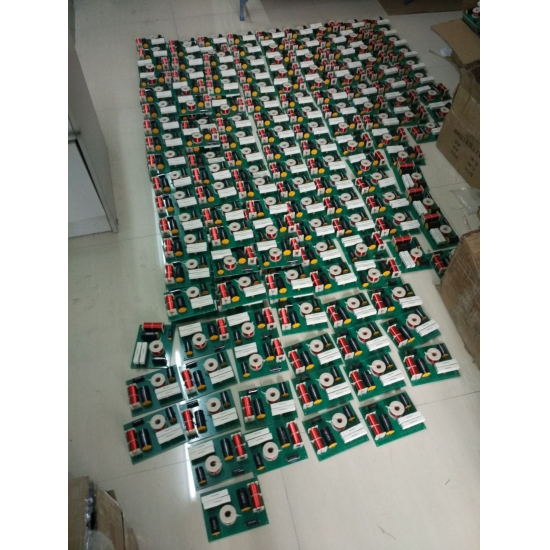

    > Electronic protection on high frequencies - internal crossover,which divides frequencies to each transducer with minimum losses
    > Advanced Directivity Rotatable Waveguide -(80° x 50°), deliver accurately focused sound, enclosure's any mounted orientation.
    > Modern Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
    > Easy and simple Rigging ,Two Parallel Speakon Connectors - for quick, secure audio input setup.
    > 35 mm pole sockets and 12 x M 8 threaded insert - included for versatile mounting options.

    . Mid or Larger clubs, disco bars hotel and restaurants
    . Stadium Sports and mid. large exhibition spaces.
    . Theater places performance expand sound systems.
    . Audio & video presentations sound systems.
    . Fixed Installations system and Live sound reinforcement
