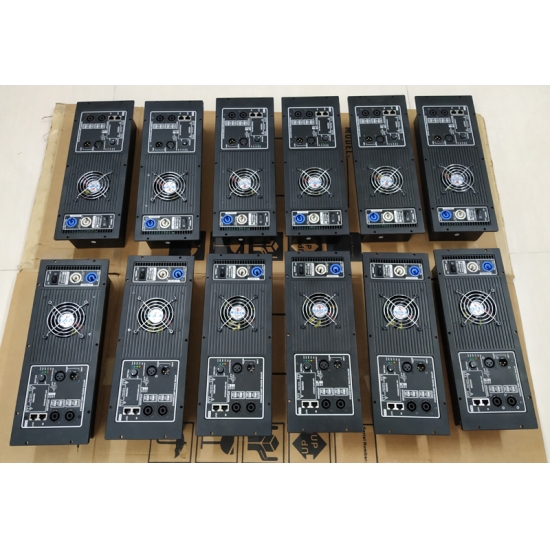

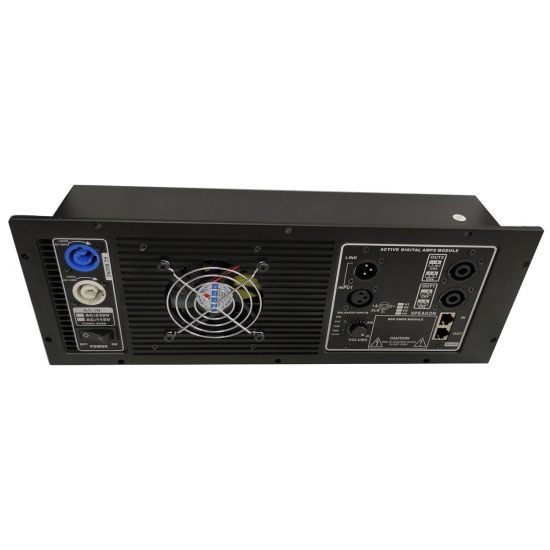

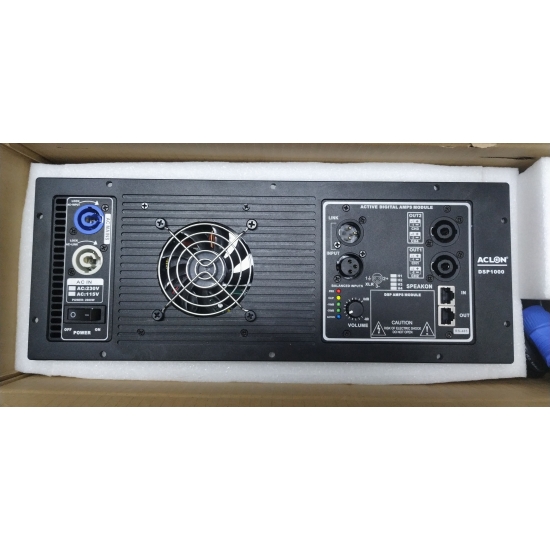

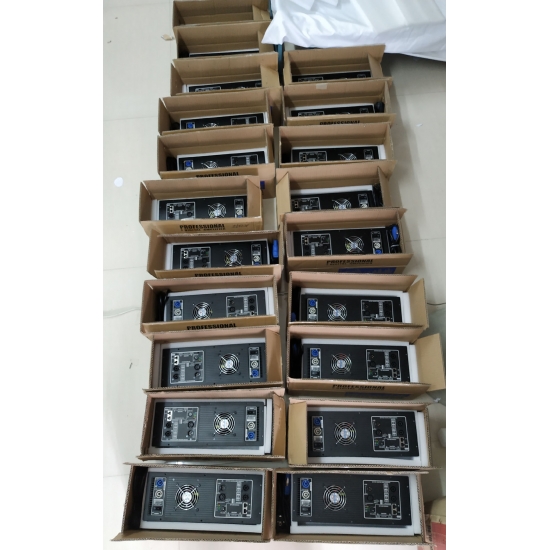

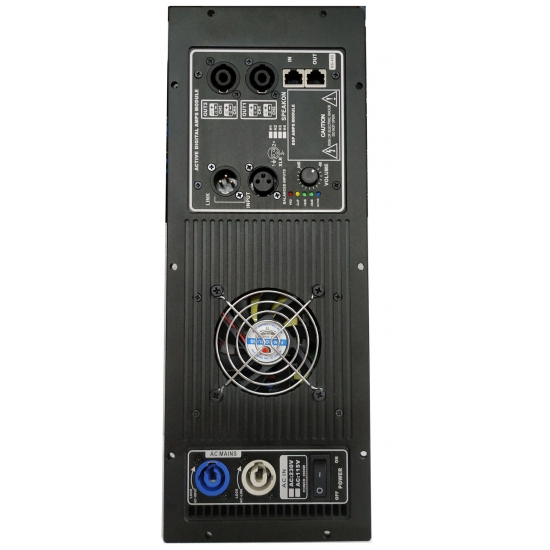

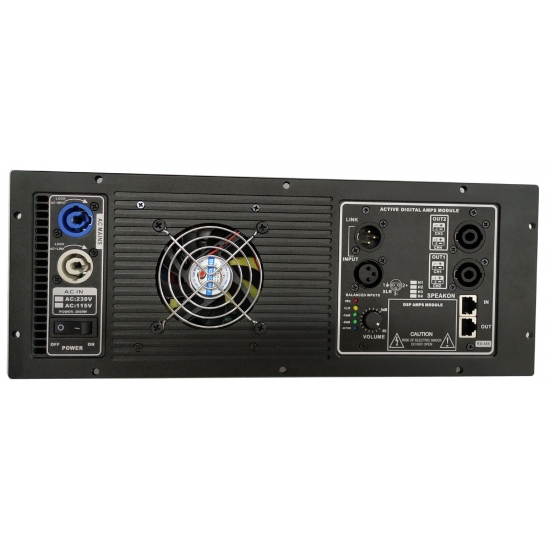

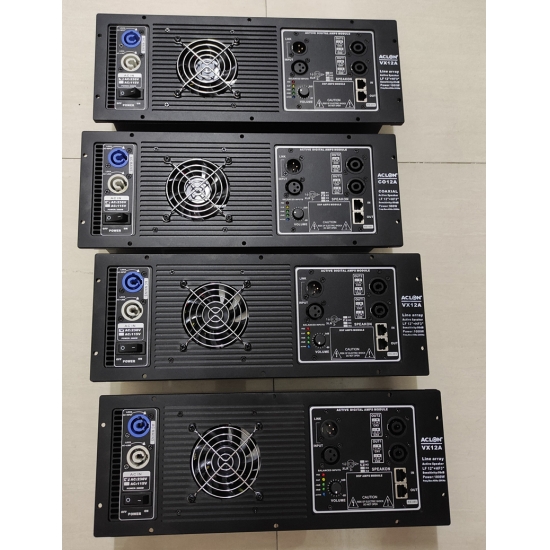

DSP 3X600W Amplifier module< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

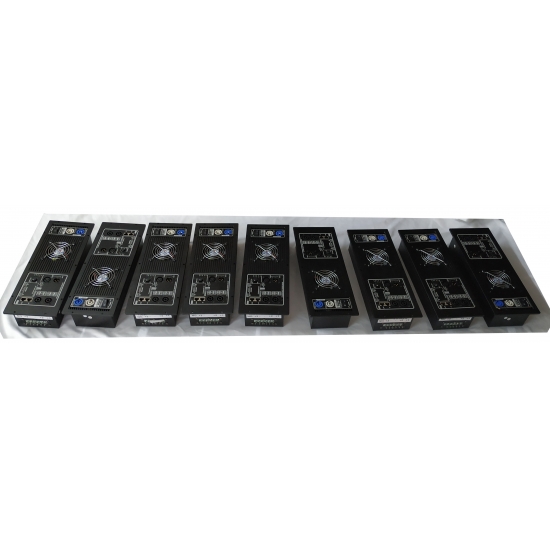

  • DSP series amplifier modules, including 1 ch, 2 ch, ch 3 and 4 ch, suit for all kind of speaker.

    1.Select high quality imported raw materials, such as transistor, IC, capacitors, etc

    2.Advanced class D circuit, inside have aluminum heatsink, better cooling system,

    3.efficiency reached more than 92%, low calorific value, more stable and reliable and durable performance.

    4. The 1200W power only 3.82 KG, is currently on the market a strong power, stable performance and advanced technology of one of the active amplifier module products.

    4.With DSP software connected to the computer through the RS - 485 control. More convenient and more flexible applied to different tour events

    5.High cost performance, delivery fast.

    suit for all kind of speaker.

    Model DSP500 DSP3500 DSP313 DSP4500 DSP1000 DSP21000
    Channel 2 channel 3 channel 3 channel 4 channel 1 channel 2 channel
    Output Power 600W+150W 2*600W +150W  2*600W +1200W 4X600W LF 1200W 2*1200W
    Output Power 960W+250W 2*960W+250W 2*960W+1920W 4X960W 1920W 2*1920W
    Output Circuit  LF Class D
    Input impedance Balance/20K     Unbalance /10K
    Frequency response 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω)
    SLEW RATE >60V/μs
    S/N RATE >105 dB
    PROTECTION DC, short circuit, over load, clip limit, over heat,
    POWER SUPPLY AC220V/50Hz.±10%  /  AC110V/60Hz.±10%  according to customer’s needs
    DIMENSION (mm) 376mm*142.5*82mm
    N.WKG) 3.8 kg

    Build in DSP active module, lightweight, high reliability, work stable.

    DSP is build with 30 different presets. Users can choose the presets according to their needs via PC.

  • 8" line array speaker

    10" line array speaker

    12" line array speaker


    8" stage monitor speaker

    10" stage monitor speaker

    12" stage monitor speaker

    15" stage monitor speaker

  • DSP3500 amplifier module software

Related Tags : DSP control module active speaker lightweight amplifier module active line array DSP module
