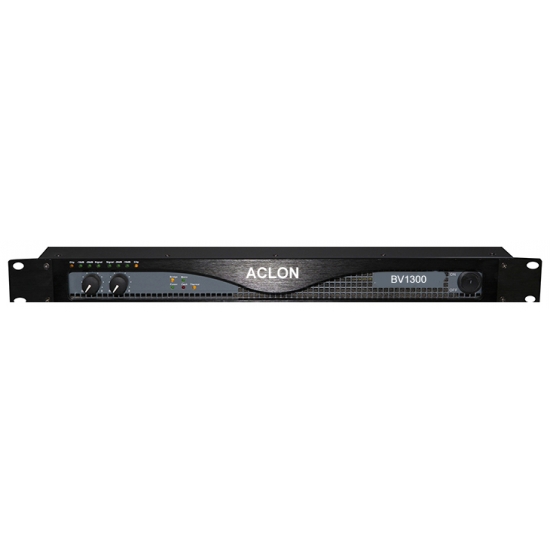

BV1300 8000W 2U two channel digital amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • BV series 1U class D digital amplifier will work very well installed into live concert, auditorium, and performance venues.

    It can make fat profit base on high reliability, good quality. And enable you to have a competitive edge in the market.



    Feature:

    1. Class D circuit

    2. Lightweight, 7KG

    3. High reliability, work stable at 2ohm.

    4. Comprehensive protection: DC protect, short circuit protect etc

    5. Power supply AC: 100-240V


    Two Channel Digital amplifier-BV series
    Product Mode BV1300 BV2000 BV2800
    Rated Output Power 8ohm(EIAJ THD=1%,1kHz) 2x1300W 2x2000W 2x2800W
    Rated Output Power 4ohm(EIAJ THD=1%,1kHz) 2x2300 2x3500 2x4700
    Rated Output Power 2ohm(EIAJ THD=1%,1kHz) 2x4000 2x6000 2x7700
    8ohm bridge 4600W 7000W 94000
    4ohm bridge 8000W 12000W 15400
    power consumpition: 220V / 110V 9A /18A 13A / 26A 17A / 34A
    Maximum RMS voltage swing(THD=1%,1kHz) 101V 126V 149V
    voltage gain(dB) 39.7  39.7  42.0
    Slew Rate(at 1kHz,LPF bypassed) 50V/us 50V/us 50V/us

    Input Sensitivity

    (at rated output power or voltage ,1kHz)

    1Vrms 1Vrms 1Vrms
    THD+N (10% rated powertypical) 0.05% 0.05% 0.05%
    IMD-SMPTE  (10% rated powertypical) 0.05% 0.05% 0.05%
    DIM30  (10% rated powertypical) 0.05% 0.05% 0.05%
    Crosstalk (1kHztypical) -70 -70 -70
    Frequency Response10% rated power 0-2 0-2 0-2
    Input impedance(balanced) 20K 20K 20K
    Damping Factor (100Hz8Ω) ≥500 ≥500 500
    Signal to Noise ratio(A weighted20Hz-20kHz) ≥105 ≥105 ≥105
    Protection amplifier output DC protection, High frequency protection, Harmonic protection
    over temperature protection
    overload protection
     Signal input / output interface

    Signal connection socket: connect the amplifier to audio input / output;

     it can achieve audio sygnal input/output function by connecting the network wires.

    Power supply AC:100-240V(50-60Hz)
    Dimensions(WxDxH,mm) 483*370*44
    Net Weight (KG) 7KG 7KG 7KG

  • . Professional monitor, Meeting Rooms, Square, Activities etc.
    . Indoor applications and small places expand sound systems.
    . The night club,KTV. shake slow bar etc. sound  reinforcement systems.
    . auditorium. Human voice, background music sound systems.
    . Small Installations system and Live sound reinforcement.
