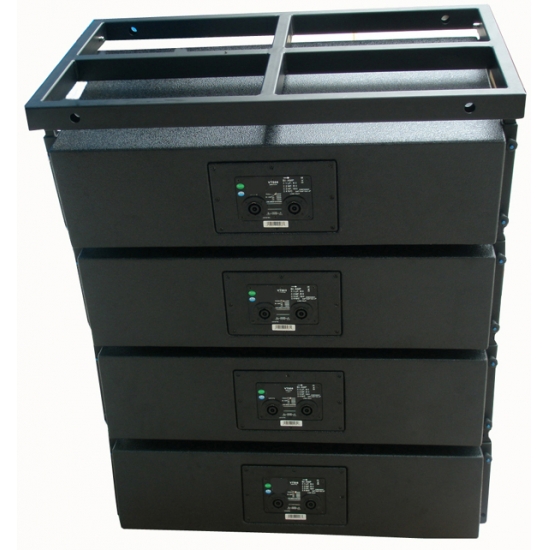

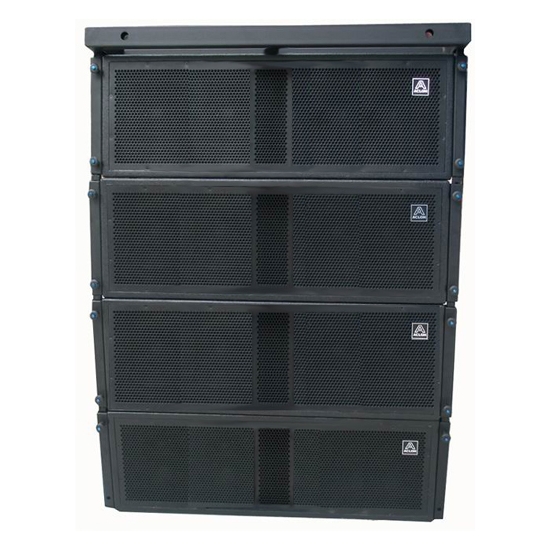

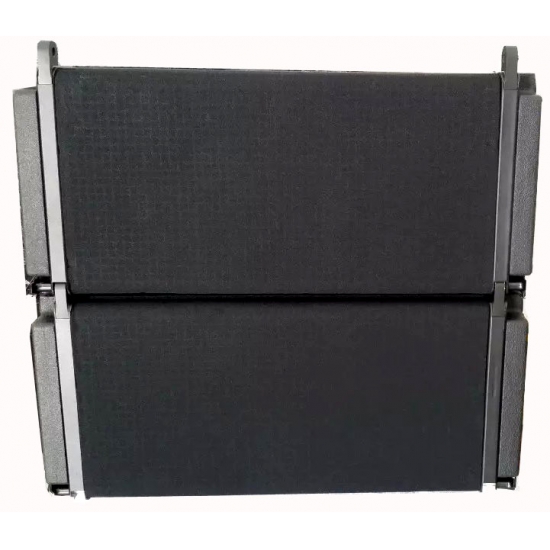

VR310 three way line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • VR310: 2X10" 1000W 3-way full range line array



    Program: 2000W

    Peak power: 3000W


    LF 2*10" neodymium woofer (75mm voice coil)

    MF:1*8" neodymium middle woofer (38mm voice coil)

    HF 2*1.7" neodymium compression driver (44mm voice coil)


    Frequency Response: 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB)

    Nominal Coverage: 90°(H) 10°(V)

    Sensitivity (@1w/1m): HF:112dB; MF:106dB; LF:103dB

    Nominal Impedance: HF/MF/LF:16/16/16Ohm

    Maximum SPL:HF:132/138dB;MF:127/133dB; LF:125/131dB


    Connectors: 2*NL4

    Materials: 15mm 18mm birch multi-plywood

    Finish: Black water paint


    Grille: Black epoxy mesh grille with acoustically reticulated cloth

    Rigging: 0,1 ,2,3,4,5,7.5 ,10 degree adjustable


    Weights: 39kg

    Dimension (H*W*D): 300*700*570mm

  • VR310 compact line array feature:

    1. Birch plywood 18mm, weather-resistant, scratch-resistant;

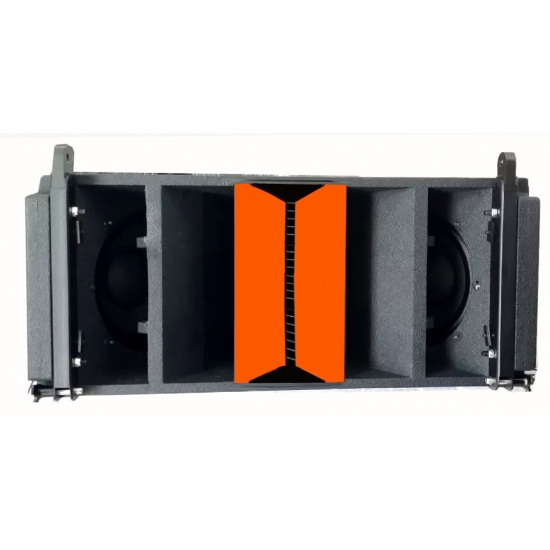

    2. Wave guide horn

    3. Imported drivers, powerful & perfect sound.

    4. Compact & multipurpose enclosed. It can hang in the air or stack on the ground.

    5. Black or white color

    6. Normal impedance: 8ohm

    7. Hardware is included, just plug and play

  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement

Related Tags : dual 10 inch compact speaker birch plywood 2 way speaker indoor and outdoor speaker

Previous :VR10 10inch compact line array speaker
