RS150 subwoofer line array speaker< back

zoom in zoom out

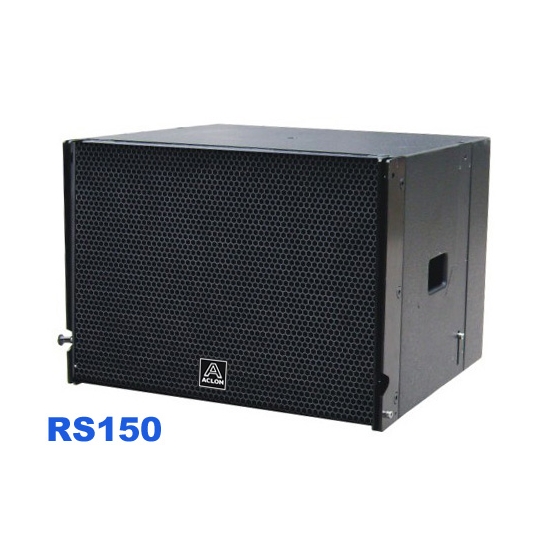

Model	RS 6	RS150
System Components Type	6" Two way Line array speaker	15" Subwoofer speaker
Driver Unit Low Freq.	2X 6.5 IN（160mm）ferrite magnet	1x15 IN（380mm) ferrite magnet
compression driver	1.7 IN（44mm) compression driver	/
Frequency Range(-10dB)	65Hz-19 KHz	35Hz-220Hz
Frequency response (-3dB)	70Hz-18 KHz	35Hz-200Hz
Coverage Angle	H90°× 14° Switch able	/
Harmonic distortion	≦0.05%	≦0.10%
Impedance ( Passive)	RS6=16 ohms (4pcs RS6=4 ohms)	8 ohms
Rated power /Program/Peak	Passive:250W/500W/1000W	400W/750W/1500W
LF Rated power	LF:200W/400W/800W	800-1500W
HF Rated power	HF:50W/100W/200W	/
System Maximum SPL	120dB SPL peak(passive)	118dB SPL peak
	LF:105dB,HF:127dB	/
System Sensitivity(1w@1m)	97dB SPL(passive mode)	98dB SPL
System Sensitivity(1w@1m)	LF:97dB,HF:125dB	/
Connection	2×NL 4MP Speakon	2×NL 4MP Speakon,
Crossover	2.3 KHz (Passive)	/
Suspension/Mounting	Suspension requires optional RS line-array frame kit/10 eyebolt
Enclosure finish	Baltic Birch 15 mm 11-ply Plywood finished with textured Polyurethane
Cabinet Finish	Black DuraFlex finish
Grill Perforated	Power coated,black,16-gauge perforated steel
Dimensions(H×DxW)	245×322×595mm	525×540×595mm
Net Weight	14kg	35kg
Gross Weight	16kg	38kg
Recommend combo	16pcs RS6 + 4 pcs RS150
