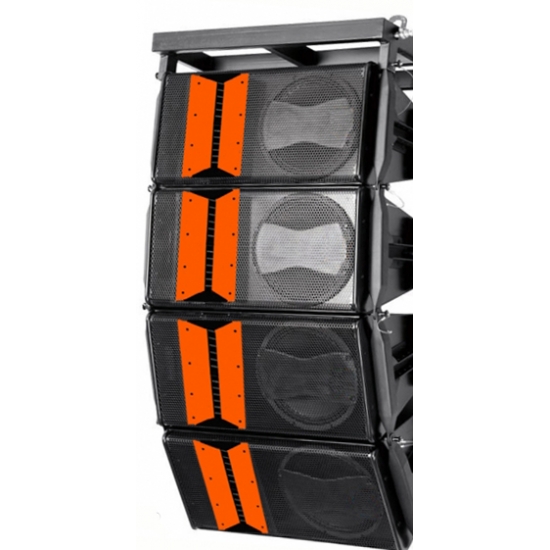

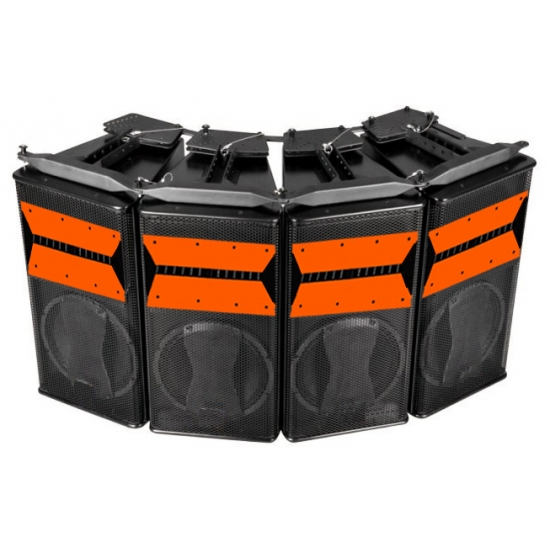

NX12 Two way line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • Drivers

    1x3” HF driver

    Woofer

    1x12” LF woofer

    Rated power

    500W

    Program

    1000W

    Peak power

    1500W

    Frequency Response.

    56Hz-18kHz(±3dB)

    Nominal Impedance

    Sensitivity

    99dB/w/m

    Max continuous SPL

    125dB

    Max peak SPL

    131dB

    Dispersion Angle

    120°H x 12°V

    Cabinet construction

    15mm plywood

    Cabinet Finish

    Polyurethane coating

    Input/output

    2 x NL4R speakon

    Dimension (mm)

    344*675*378mm

    Net Weight (kg)

    31kg

  • NX12 compact line array feature:

    1. Birch plywood 18mm, weather-resistant, scratch-resistant;

    2. Wave guide horn

    3. Imported drivers, powerful & perfect sound.

    4. Compact & multipurpose enclosed. It can hang in the air or stack on the ground.

    5. Black or white color

    6. Normal impedance: 16ohm

    7. Hardware is included, just plug and play

    8. Net weight: 29KG



  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement

Related Tags : 12 inch compact speaker birch plywood 2 way line array loudspeaker indoor and outdoor speaker

Next :VR310 three way line array speaker
