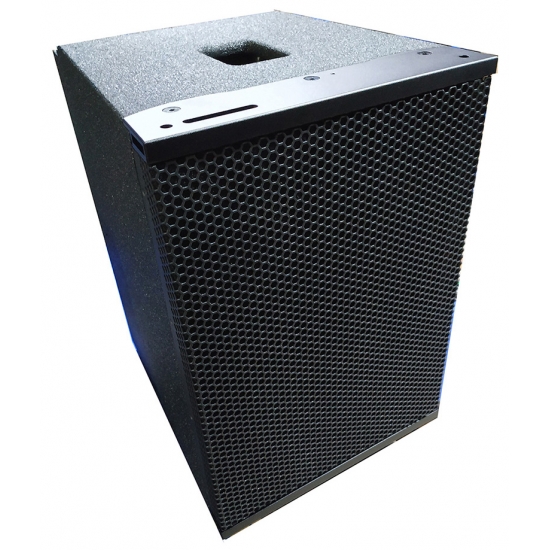

LT12 Two way line array speaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • LT12  top + LT18S sub coaxial line array system


    The system has high output, ultral-compact structure and light weight,

    and you can simply use a speaker system for situations of 100 or 5000 people.


    We have designed a new strong low frequency coaxial 12-inch neodymium magnetic speaker,

    1x3 inch neodymium HF frequency driverwhich is the best combination of a low intermediate frequency

    system specifically designed for LT12 passive line array speaker, it can achieve high sound pressure level.


    Whilst minimizing distortion,especially at high sound pressure levels,The dispersion has strong constant directivity ,

    with uniform sound cover,Suitable for halls demanding high definition and touring.

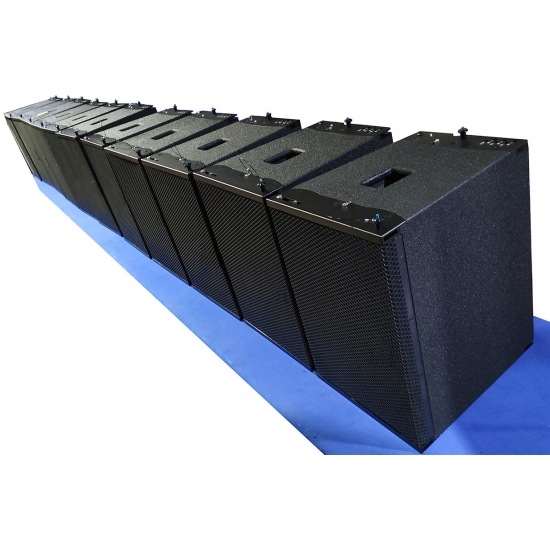

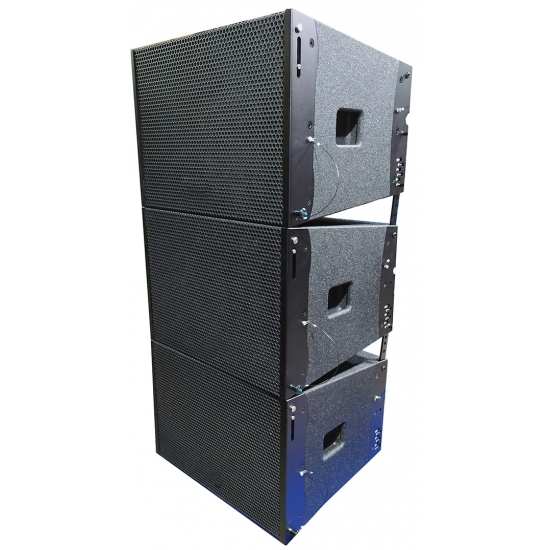

    Designed to be hanging or ground stacked in various array configurations.


    Products Model:   LT12 LT15 LT18S
    LF woofer unit 2X12" coaxial 2X15" coaxial 18"
    HF neodymium drivers 3" 3" /
    Horn & Exit throat Size  1.5"(38mm)   1.5"(38mm)  /
    Dispersion Angle (H * V)  H90°x 8°   H90°x 8°  /
    Power rating / Program 900W/1800W 1100W/2200W 1000W/2000W
    Peak power 2700W 3300W 3000W
    Nominal MAX /Peak SPL 139dB 139dB 135dB
    Frequency Response( ±3dB)  43Hz - 20KHz    40Hz - 20KHz    25Hz - 250Hz
    Crossover point  1.8 KHz     1.8  KHz     150 Hz
    Nominal Impedance 16 ohms 16 ohms 8 ohm

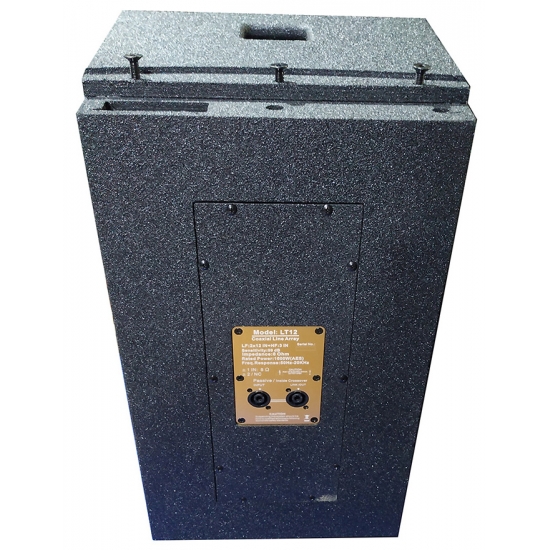

    Input  Connector  2*NL4    2*NL4    2*NL4
    Dimensions (mm) 460*395**550 490*420*620  620x600X430
    Net weight  29 kg     33kg     56kg

  • LT12 compact coaxial line array feature:

    1. Birch plywood 18mm, weather-resistant, scratch-resistant;

    2. Wave guide horn

    3. Imported drivers, powerful & perfect sound.

    4. Compact & multipurpose enclosed. It can hang in the air or stack on the ground.

    5. Black or white color


  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement

Related Tags : 12 inch compact coaxial speaker birch plywood 2 way line array loudspeaker indoor and outdoor speaker
