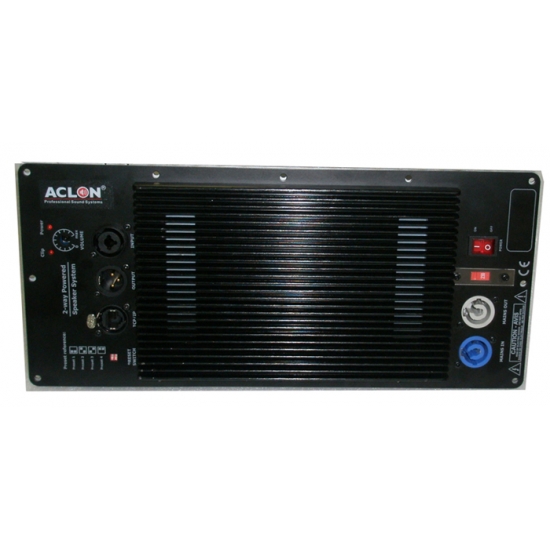

DSP Amplifier module< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • ACLON DSP series is designed to match pro audio system self powered.

    its flexible output power is available for different cabinet: 2 ways active speakers,3 ways line arrays, subwoofer, column box etc.


    DSP3500 feature:

    1. It is 2X500W LF+ 150WHF at 8 ohm stereo

    2. Class D circuit

    3. DSP amplifier module, lightweight, high reliability

    4. Network control

    5. Suit for single 8 to 15 inch and dual 8-inch, dual 10-inch speaker

    6. Spare parts: software, powercon power cable

    7. Net weight: 3.2KG



    Model DSP500 DSP3500 DSP21800 DSP1800 DSP21200
    Channel 2 channel 3 channel 2 channel 1 channel 2 channel
    Application

    Suit for 6, 8, 10, 12

    , 15inch speaker

    Suit for dual 10,

    dual 12 line array

    suit for 4, 6, 8 inch

    Suit for 15,

     18” sub speaker

    Suit for sub

    RS6, LAT208A,

    VRX932A, VERA10

    LAT210A, LAT212A column speaker SM18S, LAT118S SM218S, SB28
    Output Power

    500W/8ohm LF

     +150W/8ohm HF

    2*500W/4ohm LF

    +150W/8ohm HF

    1200W+ 300W LF 1200W 2*1200W
    Output Power 800W+250W 2*800W+250W 1800W+500W 1800W 2*1800W
    Output Power LF: 1150W 2*1150W+400W / / /
    Output Circuit  LF Class D Class D Class D Class D Class D
    Output Circuit  HF Analog (class AB)
    Input impedance Balance/20K     Unbalance /10K
    Frequency response 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω)
    SLEW RATE >60V/μs
    S/N RATE >105 dB
    DAMPING FACTOR >500
    COOLING SYSTEM HEATSINK AND FANS
    PROTECTION DC, short circuit, over load, clip limit, over heat,
    POWER SUPPLY AC220V/50Hz.±10%  /  AC1100V/60Hz.±10%  according to customer’s needs
    DIMENSION (mm) 350 X 143 X 82MM (customised)
    N.WKG) 3.8 kg





    Products Model:    DSP900 (full range)   DSP900A (full range)
    Rated Power(RMS) 1X1000W/4ohm LF + 200W/8ohm HF 2X500W/4ohm LF + 200W/8ohm HF
    Input  signal-impedance  Balanced  20K  /Unbalanced  10K
    Input signal connector   XLR input
    Output signal connector  XLR signal output
    TCP/ IP  Connector TCP/IP  Connector to Coumputer,For DSP function operation
    Power supply(Input power) Select 110/220-230V,50/60Hz
    Mains Input power connection Powercon   (or  Standard IEC connector)
    Power Switch  (Fuse) ON / OFF     (200-250V T3.15-5A)
    Recommend Crossover Frequency point  1.0 -1.8KHz
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry    Class D & AB
    LED indicators   Power /Red .Clip-Red.
    volume switch Min to Max  Master volume
    DSP FUNCTION  DSP function operation
    Damping factor  ≥300
    S/N ratio  ≥90dB
    Inside Connect speaker terminals  inside 2*LF+2 *HF, ( LF output Pin±1=±1 ,  HF output Pin±2= ±2  )
    Dimension  W*H*D (mm) 433*183*90 433*183*90
    Net Weight   (1pcs) 5kg 5kg
    Application Suit for dual 10, dual 12, dual 15inch line array Suit for 3-way line array
    ARC10A, ARC12A, LAT212A, LAT215A, K212A  VT212, VT215, VT4888, K2, K1, VERA36A
