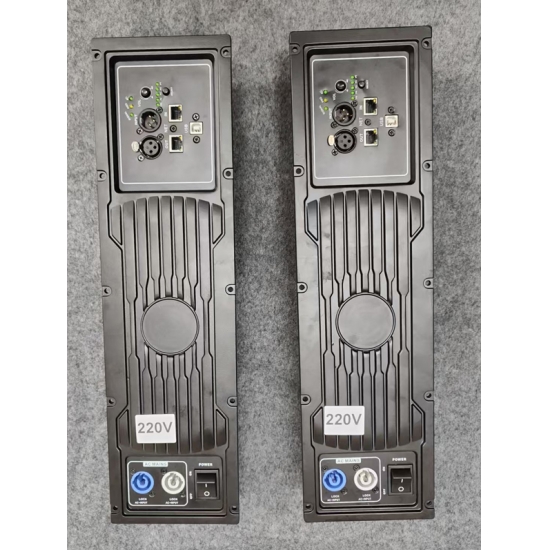

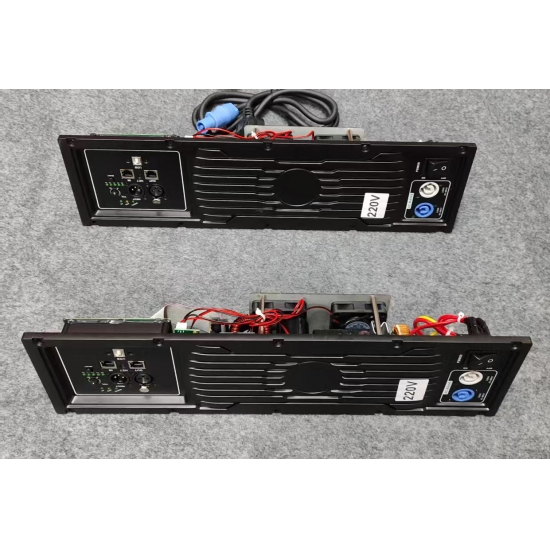

DSP SERIES
Compact DSP-Integrated Class D Amplifier Modules
The DSP Series is a range of high-efficiency Class D amplifier modules with integrated DSP control, designed for OEM active speaker systems and professional audio integration.
Combining high power density, compact design, and advanced DSP processing, the DSP Series delivers stable, efficient, and reliable performance for modern active loudspeaker systems.
With efficiency exceeding 92%, ultra-low heat generation, and lightweight construction, the series is optimized for compact powered speakers where space, thermal management, and performance are critical.
Equipped with RS-485 DSP control software, the system allows precise tuning, real-time adjustments, and flexible configuration for a wide range of touring and installation applications.
KEY FEATURES
✔ Integrated DSP Control Platform
✔ High-Efficiency Class D Amplification
✔ Efficiency >92%
✔ Compact OEM Module Design
✔ RS-485 PC Control Software
✔ Lightweight Design – Only 2.3kg
✔ High Power Density Output
✔ Advanced Protection System
✔ Low Heat Dissipation
✔ Ideal for Active Speaker IntegrationTECHNICAL DATA
Parameter DSP500 DSP900 DSP1300 DSP2300 Amplifier Topology Class D Class D Class D Class D DSP Control RS-485 Software RS-485 Software RS-485 Software RS-485 Software Output Power (4Ω) 500W + 300W 900W + 400W 1300W 2300W + 500W Output Power (8Ω) 350W + 150W 650W + 200W 800W 1500W + 300W Frequency Response 20Hz – 20kHz (±0.5dB) 20Hz – 20kHz 20Hz – 20kHz 20Hz – 20kHz THD+N <0.04% <0.04% <0.04% <0.04% Signal-to-Noise Ratio >105dB >105dB >105dB >105dB Slew Rate >60V/μs >60V/μs >60V/μs >60V/μs Damping Factor >500 >500 >500 >500 Input Impedance 20kΩ Balanced / 10kΩ Unbalanced Same Same Same Input Connectors Balanced Analog Input Same Same Same Output Circuit Class D Class D Class D Class D Protection DC / Short / Overload / Clip / Thermal Same Same Same Power Supply AC 110V / 220V ±10% Same Same Same Operating Temperature 0°C – 45°C 0°C – 45°C 0°C – 45°C 0°C – 45°C Dimensions (W × H × D) 479 × 132 × 70 mm 479 × 132 × 70 mm 479 × 132 × 70 mm 479 × 132 × 70 mm Net Weight 2.3 kg 2.3 kg 2.3 kg 2.3 kg
-
8" line array speaker
10" line array speaker
12" line array speaker
8" stage monitor speaker
10" stage monitor speaker
12" stage monitor speaker
15" stage monitor speaker
- DSP3500 amplifier module software
