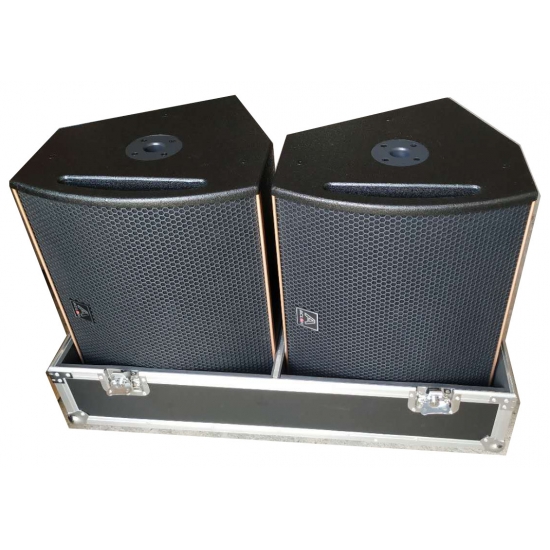

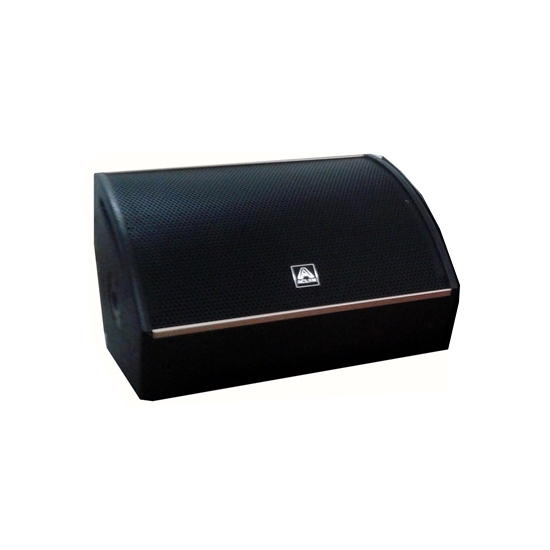

CO15A 15inch 500W active coaxial monitor loudspeaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <
    Title  Specification
    System Type    2 way full range coaxial speaker
    Products Model:    CO 10A   CO 12A   CO 15A

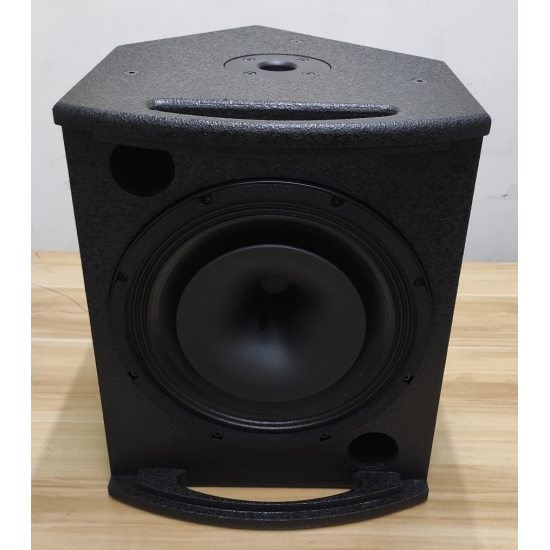

    LF driver unit Inch(aluminium frame)

    Voice Coil Diameter

     1 x 10" (φ65mm)    1 x 12" (φ65mm)   1 x 15" (φ75mm)
    Magnet type size  ferrite,φ160 mm   ferrite,φ170mm   ferrite ,φ190mm
    HF-Compression drivers     (Titanium )  1 x 1.7"(44mm titanium )   1 x 1.7"(44mm titanium )   1 x 3" (72mm titanium)

    Constant Directivity Dispersion

    Exit throat Size

     1"(25mm)throat   1"(25mm)throat   1.5"(38mm)throat
    Dispersion(H * V)  80° Axi-symmetric
    System Performance Section
    Rated Power(RMS)  300W   400W   450W
    Programe Power /Peak Power  600W /900W   800W /1200W   900W 1350W
    Sensitivity (SPL 1m-1W)Nominal  97 dB    98 dB    99dB
    Sensitivity (SPL1m-1W)Wideband  95dB    96dB    97dB
    Nominal Peak SPL @ 1m RMS  119 to126 dB    121 to 126dB   121 to 126dB
    Frequency Response( ±3dB)  65Hz - 19KHz    61Hz - 19KHz    56Hz - 19KHz
    Usable Range at-6dB  58Hz - 20KHz    55Hz - 20KHz   50Hz - 20 KHz
    Crossover Frequency point  2.0  KHz  Passive   1.9  KHz  Passive   1.8  KHz  Passive
    Nominal Impedance  8 Ohms   8 Ohms   8 Ohms
    Harmonic distortion  ≦0.05%
    Appearance Section
    Input  output Connector terminals  2 *NL4MP  Speakon, ( Input Pin±1=±1 ,  Pin±2= ±2 Link&Out  )
    Outlook  Colours  Black or White for choosen

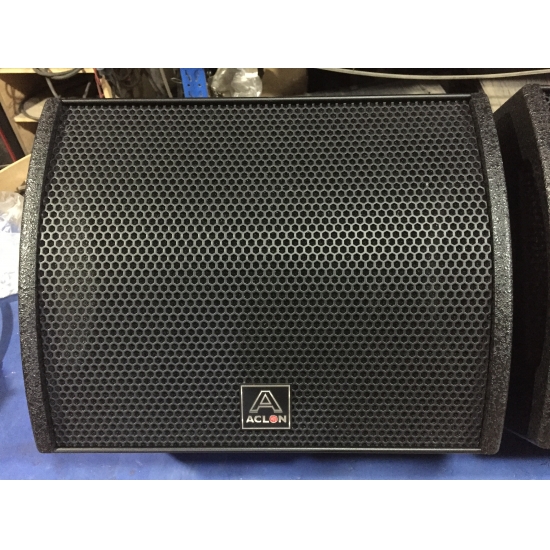

    Protective Grille  Perforated steel grille
    Appearance   Textured Polyurethane painted finished
    Enclosure material  Baltic Birch 15/18 mm Plywood finished
    Rigging -Flyings  Handle  1 on side cabinet handle
                  Fittings Installation  8 x M8 threaded insert , standard spacing
                  Stand fittings  Built in Stand Fitting, 35mm (1"3/8) mounting pole socket

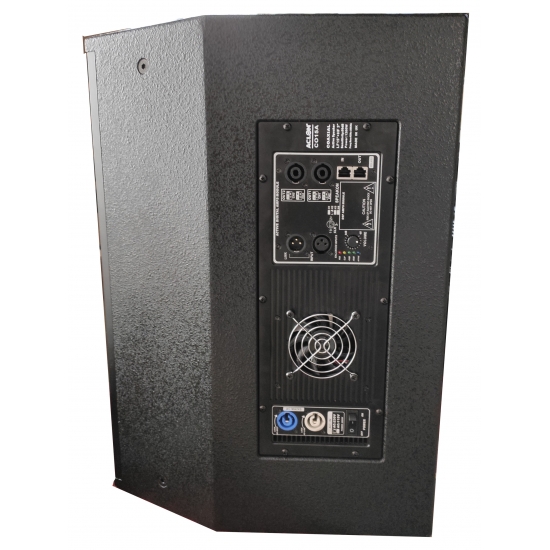

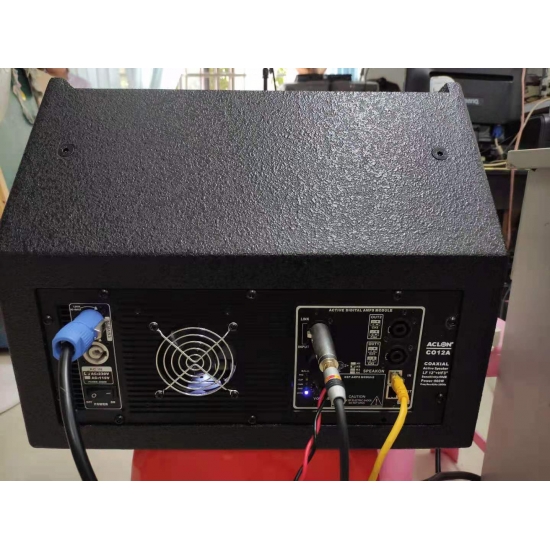

    Power amplifier Section Inside have Digital  amplifier modul class D with  DSP  function
    Rated Power(RMS) /(at 4ohm )  300W   400W   500 W
    Input  signal-impedance  Balanced  20K  /Unbalanced  10K
    Input signal connector   XLR  input  / Jack 6.3
    Output signal connector  XLR signal output
    TCP/ IP  Connector  TCP/IP  Connector to Coumputer,For DSP function operation
    Power supply(Input power) Select 110/220-230V,50/60Hz
    Mains Input power connection Powercon   (or  Standard IEC connector)
    Power Switch  (Fuse) ON / OFF     (200-250V T3.15-5A)
    Powered Processor Section
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry   Class D & AB
    LED indicators   Power /Red .Clip-Red.
    volume switch Min to Max  Master volume
    DSP FUNCTION  DSP function operation
    Inside Connect speaker terminals  inside 2*LF+2 *HF, ( LF output Pin±1=±1 ,  HF output Pin±2= ±2  )
    Dimensions Section
    Dimension  W*H*D (mm)  330×450×300   400×545×380   440×585×400
    Shipping Dimensions (mm)  390 x 510x 360   460x600x440   500x640x460
    Net Weight   (1pcs)  17.5kg     22.5kg    32.5kg
    Shipping Weight (1pcs)  20 kg    25 kg    35 kg

    COMMENT: As part of a policy of continual improvement, ACLON reserves the right to  change specifications without notice.
    > Multi-purpose coaxial compact& portable system,sonic performance,clarity& precision by coaxial point source structure design.
    > 10.12.15 inch, 2-way higher efficiency - in a lightweight, multipurpose system, acoustically transparent steel grille
    > High-power of great dynamic and smooth response in a space-saving design -rated at 200-1000 watts.
    > Electronic protection on high frequencies - internal crossover,which divides frequencies to each transducer with minimum losses
    > Advanced Directivity Waveguide provides unmatched phase coherence hence giving a constant sonic signature even off-axis.
    > Durable&Modern Style, Weather Resistant Enclosure and Components - ideal for a wide range of applications.
    > Easy and simple of integrated flying hardware system ,Two Parallel Speakon Connectors - for quick, secure audio input setup.
    > 35 mm pole sockets and 8 x M 8 threaded insert - included for versatile mounting options.

    . Versatile, Rental companies and professional musicians
    . Outdoor Sports and mid. large exhibition spaces.
    . Small venues performance expand sound systems.
    . Arrayable FOH ( Front of House) Enclosure .Houses of worship
    . Fixed Installations system and  portable PA sound reinforcement
