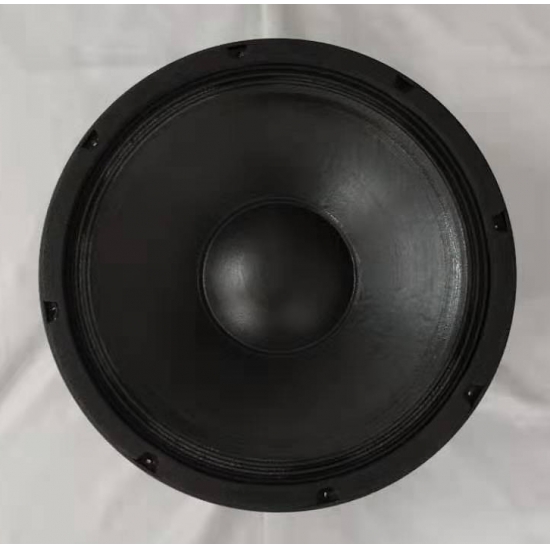

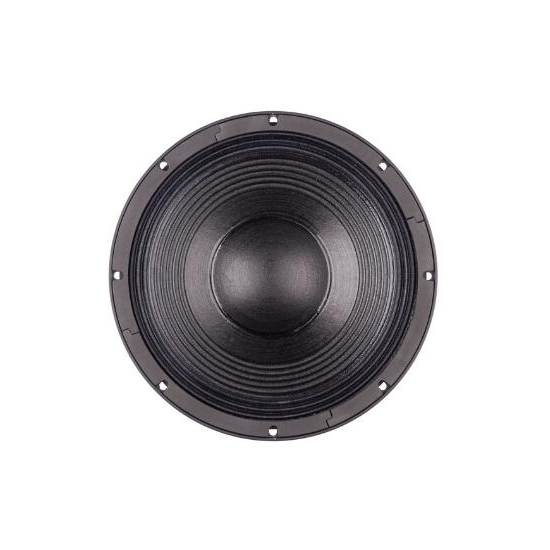

12inch neodymium speaker unit< back
- Specifications
- Feature
- Application
- Download
-
12" full range speaker unit
Model 12NW100 12UN76 12CBX100 12UY76 1262HPL 12XN75 12CY75 Inch 12" neo 12" neo 12" ferrite 12" ferrite 12" neo 12" LF+ 3" HF neo 12" ferrite Rated power (AES) 1000W 450W 1000W 500W 400W 500W 400W Program power (AES) 2000W 900W 2000W 1000W 800W 1000W 800W Voice coil diameter 100mm (4 inch) 76mm (3 inch) 100mm (4 inch) 76mm (3 inch) 76mm (3 inch) 76mm (3 inch) 76mm (3 inch) Basket material Aluminum frame Aluminum frame Aluminum frame Aluminum frame Aluminum frame Aluminum frame Aluminum frame Magnet type magnet N40H magnet N40H magnet Y35 magnet Y35 magnet N40H magnet N40H magnet Y35 Sensitivity/Nominal 96dB (±3dB) 99dB (±3dB) 95dB (±2dB) 98dB (±3dB) 96 dB 1W/1m 99dB (±1dB) 97dB (±3dB) Fs 41Hz 50Hz 42Hz 54Hz 56.8 Hz 42Hz 54Hz Total factor (Qts) 0.22 0.2 0.26 0.18 0.34 0.19 0.18 Standard impedance 8 OHM 8 OHM 8 OHM 8 OHM 8 ohms 8 OHM 8 OHM Net weight 8kg 4kg / 4.5kg 11.8kg 8.5kg / 9.3kg 6.5kg 5.0kg 8.5kg / 9.3kg -
1. High powerful neodymium HF driver.
- line array speaker, loudspeaker
Related Tags : Powerful neodymium HF driver DE800 neodymium driver ferrite powerful speaker
Previous :100T220 high powerful driver
