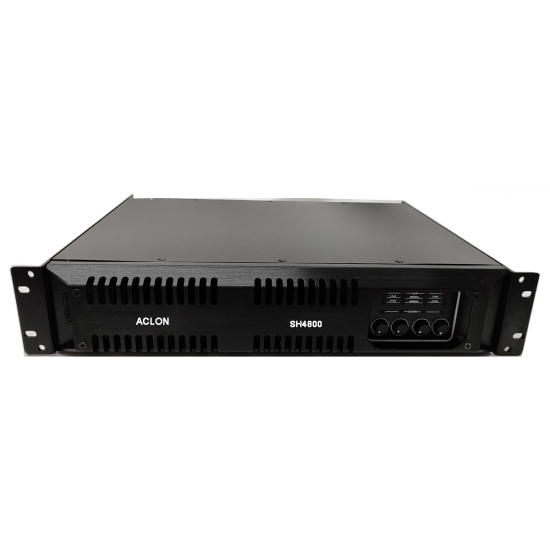

  • SH4800 4×800W Four Channel Lightweight Power Amplifier

    The SH4800 is a professional four-channel Class D power amplifier designed for reliable performance and lightweight portability. Delivering 4×800W output power at 8 ohms, it provides flexible system configuration for full-range speakers, monitor systems, and distributed audio applications.

    With a compact 2U rack design and lightweight construction, the SH4800 is easy to transport and install while maintaining stable performance and low power consumption.

    The amplifier incorporates comprehensive protection functions including DC protection, overload protection, short circuit protection, clip limiting, and thermal protection to ensure long-term reliability.

    ACLON provides OEM and ODM manufacturing services including private labeling, front panel customization, logo printing, packaging design, and complete professional audio solutions.


    Model Channels 8Ω Stereo 4Ω Stereo Net weight / KG
    SH4600 4CH 4 × 600W 4 × 900W 11kg
    SH4800 4CH 4 × 800W 4 × 1250W 11kg
    SH41200 4CH 4 × 1200W 4 × 1800W 11kg
    SH41600 4CH 4 × 1600W 4 × 2000W 11kg
    SH600 2CH 2 × 600W 2 × 900W 6kg
    SH800 2CH 2 × 800W 2 × 1250W 6kg
    SH1200 2CH 2 × 1200W 2 × 1800W 6kg
    SH1600 2CH 2 × 1600W 2 × 2000W 6kg



    Parameter Specification
    mplifier Topology Class D
    Frequency Response 20Hz – 20kHz (±0.5dB)
    THD+N <0.04%
    Signal-to-Noise Ratio >105dB
    Damping Factor >1200
    Channel Separation >70dB @1kHz
    Input Impedance 20kΩ Balanced / 10kΩ Unbalanced

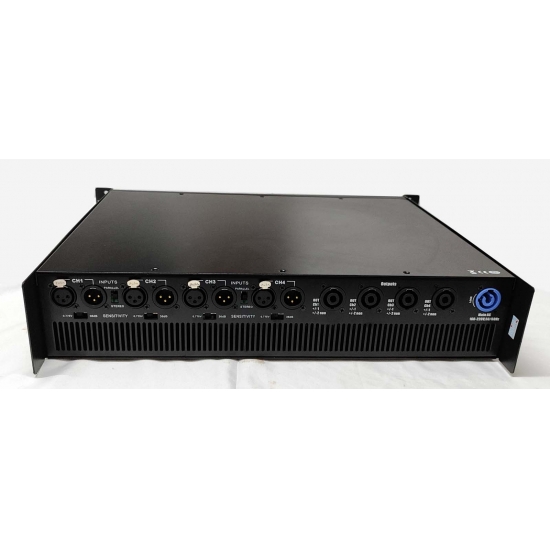

    Input Connectors Balanced XLR
    Output Connectors NL4 SPEAKON
    Protection DC, Short Circuit, Overload, Clip Limiter, Thermal
    AC Voltage 110V / 230V AC
    Dimensions (W × H × D) 485 × 88 × 355 mm
    Net Weight 6kg  - 11kg



    Related Products

    • SH41200 4×1200W Switch Amplifier
    • FP10 Four Channel Lightweight Amplifier
    • DH4-1200 Four Channel Digital Amplifier
    • DL420 Four Channel DSP Amplifier
    • B8 1U Four Channel Digital Amplifier





  • • Four-channel Class D amplifier design
    • 4×800W output power at 8 ohms
    • Lightweight 2U rack-mount chassis
    • High damping factor and low distortion
    • Comprehensive protection system
    • Stable operation for touring and installation
    • OEM and ODM customization available

  • • Churches and Worship Spaces

    • Conference Centers

    • Clubs and Entertainment Venues

    • Rental Audio Companies

    • Live Sound Reinforcement

    • Auditoriums and Theaters

    • Fixed Installation Projects

    • Professional PA Systems

  • Download Available:

    • Product Datasheet (PDF)
    • Technical Specifications
    • User Manual
    • OEM/ODM Product Catalogue

    Please contact us for the latest technical documentation and customization options.
  • SH4800 4×800W Four Channel Lightweight Power Amplifier


    Professional OEM/ODM Amplifier Manufacturer


    Designed for churches, rental companies, conference venues, clubs, and professional PA systems with reliable performance, lightweight construction, and flexible four-channel operation.
