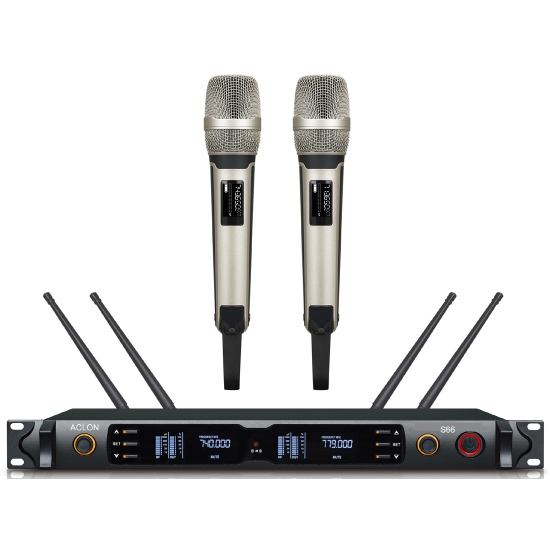

  • S66 UHF True Diversity Wireless Microphone System


    Professional dual-channel UHF wireless microphone system for live events, rental, churches, conferences and professional PA applications.


    The ACLON S66 is a professional UHF true diversity wireless microphone system designed for reliable wireless audio transmission in professional audio applications.


    Operating across the 520–930 MHz UHF range, it provides a 50 MHz adjustable frequency range, 2 × 100 selectable channels and 250 kHz channel spacing.


    With a dual-conversion superheterodyne receiver, 100 dB dynamic range, >105 dB integrated signal-to-noise ratio and 80 Hz–18 kHz audio response, the S66 is suitable for vocal, speech and presentation applications.


    It can be used by professional audio distributors, rental companies, event production companies, churches, system integrators and fixed-installation projects.


    Key Features

    • True diversity UHF wireless microphone system

    • 520–930 MHz UHF frequency range

    • 2 × 100 selectable channels

    • 50 MHz adjustable frequency range

    • 250 kHz channel spacing

    • Dual-conversion superheterodyne receiver

    • 100 dB dynamic range

    • 105 dB integrated signal-to-noise ratio

    • 80 Hz–18 kHz audio response ±3 dB

    • ≤0.5% total harmonic distortion

    • 30 mW / 3 mW selectable RF output power

    • BNC / 50 Ω RF interface

    • 2 × AA 1.5 V battery power supply

    • Up to 10 hours operating time at 30 mW

    • Up to 15 hours operating time at 3 mW


    System Specifications

    Parameter Specification
    Frequency Range UHF 520–930 MHz
    Modulation Broadband FM
    Adjustable Frequency Range 50 MHz
    Number of Channels 2 × 100
    Channel Spacing 250 kHz
    Frequency Stability ≤ ±0.005%
    Dynamic Range 100 dB
    Maximum Deviation ±45 kHz
    Audio Response 80 Hz–18 kHz ±3 dB
    Integrated Signal-to-Noise Ratio >105 dB
    Total Harmonic Distortion ≤0.5%
    Operating Temperature -10°C to +50°C


    Receiver Specifications

    Parameter Specification
    Receiver Type Dual-Conversion Superheterodyne
    First IF 110 MHz
    Second IF 10.7 MHz
    RF Interface BNC / 50 Ω
    Sensitivity 12 dBμV (80 dB S/N)
    Sensitivity Range 12–32 dBμV
    Spurious Suppression ≥75 dB
    Maximum Output Level +10 dBV


    Transmitter Specifications

    Parameter Specification
    Bodypack Antenna 1/4-Wavelength Whip Antenna
    Handheld Antenna Built-in Helical Antenna
    RF Output Power High: 30 mW / Low: 3 mW
    Spurious Suppression ≥60 dB*
    Power Supply 2 × AA 1.5 V Batteries
    Operating Time >10 hours at 30 mW
    Operating Time >15 hours at 3 mW





    Applications

    Live Events

    Suitable for vocal, speech and presentation applications in live performances, stage events and event production.


    Rental & Event Production

    A flexible wireless microphone solution for rental companies and professional event production systems.


    Churches & Worship

    Suitable for vocal, speech and general PA applications in churches and worship venues.


    Conferences & Presentations

    Designed for conferences, meetings, presentations, corporate events and public-address applications.


    Entertainment Venues

    Suitable for clubs, entertainment venues and other professional audio environments.


    Fixed Installation

    Can be integrated into professional PA and AV systems requiring wireless microphone capability.



    Professional Audio System Integration


    The S66 can be integrated into professional audio systems together with line array speakers, point-source speakers, subwoofers, power amplifiers, DSP amplifiers and digital signal processors.

    For project applications, ACLON can provide product matching and system configuration support according to the application and system requirements.


    OEM / ODM Manufacturing


    ACLON supports professional audio OEM/ODM projects for distributors, rental companies, system integrators and professional audio brands.

    OEM/ODM requirements may include:

    • Product branding and logo

    • Product configuration

    • Packaging

    • Project-specific requirements

    • Production requirements


    Contact ACLON to discuss your wireless microphone project, target application and quantity requirements.


    Suitable For

    • Professional Audio Distributors

    • Rental Companies

    • Event Production Companies

    • System Integrators

    • Churches and Worship Venues

    • AV Companies

    • Entertainment Venues

    • Professional Audio Brands

    • OEM / ODM Buyers


    Contact ACLON


    Looking for a professional UHF wireless microphone system for rental, events, installation, distribution or OEM/ODM projects?


    Contact ACLON to discuss your application, quantity and product requirements.
