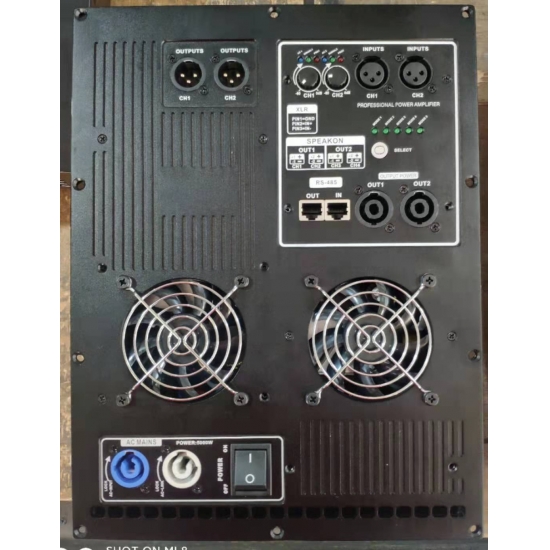

DSP 2X1200W+600W Amplifier module< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

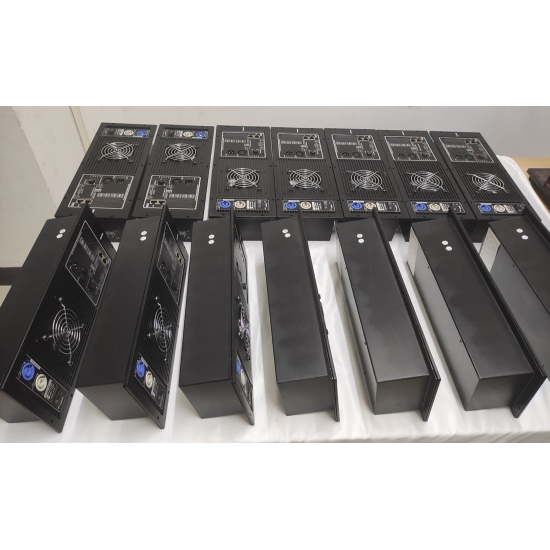

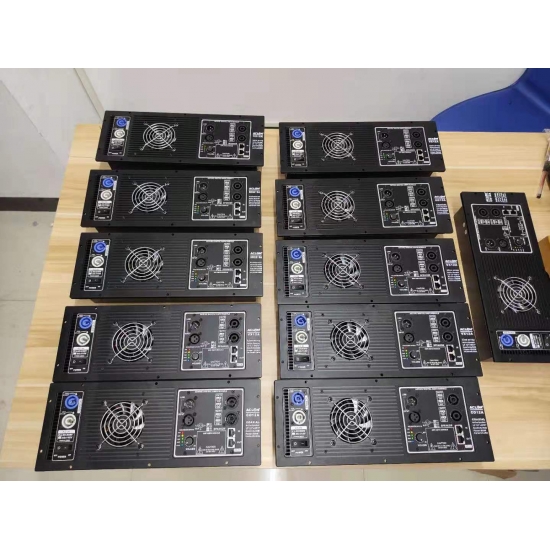

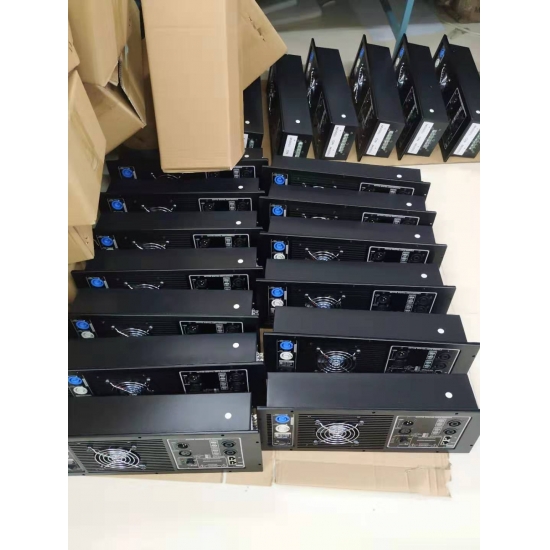

  • DSP series amplifier modules, including 1 ch, 2 ch, ch 3 and 4 ch, suit for all kind of speaker.

    1.Select high quality imported raw materials, such as transistor, IC, capacitors, etc

    2.Advanced class D circuit, inside have aluminum heatsink, better cooling system,

    3.efficiency reached more than 92%, low calorific value, more stable and reliable and durable performance.

    4. The 1900W power only 7 KG, is currently on the market a strong power, stable performance and advanced technology of one of the active amplifier module products.

    4.With DSP software connected to the computer through the RS - 485 control. More convenient and more flexible applied to different tour events

    5.High cost performance, delivery fast.


    suit for all kind of speaker.

    Model DSP312 DSP5700 DSP5600 DSP1612
    Channel 3 channel 3 channel 4 channel 4 channel
    Output Power(8Ω) 2X1200W+600W 1600W+1200W+600W 2*1200W + 2*600W 1600W+ 1200W + 2*600W
    Output Power(4Ω) 2X1900W+950W 2560W+1900W+950W 2X1900W+2X950W 2560W+1900W+2X950W
    Output Circuit  LF Class D
    Input impedance Balance/20K     Unbalance /10K
    Frequency response 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω)
    SLEW RATE >60V/μs
    S/N RATE >105 dB
    DAMPING FACTOR >500
    COOLING SYSTEM HEATSINK AND FANS
    PROTECTION DC, short circuit, over load, clip limit, over heat,
    POWER SUPPLY AC220V/50Hz.±10%  /  AC110V/60Hz.±10%  according to customer’s needs
    DIMENSION (mm) 332mm*253*82mm
    N.WKG) 7 kg


    Build in DSP active module, lightweight, high reliability, work stable.

    DSP is build with 30 different presets. Users can choose the presets according to their needs via PC.

  • 8" line array speaker

    10" line array speaker

    12" line array speaker



    8" stage monitor speaker

    10" stage monitor speaker

    12" stage monitor speaker

    15" stage monitor speaker

  • DSP3500 amplifier module software
