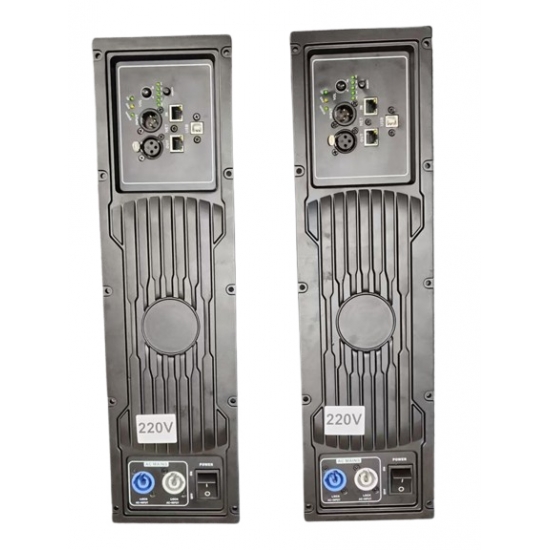

  • DSP 2×900W Professional Amplifier Module



    This DSP 2×900W amplifier module is a high-performance Class D digital power solution designed for active speaker systems, including line array speakers, subwoofers, and full-range PA cabinets.

    With integrated DSP processing, the module allows precise control of crossover, EQ, limiter, delay, and system tuning, making it ideal for OEM active speaker manufacturing.

    The compact and efficient design ensures low heat generation, high power efficiency, and stable long-term operation for professional audio applications.

    ACLON provides OEM and ODM services including DSP tuning, power configuration, PCB customization, interface design, and complete active speaker system integration solutions.

    Parameter DSP500 DSP900 DSP1300 DSP2300
    Output Power (4Ω) 500W + 300W 900W + 400W 1300W 2300W + 500W
    Output Power (8Ω) 350W + 150W 650W + 200W 800W 1500W + 300W
    Amplifier Type Class D
    Frequency Response 20Hz – 20kHz (±0.5dB)
    THD+N <0.04%
    Slew Rate >60V/μs
    Signal-to-Noise Ratio >105dB
    Damping Factor >500
    Input Impedance 20kΩ Balanced / 10kΩ Unbalanced
    Protection DC / Short Circuit / Overload / Clip / Thermal
    Power Supply AC 110V / 220V ±10%
    Dimensions (W × H × D) 479 × 132 × 70 mm
    Net Weight 2.3 kg


    KEY FEATURES

    ✔ Integrated DSP Control Platform
    ✔ High-Efficiency Class D Amplification
    ✔ Efficiency >92%
    ✔ Compact OEM Module Design
    ✔ RS-485 PC Control Software
    ✔ Lightweight Design – Only 2.3kg
    ✔ High Power Density Output
    ✔ Advanced Protection System
    ✔ Low Heat Dissipation
    ✔ Ideal for Active Speaker Integration

    Compatible with 12”, 15” and 18” speaker systems for active PA speaker manufacturing.



  • • 2×900W Class D amplifier module
    • Built-in DSP signal processing
    • High efficiency and low heat design
    • Suitable for active speaker systems
    • Precise crossover and system control
    • Stable performance for OEM production
    • Custom DSP presets available

  • • Active Line Array Systems

    • Active Subwoofer Cabinets

    • Full Range Active Speakers

    • Touring Sound Systems

    • Fixed Installation Audio Systems

    • OEM Speaker Manufacturing

    • Professional Audio Brands

  • Download Available:

    • Product Datasheet (PDF)
    • DSP Function Manual
    • Technical Specifications
    • OEM/ODM Product Catalogue

    Please contact us for latest DSP tuning software and configuration support.
  • DSP 2×900W Professional Amplifier Module

    OEM/ODM Active Speaker DSP Module Manufacturer

    Designed for active speakers, line array systems, and subwoofers with integrated DSP control, high efficiency, and stable Class D power output.
