Model DL46 DL49 DL413 DL415 8ΩStereo Power(RMS) 4X650W 4X900W 4X1300W 4X1500W 4ΩStereo Power(RMS) 4X1300W 4X1800W 4X2600W 4X3000W 2ΩStereo Power(RMS) 4X1690W 4X2340W 4X3380W / THD <0.1% ( 20 Hz - 20 kHz for 1 W) Signal-to-Noise Ratio >112 dBA Damping factor >1000 Channel separation >70 dB Channel separation (Cross talk) Input Sensitivity 0.77V, 1.44V Input Connectors 3-pin XLR, electronically balanced Output Connectors Speakon Class circuitry Class D Cooling Front-to rear airflow, temperature controlled speed. Tour Class Protection short circuit, open circuit, direct voltage, high temperature, radio-frequency, ultralow frequency Dimensions (H×W×D) 1U: 47×488×448mm Net weight (kg) 10.8 kg -

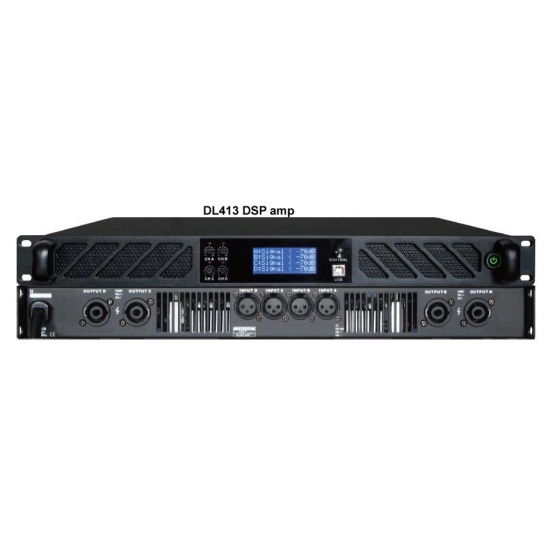

The ACLON DL413 is a high-performance 1U rack-mountable, 4-channel Class D digital power amplifier engineered for continuous professional operation and high-volume OEM tailoring.
High-Efficiency Class D Topography: Delivers maximum power output while minimizing heat dissipation and reducing electricity consumption.
Ultra-Compact 1U Design: Saves critical rack space for mobile touring flight cases and crowded installation environments.
Advanced Switching Power Supply SMPS: Ensures absolute voltage stability and robust low-end performance even under fluctuating power grids.
4-Channel Flexible Routing: Independently configures and drives multiple line array zones, subwoofer configurations, or multi-room stage monitor networks.
Comprehensive Circuit Protection: Features advanced intelligent defense against short circuits, over-current, thermal overload, DC output offset, and VHF signals to protect expensive connected speaker systems.
Premium B2B Manufacturing Quality: Built for long-term reliability and sustainable hardware execution, strictly avoiding low-cost market competition to safeguard your brand reputation.
-
Global OEM and ODM Partnerships: Fully customizable chassis front-panels, specific power tailoring, and private-label branding for European and American professional audio brands.
Professional Audio Wholesalers and Distributors: High-volume manufacturing capacity with stable quality control to support sustainable brand building.
Sound System Integrators and Installers: Ideal high-density channel solution for fixed installations in theaters, stadiums, night clubs, auditoriums, and houses of worship.
-
Please click Contact Now or send an inquiry to our sales product managers to download the following official documentation for the DL413 Amplifier:
ACLON DL413 Official Technical Datasheet PDF
Professional Digital Power Amplifier B2B Price List
ACLON OEM and ODM Hardware Customization Guide
Complete Line Array and Amplifier Matching Selection Catalog
-
Click the print option in your web browser or request the high-resolution printable PDF technical datasheet directly from our sales managers.
