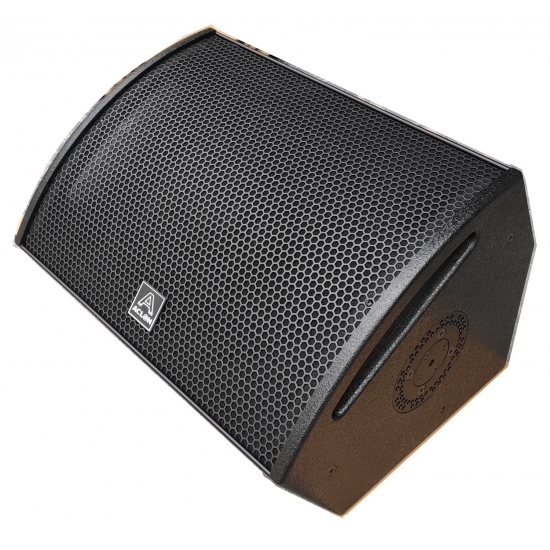

  • CO15A 15 Inch 500W Active Coaxial Monitor Speaker

    The CO15A is a professional active coaxial monitor speaker designed for accurate stage monitoring and high-performance live sound reinforcement. Its coaxial driver design provides point-source audio reproduction, ensuring clear vocals and consistent phase alignment.

    Equipped with a built-in DSP-controlled Class D amplifier, the CO15A delivers stable power output, optimized frequency response, and reliable protection for professional applications.

    Its 15-inch low-frequency driver combined with a high-quality compression driver makes it suitable for concerts, theaters, churches, clubs, and rental sound systems.

    ACLON offers OEM and ODM manufacturing services including private labeling, cabinet customization, DSP tuning, logo printing, packaging design, and complete professional audio solutions.





    Products Model:    CO 10A   CO 12A   CO 15A
    LF driver unit Inch  10"   12"   15"
    HF drivers  1 x 1.7"   1 x 1.7"   1 x 3"
    Dispersion Angle (H * V)  80° Axi-symmetric
    RMS  300W   400W   500W
    Program / Peak power  600W /900W   800W /1200W   1000W 1500W
    MAX Peak SPL  129dB    136dB    138dB
    Frequency Response( ±3dB)  45Hz - 20KHz    40Hz - 20KHz    40Hz - 20KHz
    Crossover Frequency point  2.0  KHz    1.9  KHz     1.9  KHz
    Nominal Impedance  8 Ohms   8 Ohms   8 Ohms
    Input  output inside amps  2* XLR- INPUT /LINK
    LED indicators   Active / Signal / Clip  / Protect
    RS-485 / Network  RS-485 / Network, USB  Connector to Coumputer,For DSP function operation
    Protections   DC protect.High temperature .Short circuit protect, Soft startup protect, overload protect
    Power amplifier Circuitry    Class D
    Dimension  W*D*H (mm)  330×450×300   400×545×380   440×585×400
    Net Weight   (1pcs)  21kg   26kg   37kg

  • • 15-inch active coaxial monitor design
    • Built-in DSP Class D amplifier
    • Point-source sound reproduction for accurate monitoring
    • High SPL with clear vocal performance
    • Stable and reliable touring performance
    • Heavy-duty plywood cabinet
    • OEM and ODM customization available


  • • Stage Monitor Systems
    • Live Concerts
    • Churches and Worship Spaces
    • Clubs and Entertainment Venues
    • Theaters and Auditoriums
    • Rental Audio Companies
    • Professional PA Systems
    • Fixed Installations
  • Download Available:


    • Product Datasheet (PDF)

    • Technical Specifications

    • DSP Control Guide

    • OEM/ODM Product Catalogue


    Please contact us to receive the latest documentation and customization options.

  • CO15A 15 Inch 500W Active Coaxial Monitor Speaker


    Professional OEM/ODM Coaxial Monitor Manufacturer


    Designed for stage monitoring, live performances, churches, and professional PA systems with precise point-source sound and DSP-controlled performance.
