600W DSP digital amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

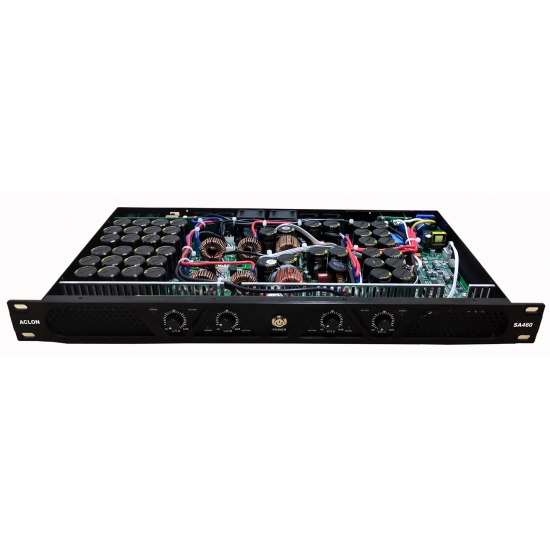

  • SA series is DSP switch lightweight amplifier, 1U rack

    It is Light weight only 7KG, class D circuit.

    Application: church, wedding, nightclub,theater,speech, party, disco etc

    Good quality, good sound, work stable.


    Model SA4600 DSP SA1100 DSP SA600 DSP
    8ΩStereo Power 4X600W 2X1000W 2X600W
    4ΩStereo Power 4X960W 2X1600W 2X960W
    FrequencyResponse 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω)
    Signal-to-Noise Ratio >105 dB
    Damping factor >500
    Cross talk at1 kHz >70 dB

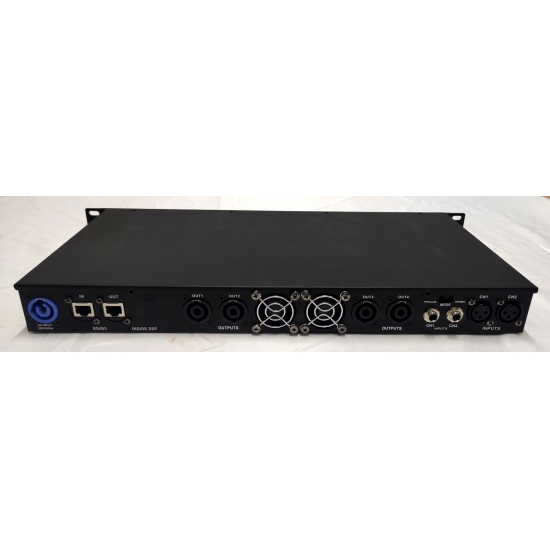

    Input Connectors 3-pin XLR, electronically balanced
    Output Connectors Speakon
    Class circuitry Class D
    Tour Class Protection DC, short circuit, over load, clip limit, over heat,
    Operating voltage 110V; 230V or customize
    Input impedance  Balance/20K     Unbalance /10K
    Dimensions (H×W×D) 1U: 44×480×230mm
    Packing dimension 320*540*100mm
    Net weight (kg) 6KG

  • Feature:

    1. Class D circuit

    2. Lightweight, 6KG

    3. High reliability, work stable at 4ohm.

    4. Comprehensive protection: DC protect, short circuit protect etc

    5. Power supply AC: 230V / 110v

  • Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
