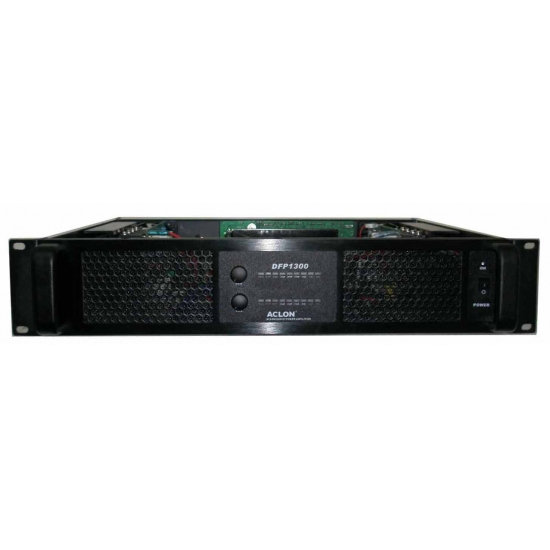

TITLE Specification Product Model: DFP1300 DFP1500 DFP1800 Rated Power 8ohm stereo 2x300 W 2x500 W 2x750 W (1KHz，THD+N=0.1﹪) 4ohm stereo 2x450 W 2x750 W 2x1200 W
2ohm stereo 2x600 W 2x1000 W 2x1500 W Mono Bridge 8ohm bridge 900 W 1500 W 2300 W
4ohm bridge 1000W 2000W 3000W Protection DC protect、Current inrush protect. Short circuit protect、High temperature protect. ACL.(Active Clip Limiting).IGM(Instantaneous Gain Modulation) Protection Input over load protect (Limiter) 、Output over load protect、Soft startup protect. Soft turn Off protect Crossover By Pass 20 Hz-22 KHz (-3 dB)
High/Low Pass(HPF/LPF) 120 Hz ( Variable Switch 80-250Hz) (-3 dB) Controls Front Panel Power switch.Ch1.Ch2 Volume Knob. Led Indicators.
Rear Panel grounding / filter /sensitivity switch, operation mode switch.Adjust Crossover LED indicators Protection-Red.Clip-Yellow.Signal-Green,Bridge-Green,Parallel-Green,Active-Green.Turn ON-Green System Performance Section Short circuit input
≤3mV Frequency response 1W 8ohm stereo 20 Hz-20 KHz (±0.5dB) Sensitivity 8ohm stereo&1KHz 0.775V、1.0V、1.44V（± 5％） Mode switch
Stereo、Bridge、Parallel Cooling system front-to-back air flow two efficient fans with Continuously variable speed Connectors Input / Link connectors Male & Female XLR (Each channel) Output connectors Speakon & Binding posts Input impedance(ohm) Balanced /Unbalanced 20K ohm , 10K ohm Input CMRR (1kHz)
> -65dB Hum and Noise
> -105dB Crosstalk 20Hz~20KHz atRMS 8ohm ≥70dB S/N ratio 8Ω Rated Power 8ohm ≥100dB Phase response 1W&8ohm 20Hz~20KHz within ±10° Slew rate
≥35 V/us Intermodulation distortion
≤0.20% Total harmonic distortion 8Ω 20Hz~20KHz at RMS ≤0.05% Power supply US & Canada /Europe /Asia 110V/60Hz, 230V/50Hz, 220V/50Hz.( factory configured ) Damping factor 1KHz&8ohm ≥400 ≥500 ≥600 Filter capability Filter Storage 80000 uF 80000 uF 80000 uF Output Circuitry
Class AB&H Class H Class H Dimension and shipping section Dimension (W×D×H) Chassis /mm 2U: 480x430x88mm Packing dimension Unit /mm 570x530x165mm Net Weight (kg)
16 18 20.5 Gross Weight (kg)
19 21 23.5 -
Feature:
1. Elegant aluminum panel
2. 2U rack, class H circuit
3. Have crossover can adjust high/low pass
4. Grounding switch, filter switch, sensitivity switch, adjustable crossover
5. Complete protection system
-
Application:
Theater places expand sound systems.
Touring FOH system
Audio & video presentations sound system
Mobile or permanently live concert reinforcement
-
Power amplifier and line array speaker manufacturer center
