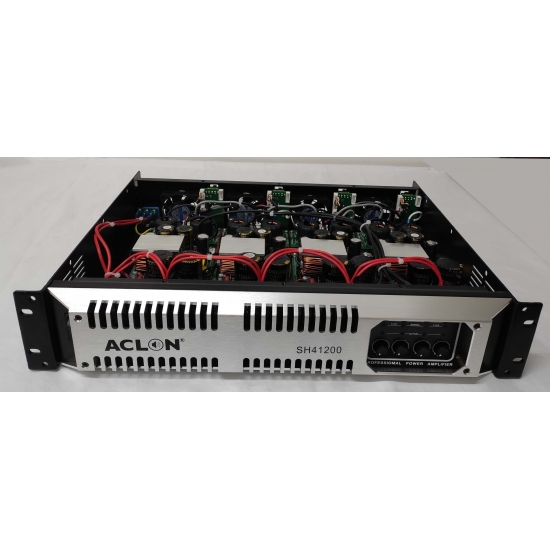

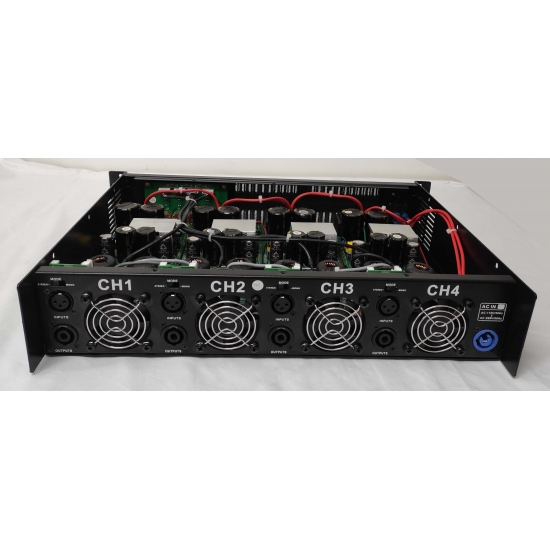

SH41200 4X1200W switch amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • SH series is economy switch amplifier, from 500W to 1200W have 2CH and 4CH for you choose.

    It is Light weight only 7KG, class D circuit. Application: church, wedding, nightclub,theater,speech, party, disco etc

    Good quality, good sound, work stable.

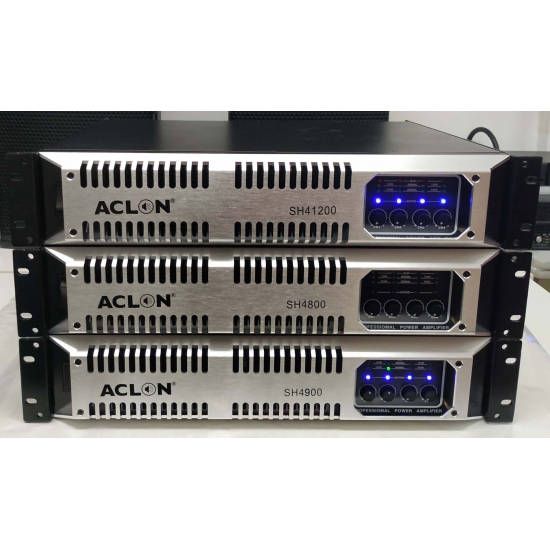

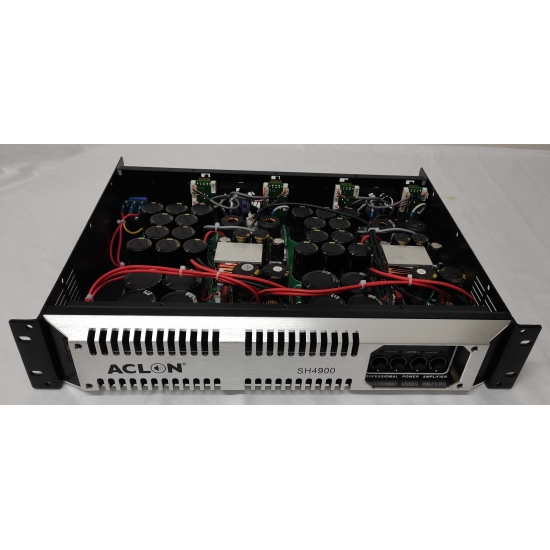

    Model SH4500 SH4800 SH4900 SH41200 SH1200 SH800 SH500
    Output Power 4 Channel 2 Channel
    8ΩStereo Power 4X500W 4X800W 4X800W 4X1200W 2X1200W 2X800W 2X500W
    4ΩStereo Power 4X800W 4X1250W 4X1250W 4X1800W 2X1800W 2X1250W 2X800W
    FrequencyResponse 20Hz-20kHz.(+/- 0.5dB)
    THD+N <0.04%    20Hz-20kHz.(8Ω)
    Signal-to-Noise Ratio >105 dB
    Damping factor >500
    Cross talk at1 kHz >70 dB
    Input Connectors 3-pin XLR, electronically balanced
    Output Connectors Speakon
    Class circuitry Class D
    Tour Class Protection DC, short circuit, over load, clip limit, over heat,
    Operating voltage 110V; 230V or customize
    Input impedance  Balance/20K     Unbalance /10K
    Dimensions (H×W×D) 2U: 88×485×355mm
    Packing dimension 565x140x560mm
    Net weight (kg) 7 kg


  • Application:

    Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
