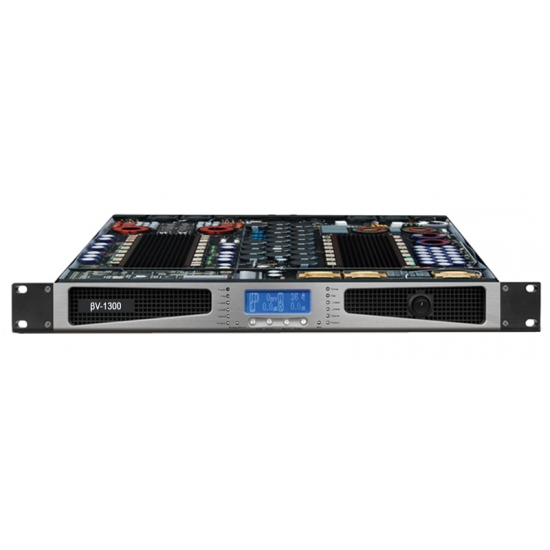

1300W DSP+LCD digital amplifier< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print
  • <<
    Product Model βV-1300
    Rated Output Power 8ohm(EIAJ THD=1%,1kHz) 2x1300W
    Rated Output Power 4ohm(EIAJ THD=1%,1kHz) 2x2300
    Rated Output Power 2ohm(EIAJ THD=1%,1kHz) 2x4000
    Maximum bridged output power 16ohm(EIAJ THD=1%,1kHz) 2600
    Maximum bridged output power 8ohm(EIAJ THD=1%,1kHz) 4600
    Maximum bridged output power 4ohm(EIAJ THD=1%,1kHz) 8000
    Maximum RMS voltage swing(THD=1%,1kHz) 101
    voltage gain(dB) 39.0
    Slew Rate(at 1kHz,LPF bypassed) 50V/us
    Input Sensitivity(at rated output power or voltage ,1kHz) 1Vrms
    THD+N (10% rated powertypical) 0.05%
    IMD-SMPTE  (10% rated powertypical) 0.05%
    DIM30  (10% rated powertypical) 0.05%
    Crosstalk (1kHztypical) -75
    Frequency Response10% rated power 0-2
    Input impedance(balanced) 20K
    Damping Factor (100Hz8Ω) ≥500
    Signal to Noise ratio(A weighted20Hz-20kHz) ≥105

    amplifier output DC protection, High frequency protection,

    Harmonic protection ,over temperature protection,

    overload protection

     LCD+DSP fuction  LCD on the front panel+DSP  fuction
    Power supply AC:100-240V(50-60Hz)
    Dimensions(WxDxH,mm) 483*370*44
    Net Weight (KG) 9KG
  • Feature:

    1. Class D circuit

    2. Lightweight, 9KG

    3. High reliability, work stable at 2ohm.

    4. Comprehensive protection: DC protect, short circuit protect etc

    5. Power supply AC: 100-240V

  • Theater places expand sound systems.

    Touring FOH system

    Audio & video presentations sound system

    Mobile or permanently live concert reinforcement
