TS15 500W full range loudspeaker< back

zoom in zoom out

move up move left move right move bottom

  • Specifications
  • Feature
  • Application
  • Download
  • Print

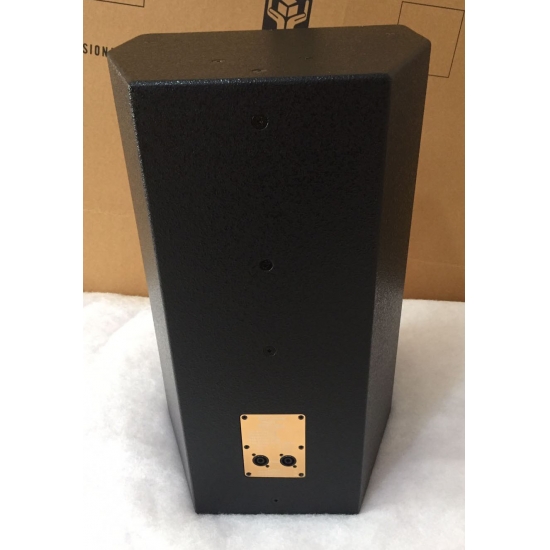

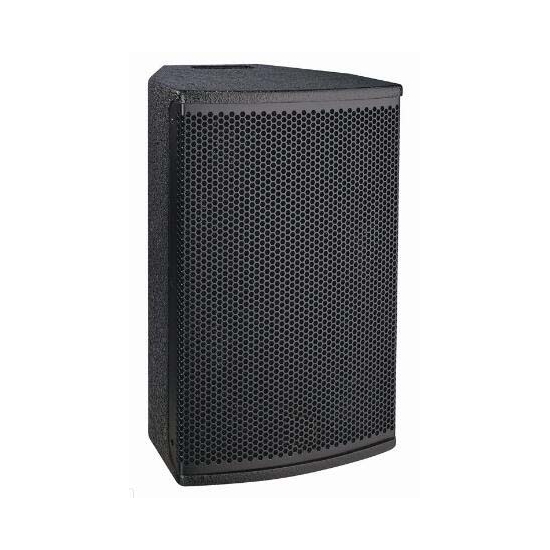

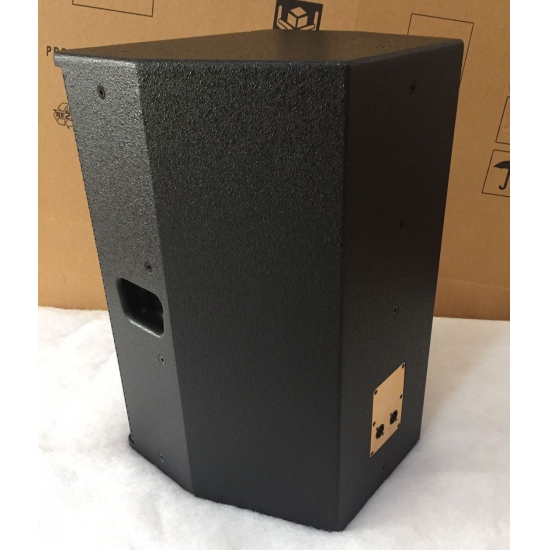

  • TS12, TS15 is 2-way full range loudspeaker

    plywood cabinet

    customized in ferrite woofer and driver

    high powerful, good sound, suit for church, wedding, club, disco, road show etc events


    Products Model:   TS12 TS15
    LF woofer unit  1 x 12" (φ75mm)   1 x 15" (φ75mm)
    HF  drivers  1 x 1.7"   1 x 3"
    Horn & Exit throat Size  1"   1.5"(38mm)
    Dispersion Angle (H * V)  80° X 50°    80° X 50°
    RMS / Program  400W   500W
    Peak power  800W /1200W   1000W 1500W
    Nominal MAX /Peak SPL  129dB   129dB
    Frequency Response( ±3dB)  42Hz - 20KHz    40Hz - 20KHz
    Crossover point  2.0  KHz     1.9  KHz
    Input  Connector   8 Ohms   8 Ohms
    Dimension  W*D*H (mm)  390×595×358   465×695×456
    Net Weight   (1pcs)  22kg     33kg


  • . Mid or Larger clubs, disco bars hotel and restaurants
    . Stadium Sports and mid. large exhibition spaces.
    . Theater places performance expand sound systems.
    . Audio & video presentations sound systems.
    . Fixed Installations system and Live sound reinforcement
  • Power amplifier and line array speaker manufacturer center

  • Power amplifier and line array speaker manufacturer center

Related Tags : plywood loudspeaker full range compact loudspeaker full range outdoor loudspeaker
